5985-01-418-9608

Waveguide Assembly

5985014189608 014189608 291000P1 R170FT-24-C3-C3-N 124688-24

An item consisting of one or more definite lengths of straight or formed, flexible or rigid, prefabricated hollow tubing of conductive material. The tubing has a predetermined cross section and is designed to guide or conduct high frequency electromagnetic energy through its interior. One or more ends are terminated. May include common mounting of a SWITCH, WAVE GUIDE, a DUMMY LOAD, ELECTRICAL and other components such as waveguide section, cable terminal chamber and the like. Excludes COUPLER, ROTARY, RADIO FREQUENCY; COUPLER, DIRECTIONAL; ADAPTER, WAVEGUIDE; and TUNER, WAVEGUIDE. View more Waveguide Assembly

Managed by United States

NSN Created on 9 Sep 1995

Data Last Changed
May 2023

NATO Update Count
3

NATO Data Quality

AAGR Style A5 for 5985-01-418-9608 1/2 — NSN 5985-01-418-9608 (Identification) 1/2

STYL Style B1 for 5985-01-418-9608 2/2 — NSN 5985-01-418-9608 (Identification) 2/2

Marketplace 5985-01-418-9608

Need Help?
Request a Quotation from participating marketplace vendors

FedMall

Updated Every 15 Minutes

5985-01-418-9608 BUY NE FedMall

Updated Every Day

5985-01-418-9608 RQST NE

Restrictions 5985-01-418-9608

5985-01-418-9608 is a Waveguide Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains Silver.

Import and Export 5985-01-418-9608

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5985-01-418-9608

US Air Force (FXGX)
Effective Date:: 1 Jul 2005
Former MOE Rule:: FXTX; AMC 1 AMSC C IMC Z IMCACTY SX

Approved Sources 5985-01-418-9608

Part Number
Manufacturer
Status
291000P1: 94117 - Bae Systems Information And (Active); Primary Buy; RNCC 3 RNVC 2 DAC A
R170FT-24-C3-C3-N: 06351 - Microwave Engineering Corporation (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
124688-24: 66544 - Frontgrade Technologies Inc. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
124688-24: 80006 - Litton Systems Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5

Datasheet 5985-01-418-9608

Characteristic
Specifications
FIIG: A073A0

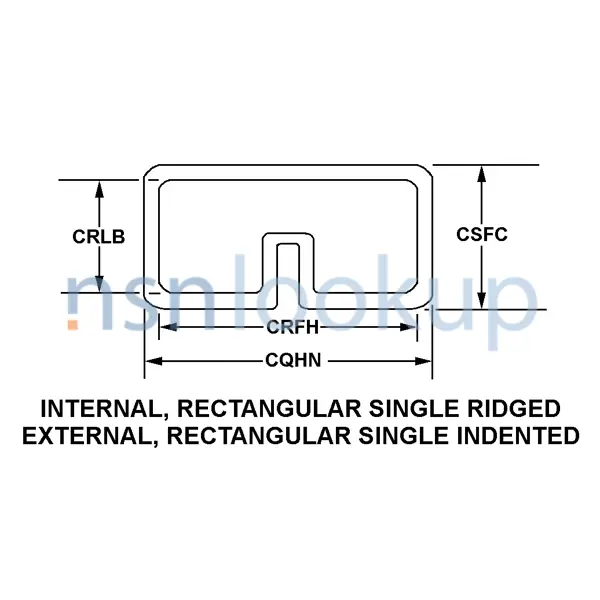

Cross-Sectional Shape Style [AAGR]: Internal, Rectangular Single Ridged External, Rectangular Single Indented
Flange Depth [AHTD]: 0.235 Inches Minimum All Flanges And 0.265 Inches Maximum All Flanges
Flange Inside Height [AHSY]: 0.321 Inches Nominal All Flanges
Flange Inside Width [AHSX]: 0.691 Inches Nominal All Flanges
Flange Quantity [AHSF]: 2
Flange Style [CTCJ]: Contact, Double Ridge Type All Flanges
Flange Outside Height [AHTA]: 1.360 Inches Minimum All Flanges And 1.390 Inches Maximum All Flanges
Flange Outside Width [AHSZ]: 1.360 Inches Minimum All Flanges And 1.390 Inches Maximum All Flanges
Flexibility [FLEX]: Flexible Single Tubing Segment
Material [MATT]: Copper Alloy Single Tubing Segment
Style Designator [STYL]: Straight Type
Precious Material [PRMT]: Silver
Precious Material And Location [PMLC]: Internal Surfaces Silver
Waveguide Inside Height [CRLB]: 0.321 Inches Nominal
Waveguide Inside Width [CRFH]: 0.691 Inches Nominal
Waveguide Length [CTFD]: 24.000 Inches Nominal
Waveguide Outside Height [CSFC]: 0.421 Inches Nominal
Waveguide Outside Width [CQHN]: 0.791 Inches Nominal
Surface Treatment [SFTT]: Silver Single Tubing Segment Inside Surfaces

Weapon Systems (WSDC) 5985-01-418-9608

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5985-01-418-9608

DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5985-01-418-9608

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Air Force (DF); EA; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2019: Department of the Air Force (DF); EA; Subscribe; 1

Similar Supply Items to 5985-01-418-9608

Freight Information 5985-01-418-9608

5985-01-418-9608 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 063520. A Sub NMFC of Z. It has a NMFC Description of WAVEGUIDE IN BOXES/CRATES. 5985-01-418-9608 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49770 which rates the freight between FCL and LCL. 5985-01-418-9608 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5985-01-418-9608 is not classified as a special type of cargo when transported by water. 5985-01-418-9608 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5985-01-418-9608

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; --; 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"; 85 to 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; --; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning; --; ASTM-D5118, Type CF, Class Domestic, Corrugated Fiberboard Box; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: Any Suitable Fiber Box
