5985-01-397-1719
Radio Frequency Transmission Line Switch
5985013971719 013971719 585R962H02
An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified). View more Radio Frequency Transmission Line Switch
November 2023
4
Marketplace 5985-01-397-1719
Request a Quotation from participating marketplace vendors
Related Documents 5985-01-397-1719 1+ Documents (More...)
United States (US) 4. 5985-01-397-1719 Marketplace Restrictions Approved Sources Datasheet Management
BUY NE FedMall Updated Every Day 5985-01-397-1719 RQST NE Related Documents 5985-01-397-1719 1+
Restrictions 5985-01-397-1719
5985-01-397-1719 is a Radio Frequency Transmission Line Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains gold.
Import and Export 5985-01-397-1719
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-01-397-1719
- US Air Force (FGGX)
- Effective Date:
- 1 Aug 2007
- Former MOE Rule:
- FGG5
Approved Sources 5985-01-397-1719
- Part Number
- Manufacturer
- Status
- 585R962H02
- Manufacturer
- 97942 - Northrop Grumman Systems Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 5985-01-397-1719
- Characteristic
- Specifications
- FIIG
- Specifications
- A158A0
- Actuator Operating Method [AKPC]
- Solid State

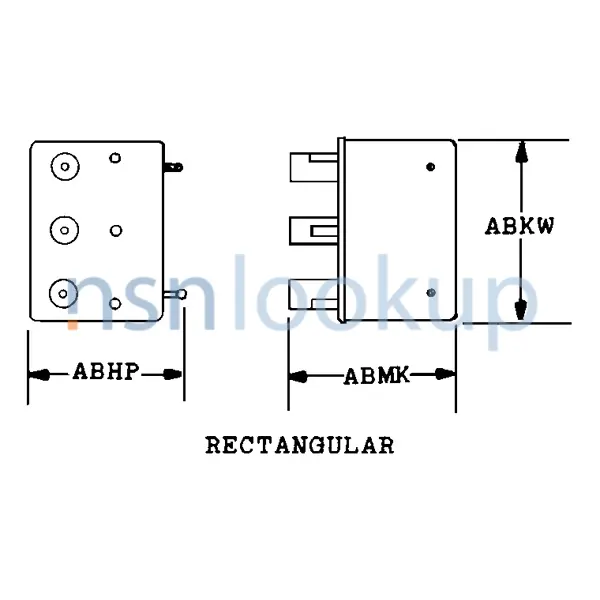

- Body Style [AAQL]
- Rectangular
- Coupling Position Quantity [AKRC]
- 2
- Material [MATT]
- Steel Corrosion Resisting Body
- Mounting Facility Type And Quantity [AXHR]
- 3 Bracket
- Precious Material And Location [PMLC]
- Connectors Gold
- Overall Height [ABKW]
- 1.270 Inches Nominal
- Overall Length [ABHP]
- 1.770 Inches Nominal
- Overall Width [ABMK]
- 1.500 Inches Nominal
- Voltage Standing Wave Ratio [AHTW]
- 1.50 Single
- Surface Treatment [SFTT]
- Chromate Body All Surfaces
- Switching Time [AKPP]
- 1.0 Milliseconds
- Terminal Type And Quantity [TTQY]
- 2 Pin And 2 Connector, Receptacle
Weapon Systems (WSDC) 5985-01-397-1719
DLA Procurement Analysis 5985-01-397-1719
- Last Stock Position:
- 2 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5985-01-397-1719
Similar Supply Items to 5985-01-397-1719
Freight Information 5985-01-397-1719
5985-01-397-1719 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5985-01-397-1719 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5985-01-397-1719 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5985-01-397-1719 is not classified as a special type of cargo when transported by water. 5985-01-397-1719 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Procurement History 5985-01-397-1719 1 Records
Contracting Technical Data File (CTDF) 5985-01-397-1719 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
