5985-01-394-9906
Radio Frequency Transmission Line Switch
5985013949906 013949906 SEM133D 400104
An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified). View more Radio Frequency Transmission Line Switch
November 2023
4
Marketplace 5985-01-394-9906
Request a Quotation from participating marketplace vendors
Related Documents 5985-01-394-9906 5+ Documents (More...)
United States (US) 4. 5985-01-394-9906 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5985-01-394-9906 RQST Updated Every Day 5985-01-394-9906 RQST NE Related
-006-5923 Pneumatic Impact Wrench 5130200065923,400104 374-6593 Part NumberManufacturerStatusM421-400104
Upgrade your Account Upgrade 5998-00-490-5766Circuit Card Assembly5998004905766 004905766SMC644055 400104
//www.nsnlookup.com /fsg-53/fsc-5340/fr 5340-14-374-6593 Access Cover 5340143746593143746593 M421-400104
99-608-3722 Roller Blind 2040996083722 996083722,400104 408-5136 Part NumberManufacturerStatusM496-400104
https//www.nsnlookup.com /fsg-53/fsc-5340/fr 5340-14-408-5136 Loop Clamp 5340144085136144085136 M496-400104
Hexagon Plain Nut 5310320175413 320175413 9165Identification Marker7690016439165 016439165NSWC-67-5-400104
Upgrade your Account Upgrade 7690-01-643-9165Identification Marker7690016439165 016439165NSWC-67-5-400104
Upgrade your Account Upgrade 7690-01-643-9165Identification Marker7690016439165 016439165NSWC-67-5-400104
Restrictions 5985-01-394-9906
5985-01-394-9906 is a Radio Frequency Transmission Line Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a US Munitions List Item and must be mutilated to scrap. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal. This item is sensitive to Electrostatic Discharge.
Import and Export 5985-01-394-9906
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-01-394-9906
- US Air Force (FUGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FUTX
- Canada (ZC01)
- Effective Date:
- 1 Mar 1996
Approved Sources 5985-01-394-9906
- Part Number
- Manufacturer
- Status
- SEM133D
- Manufacturer
- 99899 - Narda Holdings, Inc. (Active)
- Primary Buy
- Primary Buy
- 400104
- 66459 - Ael Industries Inc Cross Systems Div (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5985-01-394-9906
- Characteristic
- Specifications
- FIIG
- Specifications
- A158A0
- Frequency Rating [ACZB]
- 18.0 Gigahertz Nominal Single Frequency Operating
- Voltage Standing Wave Ratio [AHTW]
- 1.20 Single
- Actuator Operating Method [AKPC]
- Relay
- Switch Type [AEEA]
- Transfer
- Pole Quantity [AKPX]
- 3
- Switch Return Mechanism Type [AKPQ]
- Latching

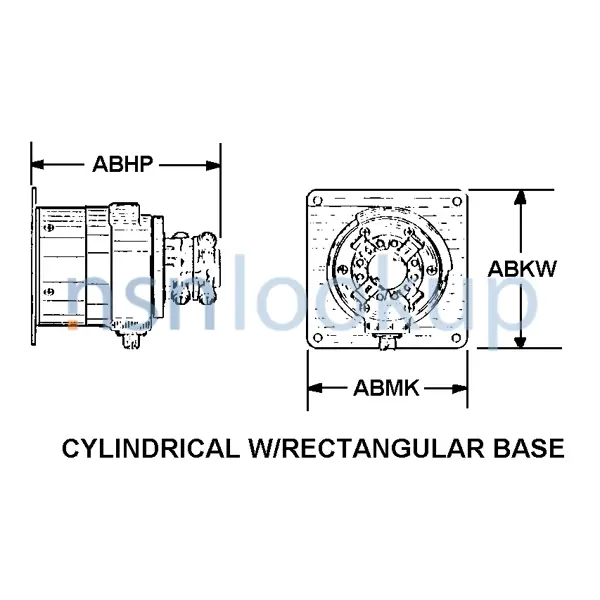

- Body Style [AAQL]
- Cylindrical W/Rectangular Base
- Overall Length [ABHP]
- 2.700 Inches Nominal
- Overall Height [ABKW]
- 1.750 Inches Nominal
- Overall Width [ABMK]
- 1.750 Inches Nominal
- Mounting Facility Type And Quantity [AXHR]
- 4 Unthreaded Hole
- Special Features [FEAT]
- Suppression Diodes; Ttl Logic
- End Item Identification [AGAV]
- Dats
Weapon Systems (WSDC) 5985-01-394-9906
DLA Procurement Analysis 5985-01-394-9906
- Last Stock Position:
- 10 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5985-01-394-9906
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SU
- AF SICA RESIDUAL MMAC-OO-ALC
- Price Validation Code:
- P
- The current standard price is the initial negotiated provisioned price.
This is the price paid by DoD for the item as the result of price negotiation of the Provisioned Item Order (PIO) or other initial negotiated price.
ZOP or Standard Price challenges are permissible but should be supported with adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
NATO Stock Numbers Related to 5985-01-394-9906
Freight Information 5985-01-394-9906
5985-01-394-9906 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5985-01-394-9906 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5985-01-394-9906 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5985-01-394-9906 is not classified as a special type of cargo when transported by water. 5985-01-394-9906 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5985-01-394-9906
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 5985-01-394-9906 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
