5985-01-387-3881
Electrical Dummy Load
5985013873881 013873881 460134 654VE7081-661
A specific electrical element or set of electrical elements that are connected together to form a fixed arrangement and used as a substitute load for terminating an electrical circuit. A dummy load contains all the essential electrical characteristics necessary to terminate the circuit but does not function in the same manner as the load which it replaces. Examples are resistors used to replace antennas, batteries, loudspeakers, or the like. Includes single port terminations of twin lead, coaxial and waveguide transmission lines as low power terminations of a section of a transmission system in a specified manner. Includes dummy loads when arranged in a group or bank. Excludes power absorbers. See also LOAD BANK, ELECTRICAL. View more Electrical Dummy Load
May 2023
3
Marketplace 5985-01-387-3881
Request a Quotation from participating marketplace vendors
Related Documents 5985-01-387-3881 5+ Documents (More...)
NE FedMall Updated Every Day 5985-01-387-3881 RQST NE Updated Every Day 5985-01-387-3881 RQST Updated
Every Day 5985-01-387-3881 RQST NE Related Documents 5985-01-387-3881 5+ Documents ( More... ) https
Electrical Dummy Load 5985013873881 013873881 a day Upgrade your Account Upgrade 5985-01-387 https
Electrical Dummy Load 5985013873881 013873881 Automatic Data Processing Printer 013885226 460134
Request a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 460134
Electrical Dummy Load 5985013873881 013873881 $1 a day Upgrade your Account Upgrade 5985-01-387
TEE,TUBE TO BOSS 17 EA NS Request Quotation Subscribe to View Vendor Details... 460134 TEE 45 EA NS
Electrical Dummy Load 5985013873881 013873881 $1 a day Upgrade your Account Upgrade 5985-01-387
Restrictions 5985-01-387-3881
5985-01-387-3881 is a Electrical Dummy Load that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5985-01-387-3881
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-01-387-3881
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
Approved Sources 5985-01-387-3881
- Part Number
- Manufacturer
- Status
- 654VE7081-661
- Manufacturer
- 66948 - L3harris Technologies, Inc. (Active)
- Primary Buy
- Primary Buy
- 460134
- 80006 - Litton Systems Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 460134
- 66544 - Frontgrade Technologies Inc. (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5985-01-387-3881
- Characteristic
- Specifications
- FIIG
- Specifications
- A19800
- Body Diameter [ABPM]
- 2.750 Inches Maximum
- Cooling Method [BFMF]
- Self-Cooled
- Frequency Range Rating [AFGQ]
- +1.200/+1.400 Gigahertz
- Operating Position [ARNH]
- All Positions
- Impedance Rating In Ohms [ACYW]
- 50.0 Nominal
- Power Rating [AJDB]
- 100.000 Kilowatts Peak And 250.000 Watts Average
- Overall Diameter [ADAV]
- 3.500 Inches Nominal
- Overall Length [ABHP]
- 11.000 Inches Maximum
- Voltage Standing Wave Ratio Frequency Range [AKNK]
- +1.200/+1.400 Gigahertz
- Voltage Standing Wave Ratio [AHTW]
- 1.20

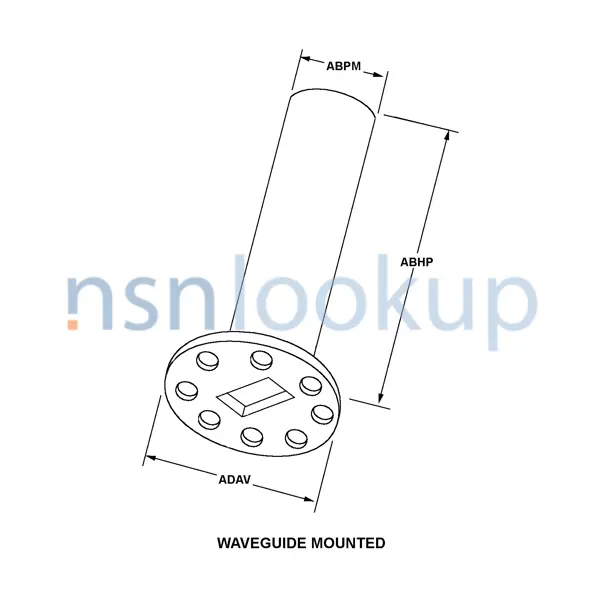

- Style Designator [STYL]
- Waveguide Mounted
- Termination Type [AKRZ]
- Connector Receptacle
DLA Procurement Analysis 5985-01-387-3881
Management Data 5985-01-387-3881
Similar Supply Items to 5985-01-387-3881
Freight Information 5985-01-387-3881
5985-01-387-3881 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062960. A Sub NMFC of X. It has a NMFC Description of REOSTATS/PARTS NOI. 5985-01-387-3881 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35140 which rates the freight between FCL and LCL. 5985-01-387-3881 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5985-01-387-3881 is not classified as a special type of cargo when transported by water. 5985-01-387-3881 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5985-01-387-3881
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 5985-01-387-3881 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
