5985-01-379-0925
Electrical Dummy Load
5985013790925 013790925 371AS285-1
A specific electrical element or set of electrical elements that are connected together to form a fixed arrangement and used as a substitute load for terminating an electrical circuit. A dummy load contains all the essential electrical characteristics necessary to terminate the circuit but does not function in the same manner as the load which it replaces. Examples are resistors used to replace antennas, batteries, loudspeakers, or the like. Includes single port terminations of twin lead, coaxial and waveguide transmission lines as low power terminations of a section of a transmission system in a specified manner. Includes dummy loads when arranged in a group or bank. Excludes power absorbers. See also LOAD BANK, ELECTRICAL. View more Electrical Dummy Load
January 2023
6
Marketplace 5985-01-379-0925
Request a Quotation from participating marketplace vendors
Related Documents 5985-01-379-0925 2+ Documents (More...)
RQST NE Updated Every Day 5985-01-379-0925 RQST Updated Every Day 5985-01-379-0925 RQST NE Related Documents
5985-01-379-0925 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5985/us 5985-01-379-0925
Electrical Dummy Load 5985013790925 013790925 www.nsnlookup.com /fsg-59/fsc-5985/us 5985-01-379
AssyUOMTechnical DocumentQuantative ExpressionDefense Logistics Agency (DS)IHSuitable Substitute 5985-01-379-0925
Restrictions 5985-01-379-0925
5985-01-379-0925 is a Electrical Dummy Load that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5985-01-379-0925
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-01-379-0925
- US Navy (N1R5)
- Effective Date:
- 1 Aug 1993
- Supplementary Receivers:
- GG
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2009
Approved Sources 5985-01-379-0925
- Part Number
- Manufacturer
- Status
- 371AS285-1
- Manufacturer
- 30003 - Naval Air Systems Command Managed (Active)
- Primary Buy
- Primary Buy
Datasheet 5985-01-379-0925
- Characteristic
- Specifications
- FIIG
- Specifications
- A19800
- End Item Identification [AGAV]
- H-1 Helo
- Overall Height [ABKW]
- 10.000 Inches Nominal
- Overall Length [ABHP]
- 15.000 Inches Nominal
- Overall Width [ABMK]
- 12.000 Inches Nominal

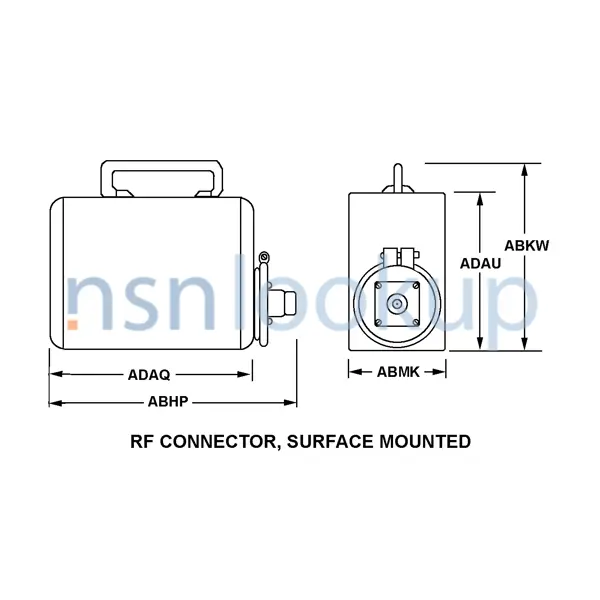

- Style Designator [STYL]
- Rf Connector, Surface Mounted
Similar Supply Items to 5985-01-379-0925
Freight Information 5985-01-379-0925
5985-01-379-0925 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062920. A Sub NMFC of B. It has a NMFC Description of REGULATORS INDUCTION/VOLTAGE SUB2. 5985-01-379-0925 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 5985-01-379-0925 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 35120 which rates the freight between FCL and LCL. 5985-01-379-0925 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5985-01-379-0925 is not classified as a special type of cargo when transported by water. 5985-01-379-0925 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5985-01-379-0925
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
- Storage Environment
- Heated General Purpose – Heated 40 F and above
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- 13.0" H x 13.0" W x 10.0" L
- --
- --
- Physical Protection
- Any Suitable Process
- 13.0" H x 13.0" W x 10.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-P-130, Laminated and Creped Wrapping Paper
- ASTM-D4727, Fiberboard used as Pads, Cells, Die-cuts or Sleeves
- Not Applicable
- ASTM-D5118, Type CF, Class Domestic, Corrugated Fiberboard Box
- --
- MIL-P-130, Laminated and Creped Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
