5985-01-372-1002

Waveguide Assembly

5985013721002 013721002 DAA3394P420-113

An item consisting of one or more definite lengths of straight or formed, flexible or rigid, prefabricated hollow tubing of conductive material. The tubing has a predetermined cross section and is designed to guide or conduct high frequency electromagnetic energy through its interior. One or more ends are terminated. May include common mounting of a SWITCH, WAVE GUIDE, a DUMMY LOAD, ELECTRICAL and other components such as waveguide section, cable terminal chamber and the like. Excludes COUPLER, ROTARY, RADIO FREQUENCY; COUPLER, DIRECTIONAL; ADAPTER, WAVEGUIDE; and TUNER, WAVEGUIDE. View more Waveguide Assembly

Managed by United States

NSN Created on 3 Mar 1993

Data Last Changed
January 2023

NATO Update Count
5

NATO Data Quality

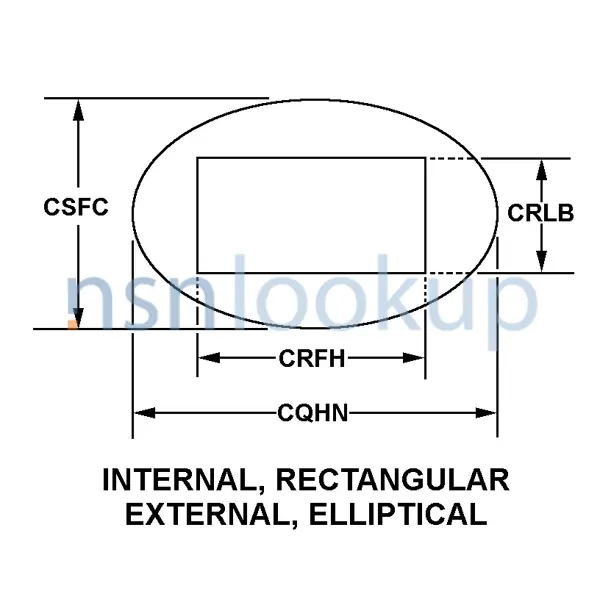

AAGR Style A19 for 5985-01-372-1002 1/2 — NSN 5985-01-372-1002 (Identification) 1/2

STYL Style B14 for 5985-01-372-1002 2/2 — NSN 5985-01-372-1002 (Identification) 2/2

Marketplace 5985-01-372-1002

Need Help?
Request a Quotation from participating marketplace vendors

Updated Every Day

5985-01-372-1002 RQST NE

Restrictions 5985-01-372-1002

IUID Required

5985-01-372-1002 is a Waveguide Assembly that does not have a nuclear hardened feature, but does have another critical feature or features such as tolerance, fit restriction or application. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains Silver.

Import and Export 5985-01-372-1002

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5985-01-372-1002

US Air Force (FNN5)
Effective Date:: 1 Nov 2010
Former MOE Rule:: FXX5; AMC 0 AMSC 0 IMC B

Approved Sources 5985-01-372-1002

Part Number
Manufacturer
Status
DAA3394P420-113: 1W025 - Northrop Grumman Systems Corp (Active); Primary Buy; RNCC 3 RNVC 2 DAC 3

Datasheet 5985-01-372-1002

Characteristic
Specifications
FIIG: A073A0
Style Designator [STYL]: Five Bend Type
Waveguide Length [CTFD]: 8.622 Inches Nominal
Cross-Sectional Shape Style [AAGR]: Internal, Rectangular External, Elliptical
Flexibility [FLEX]: Flexible All Tubing Segment
Tubing Wall Construction Style [AHRV]: Seamless Single Tubing Segment
Material [MATT]: Copper Alloy All Tubing Segment
Surface Treatment [SFTT]: Silver Single Tubing Segment All Surfaces
Flange Quantity [AHSF]: 2
Flange Style [CTCJ]: Cover Type First Flange
Flange Style [CTCJ]: Contact Type Second Flange
Special Features [FEAT]: B-2 Radar System Peculiar Critical Elements
Criticality Code Justification [CRTL]: Feat
End Item Identification [AGAV]: Pacer Special
