5985-01-250-4902

Radio Frequency Transmission Line Switch

5985012504902 012504902 11461762

An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified). View more Radio Frequency Transmission Line Switch

Managed by United States

NSN Created on 3 Mar 1987

Data Last Changed
November 2023

NATO Update Count
15

NATO Data Quality

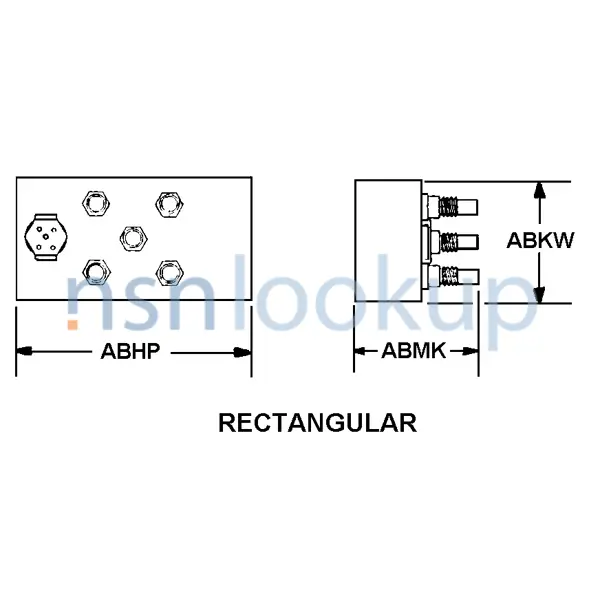

AAQL Style 31B for 5985-01-250-4902 1/1 — NSN 5985-01-250-4902 (Identification) 1/1

Marketplace 5985-01-250-4902

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

5985-01-250-4902 SWITCH,RADIO FREQUENCY TRANSMISSION LINE RQST NS

Updated Every Day

5985-01-250-4902 RQST NE

Restrictions 5985-01-250-4902

5985-01-250-4902 is a Radio Frequency Transmission Line Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.

Import and Export 5985-01-250-4902

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5985-01-250-4902

US Army (A918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A196
Supplementary Receivers:: BD; AMC 1 AMSC G IMC Z IMCACTY BD

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Dec 2010

Greece (ZU01)
Effective Date:: 1 May 2008

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Apr 1991

Approved Sources 5985-01-250-4902

Part Number
Manufacturer
Status
11461762: 18876 - Us Army Aviation And Missile Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 1
11461762: 62165 - Arrowsmith Shelburne Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6

Datasheet 5985-01-250-4902

Characteristic
Specifications
FIIG: A158A0
End Item Identification [AGAV]: 1430-01-087-6337
Body Style [AAQL]: Rectangular
Coaxial Connector Series Designation [AHUC]: Bnc
Coupling Position Quantity [AKRC]: 3
Operating Temp Range [AFGA]: -45.6/+71.0 Deg Celsius
Rf Power Handling Capability [AKNF]: 100.0 Watts Average 1St
Rf Power Handling Capability [AKNF]: 3.0 Kilowatts Peak 2Nd
Overall Height [ABKW]: 2.000 Inches Nominal
Overall Length [ABHP]: 1.500 Inches Nominal
Overall Width [ABMK]: 2.190 Inches Nominal
Switch Operation Sequence [AKPN]: Breaks Before Makes
Switch Type [AEEA]: Transfer
Test Data Document [TEST]: 18876-11461762 Drawing (This Is The Basic Governing Drawing, Such As A Contractor Drawing, Original Equipment Manufacturer Drawing, Etc.; Excludes Any Specification, Standard Or Other Document That May Be Referenced In A Basic Governing Drawing)
