Fixed Attenuator
5985012499581 012499581 P-ATTL-1001
A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match. View more Fixed Attenuator
May 2023
6
Marketplace 5985-01-249-9581
Request a Quotation from participating marketplace vendors
Related Documents 5985-01-249-9581 1+ Documents (More...)
Every Day 5985-01-249-9581 RQST NE Related Documents 5985-01-249-9581 1+ Documents ( More... ) https
//www.nsnlookup.com /fsg-59/fsc-5985/us 5985-01-249-9581 Fixed Attenuator 5985012499581012499581 P-ATTL
Restrictions 5985-01-249-9581
5985-01-249-9581 is a Fixed Attenuator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5985-01-249-9581
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-01-249-9581
- US Army (A918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- CL
Approved Sources 5985-01-249-9581
- Part Number
- Manufacturer
- Status
- P-ATTL-1001
- Manufacturer
- 0N8W8 - Crane Electronics, Inc. (Active)
- Primary Buy
- Primary Buy
- P-ATTL-1001
- 32252 - Signal Technology Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5985-01-249-9581
- Characteristic
- Specifications
- FIIG
- Specifications
- A20000
- Application Design [AAFS]
- Transmission Line

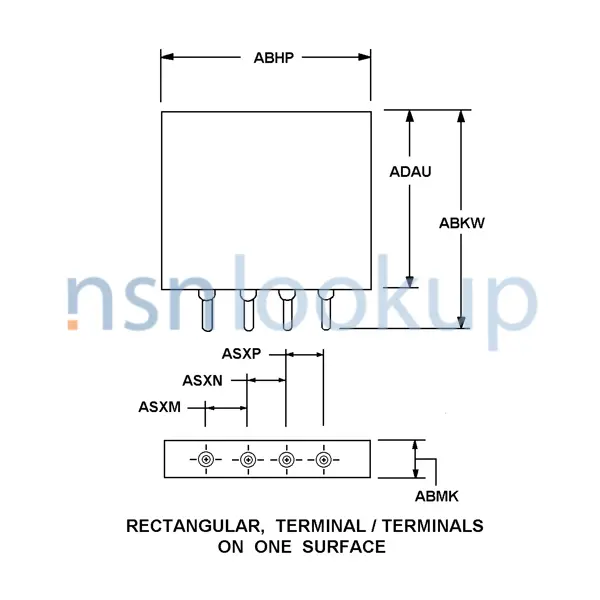

- Body Height [ADAU]
- 0.250 Inches Nominal
- Body Material [AAFZ]
- Brass, Qq-B-613, Comp 2, 1/2 Hard
- Body Style [AAQL]
- Rectangular, Terminal/Terminals On One Surface
- Body Surface Treatment [ABEM]
- Nickel Plated Or Tin Plated
- Center To Center Distance Between First And Second Terminals [ASXM]
- 0.250 Inches Nominal
- Center To Center Distance Between Second And Third Terminals [ASXN]
- 0.250 Inches Nominal
- Center To Center Distance Between Third And Fourth Terminals [ASXP]
- 0.250 Inches Nominal
- Frequency Range [BNGR]
- 30.000 Megahertz Minimum And 88.000 Megahertz Maximum
- Mounting Method [AXGY]
- Plug-In
- Operating Temp Range [AFGA]
- -30.0/+85.0 Deg Celsius
- Output Impedance Rating In Ohms [AHTZ]
- 50.0
- Input Impedance Rating In Ohms [AHTY]
- 50.0
- Overall Height [ABKW]
- 0.620 Inches Nominal
- Overall Length [ABHP]
- 1.000 Inches Nominal
- Overall Width [ABMK]
- 1.000 Inches Nominal
- Special Features [FEAT]
- Seven Pins For Ground
- Voltage Standing Wave Ratio Frequency Range [AKNK]
- +30.0/+88.0 Megahertz
- Voltage Standing Wave Ratio [AHTW]
- 1.80
- Terminal Type And Quantity [BBHS]
- 12 Pin
