5985-01-210-5392
Radio Frequency Transmission Line Switch
5985012105392 012105392 95-00358-001
An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified). View more Radio Frequency Transmission Line Switch
November 2023
4
Marketplace 5985-01-210-5392
Request a Quotation from participating marketplace vendors
Related Documents 5985-01-210-5392 1+ Documents (More...)
United States (US) 4. 5985-01-210-5392 Marketplace Restrictions Approved Sources Datasheet Management
BUY NE FedMall Updated Every Day 5985-01-210-5392 RQST NE Related Documents 5985-01-210-5392 1+
Restrictions 5985-01-210-5392
5985-01-210-5392 is a Radio Frequency Transmission Line Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5985-01-210-5392
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-01-210-5392
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
Approved Sources 5985-01-210-5392
- Part Number
- Manufacturer
- Status
- 95-00358-001
- Manufacturer
- 00724 - Raytheon Company (Active)
- Primary Buy
- Primary Buy
Datasheet 5985-01-210-5392
- Characteristic
- Specifications
- FIIG
- Specifications
- A158A0
- Actuator Operating Method [AKPC]
- Solid State

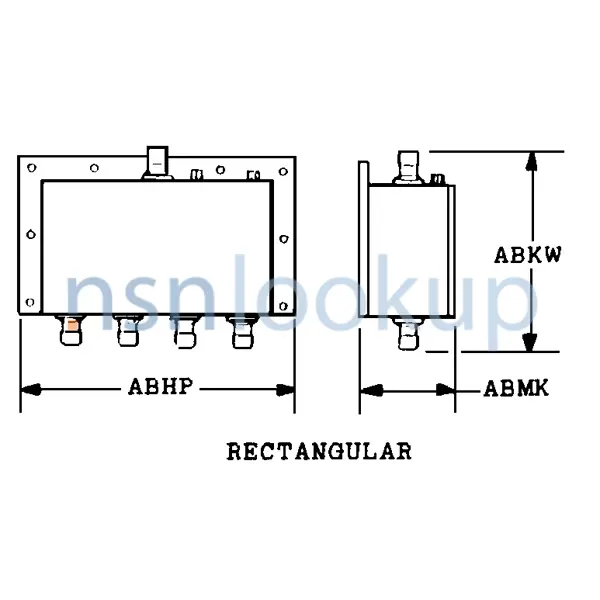

- Body Style [AAQL]
- Rectangular
- Coupling Position Quantity [AKRC]
- 5
- Material [MATT]
- Metal Body
- Mounting Facility Type And Quantity [AXHR]
- 4 Unthreaded Hole
- Overall Length [ABHP]
- 1.918 Inches Nominal
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.099 Inches Minimum And 0.108 Inches Maximum
- Terminal Type And Quantity [TTQY]
- 5 Receptacle, Coaxial And 2 Tab, Solder Lug
Weapon Systems (WSDC) 5985-01-210-5392
DLA Procurement Analysis 5985-01-210-5392
Management Data 5985-01-210-5392
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5985-01-210-5392
Freight Information 5985-01-210-5392
5985-01-210-5392 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5985-01-210-5392 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5985-01-210-5392 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5985-01-210-5392 is not classified as a special type of cargo when transported by water. 5985-01-210-5392 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5985-01-210-5392
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- --
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
