5985-01-206-9445
Waveguide Adapter
5985012069445 012069445 185BC 185AC
An item designed to establish the necessary accommodations to connect a waveguide to a coaxial line, or to connect two or more terminated waveguides whose physical design does not normally allow connection. View more Waveguide Adapter
August 2023
4
Marketplace 5985-01-206-9445
Request a Quotation from participating marketplace vendors
Related Documents 5985-01-206-9445 2+ Documents (More...)
(Identification) 1/2 NSN 5985-01-206-9445 (Identification) 2/2 - - 1.
United States (US) 4. 5985-01-206-9445 Marketplace Restrictions Approved Sources Datasheet Management
Day 5985-21-875-7382 RQST NE Related Documents https//www.nsnlookup.com /fsg-59/fsc-5985/us 5985-01-206-9445
Waveguide Adapter 5985012069445 012069445 a day Upgrade your Account Upgrade 5985-01-206-9445Waveguide
Restrictions 5985-01-206-9445
5985-01-206-9445 is a Waveguide Adapter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5985-01-206-9445
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-01-206-9445
- US Coast Guard (C911)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- C007
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTHD
- Brazil (YA01)
- Effective Date:
- 1 Jul 2001
Approved Sources 5985-01-206-9445
- Part Number
- Manufacturer
- Status
- 185BC
- Manufacturer
- 84147 - Andrew Llc (Active)
- Primary Buy
- Primary Buy
- 185AC
- 84147 - Andrew Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5985-01-206-9445
- Characteristic
- Specifications
- FIIG
- Specifications
- A073A0
- Adapter Length [BBPN]
- 4.750 Inches Nominal

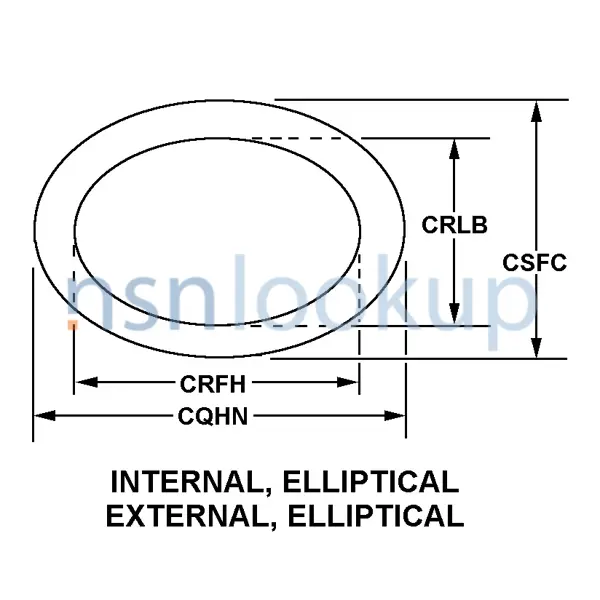

- Cross-Sectional Shape Style [AAGR]
- Internal, Elliptical External, Elliptical
- Flange Connecting Hole Diameter [AHTN]
- 0.169 Inches Minimum Second Flange All Connection Facilities
- Flange Depth [AHTD]
- 0.423 Inches Minimum First Flange And 0.453 Inches Maximum First Flange0.423 Inches Minimum Second Flange And 0.453 Inches Maximum Second Flange
- Flange Connecting Facility And Quantity [CSQT]
- 4 Threaded Hole First Flange All Connection Facilities4 Unthreaded Hole Second Flange All Connection Facilities
- Flange Inside Height [AHSY]
- 0.396 Inches Minimum First Flange And 0.404 Inches Maximum First Flange0.503 Inches Minimum Second Flange
- Flange Inside Width [AHSX]
- 0.896 Inches Minimum First Flange And 0.904 Inches Maximum First Flange1.003 Inches Minimum Second Flange
- Flange Inside Diameter [AHTB]
- 1.406 Inches Minimum First Flange And 1.437 Inches Maximum First Flange
- Flange Quantity [AHSF]
- 2
- Flange Style [CTCJ]
- Choke Type First Flangecover Type Second Flange
- Flange Outside Height [AHTA]
- 1.610 Inches Minimum First Flange And 1.640 Inches Maximum First Flange1.610 Inches Minimum Second Flange And 1.640 Inches Maximum Second Flange
- Flange Outside Width [AHSZ]
- 1.610 Inches Minimum First Flange And 1.640 Inches Maximum First Flange1.610 Inches Minimum Second Flange And 1.640 Inches Maximum Second Flange
- Fsc Application Data [ZZZV]
- Radar Equipment
- Material [MATT]
- Copper Alloy All Tubing Segment And Flange
- Nominal Thread Size [CQJX]
- 0.164 Inches First Flange All Connection Facilities
- Style Designator [STYL]
- Waveguide To Waveguide
- Special Features [FEAT]
- Frequency Range 8.5 To 9.8 Ghz
- Tubing Wall Construction Style [AHRV]
- Spiral Seam Single Tubing Segment
- Voltage Standing Wave Ratio [AHTW]
- 1.17
- Waveguide Outside Height [CSFC]
- 0.900 Inches Nominal
- Waveguide Outside Width [CQHN]
- 1.320 Inches Nominal
- Thread Class [AAJD]
- Sb First Flange All Connection Facilities
- Thread Direction [AAJF]
- Right-Hand First Flange All Connection Facilities
- Thread Series Designator [THSD]
- Unc First Flange All Connection Facilities
Weapon Systems (WSDC) 5985-01-206-9445
DLA Procurement Analysis 5985-01-206-9445
- Last Stock Position:
- 12 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5985-01-206-9445
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- EH
- ELECTRONIC COMPONENTS
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5985-01-206-9445
Freight Information 5985-01-206-9445
5985-01-206-9445 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 063520. A Sub NMFC of Z. It has a NMFC Description of WAVEGUIDE IN BOXES/CRATES. 5985-01-206-9445 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49770 which rates the freight between FCL and LCL. 5985-01-206-9445 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5985-01-206-9445 is not classified as a special type of cargo when transported by water. 5985-01-206-9445 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
