5985-01-164-0348
Radio Frequency Transmission Line Switch
5985011640348 011640348 SR-6C-D 45182-0006
An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified). View more Radio Frequency Transmission Line Switch
November 2023
8
Marketplace 5985-01-164-0348
Request a Quotation from participating marketplace vendors
Related Documents 5985-01-164-0348 1+ Documents (More...)
RQST NE Updated Every Day 5985-01-164-0348 RQST Updated Every Day 5985-01-164-0348 RQST NE Related Documents
5985-01-164-0348 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5985/us 5985-01-164-0348
Restrictions 5985-01-164-0348
5985-01-164-0348 is a Radio Frequency Transmission Line Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5985-01-164-0348
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-01-164-0348
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
- Australia (ZA01)
- Effective Date:
- 1 Oct 2000
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5985-01-164-0348
- Part Number
- Manufacturer
- Status
- SR-6C-D
- Manufacturer
- 12598 - Rlc Electronics, Inc (Active)
- Primary Buy
- Primary Buy
- 45182-0006
- KC1S0 - Ultra Ewst Limited (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5985-01-164-0348
- Characteristic
- Specifications
- FIIG
- Specifications
- A158A0
- Actuator Current Type And Rating In Amps [AKPE]
- 0.15 Dc Nominal
- Actuator Voltage In Volts [AKPJ]
- 28.0 Nominal

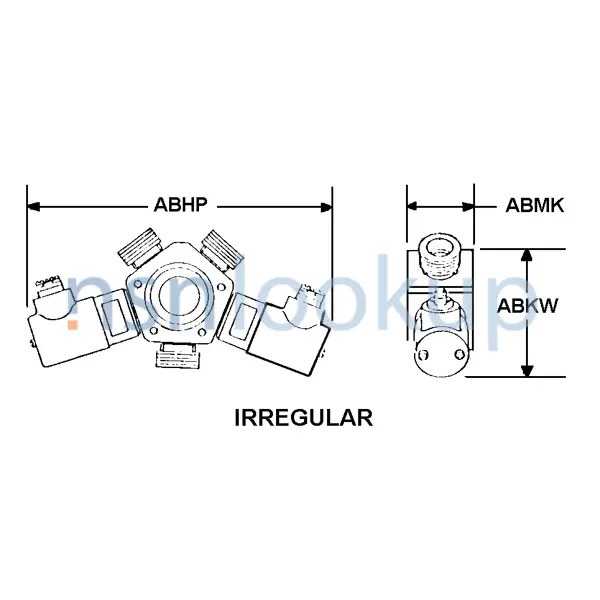

- Body Style [AAQL]
- Irregular
- Coaxial Connector Series Designation [AHUC]
- Sma
- Connector End Design [AHUD]
- Female
- Coupling Position Quantity [AKRC]
- 6
- Frequency Rating [ACZB]
- 0.0 Gigahertz Minimum And 4.0 Gigahertz Maximum 1St Frequency Voltage Standing Wave Ratio
- Frequency Rating [ACZB]
- 12.4 Gigahertz Minimum And 18.0 Gigahertz Maximum 3Rd Frequency Voltage Standing Wave Ratio
- Frequency Rating [ACZB]
- 4.0 Gigahertz Minimum And 12.4 Gigahertz Maximum 2Nd Frequency Voltage Standing Wave Ratio
- Pole Quantity [AKPX]
- 1
- Overall Height [ABKW]
- 1.750 Inches Nominal
- Overall Length [ABHP]
- 2.050 Inches Nominal
- Overall Width [ABMK]
- 1.750 Inches Nominal
- Throw Quantity [AKPY]
- 1
- Switch Operation Sequence [AKPN]
- Breaks Before Makes
- Switch Return Mechanism Type [AKPQ]
- Fail-Safe
- Switch Type [AEEA]
- Nontransfer
- Switching Time [AKPP]
- 15.0 Milliseconds
- Terminal Type And Quantity [TTQY]
- 6 Tab, Solder Lug
Weapon Systems (WSDC) 5985-01-164-0348
DLA Procurement Analysis 5985-01-164-0348
- Last Stock Position:
- 0 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5985-01-164-0348
Similar Supply Items to 5985-01-164-0348
Freight Information 5985-01-164-0348
5985-01-164-0348 has freight characteristics managed by Germany.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5985-01-164-0348 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5985-01-164-0348 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5985-01-164-0348 is not classified as a special type of cargo when transported by water. 5985-01-164-0348 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5985-01-164-0348
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 5985-01-164-0348 8 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7MC23V8461
- 31 Aug 2023
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPE7M123V8293
- 04 Aug 2023
- Subscribe
- 4
- Subscribe
- Subscribe
- Subscribe
- SPE7M123V3283
- 13 Jan 2023
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPE7M518V6065
- 14 Mar 2018
- Subscribe
- 3
- Subscribe
- Subscribe
- Subscribe
- SPE7M518V4339
- 07 Feb 2018
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPE7M518V1450
- 08 Nov 2017
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPE7M517P3201
- 14 Dec 2016
- Subscribe
- 3
- Subscribe
- Subscribe
- Subscribe
- SPE7M516M9309
- 28 Jun 2016
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
