5985-01-150-3644
Radio Frequency Transmission Line Switch
5985011503644 011503644 G330166-1 100C0611-26
An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified). View more Radio Frequency Transmission Line Switch
November 2023
14
Marketplace 5985-01-150-3644
Request a Quotation from participating marketplace vendors
Related Documents 5985-01-150-3644 1+ Documents (More...)
United States (US) 4. 5985-01-150-3644 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5985-01-150-3644 RQST Updated Every Day 5985-01-150-3644 RQST NE Related Documents
Restrictions 5985-01-150-3644
5985-01-150-3644 is a Radio Frequency Transmission Line Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5985-01-150-3644
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-01-150-3644
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Dec 1997
- Turkey (ZW01)
- Effective Date:
- 1 Feb 2015
Approved Sources 5985-01-150-3644
- Part Number
- Manufacturer
- Status
- G330166-1
- Manufacturer
- 24930 - L3harris Technologies, Inc (Active)
- Primary Buy
- Primary Buy
- G330166-1
- T6976 - Pegasus Savunma Sanayi Ve Ticaret (Active)
- Secondary Buy
- Secondary Buy
- 100C0611-26
- 28983 - Daico Industries, Inc. (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5985-01-150-3644
- Characteristic
- Specifications
- FIIG
- Specifications
- A158A0
- Actuator Operating Method [AKPC]
- Relay

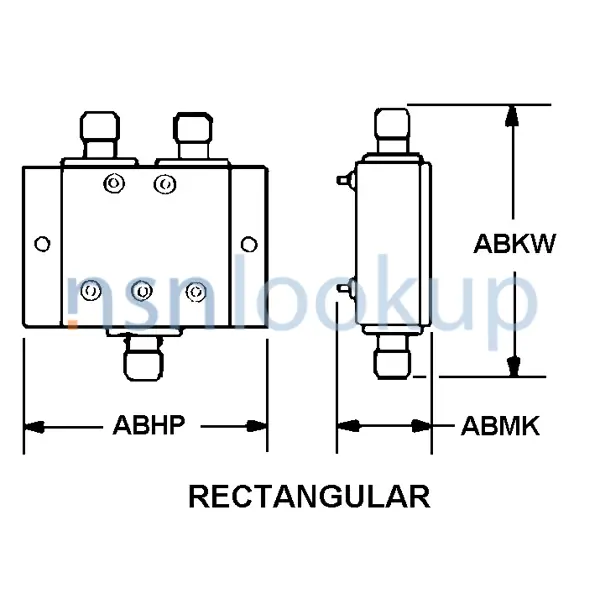

- Body Style [AAQL]
- Rectangular
- Coaxial Connector Series Designation [AHUC]
- Sma
- Connector End Design [AHUD]
- Female
- Coupling Position Quantity [AKRC]
- 3
- Minimum Crosstalk Rating In Decibels [AKNV]
- 50.0 Single
- Frequency Rating [ACZB]
- 0.0 Megahertz Minimum And 450.0 Megahertz Maximum Single Frequency Operating
- Insertion Loss In Decibels [AHTX]
- 0.60 Single
- Pole Quantity [AKPX]
- 1
- Overall Height [ABKW]
- 2.060 Inches Maximum
- Overall Length [ABHP]
- 1.500 Inches Nominal
- Overall Width [ABMK]
- 0.625 Inches Nominal
- Throw Quantity [AKPY]
- 2
- Voltage Standing Wave Ratio [AHTW]
- 1.40 Single
- Switch Operation Sequence [AKPN]
- Breaks Before Makes
- Switch Return Mechanism Type [AKPQ]
- Latching
- Switch Type [AEEA]
- Nontransfer
- Switching Time [AKPP]
- 5.0 Milliseconds
- Terminal Type And Quantity [TTQY]
- 3 Tab, Solder Lug And 3 Receptacle, Coaxial
