5985-01-113-8326
Radio Frequency Transmission Line Switch
5985011138326 011138326 8761B-105-205-305 8761BOPTION555 165339-1 8761B OPTION 555 8761B555
An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified). View more Radio Frequency Transmission Line Switch
November 2023
25
Marketplace 5985-01-113-8326
Request a Quotation from participating marketplace vendors
Related Documents 5985-01-113-8326 5+ Documents (More...)
RQST NE Updated Every Day 5985-01-113-8326 RQST Updated Every Day 5985-01-113-8326 RQST NE Related Documents
5985-01-113-8326 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5985/us 5985-01-113-8326
Radio Frequency Transmission Line Switch Transmission Line Switch5985011138326 011138326 https/
AssyUOMTechnical DocumentQuantative ExpressionDefense Logistics Agency (DS)IAConsolidated With 5985-01-113-8326
Radio Frequency Transmission Line Switch 8326Radio Frequency Transmission Line Switch5985011138326 011138326
8761B-105-205-305 8761BOPTION555 165339 165339 RNVC 9 DAC 5 8761B555 28480 - Hewlett-Packard Company
Radio Frequency Transmission Line Switch 8326Radio Frequency Transmission Line Switch5985011138326 011138326
8761B-105-205-305 8761BOPTION555 165339 Packing Assembly 5330994373845994373845 Assembly4720331805905
/fsg-43/fsc-4330/us
Radio Frequency Transmission Line Switch 8326Radio Frequency Transmission Line Switch5985011138326 011138326
8761B-105-205-305 8761BOPTION555 165339 5330/uk 5330-99-437-3845 Packing Assembly 5330994373845 994373845
Restrictions 5985-01-113-8326
5985-01-113-8326 is a Radio Frequency Transmission Line Switch that does not have a nuclear hardened feature, but does have another critical feature or features such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a US Munitions List Item and must be mutilated to scrap. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5985-01-113-8326
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-01-113-8326
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTKE
- Poland (WP01)
- Effective Date:
- 1 Mar 2007
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5985-01-113-8326
- Part Number
- Manufacturer
- Status
- 8761B-105-205-305
- Manufacturer
- 28480 - Hewlett-Packard Company (Active)
- Primary Buy
- Primary Buy
- 8761B-105-205-305
- 1LQK8 - Keysight Technologies, Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 8761B OPTION 555
- 28480 - Hewlett-Packard Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 8761B555
- 28480 - Hewlett-Packard Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 165339-1
- 37695 - Raytheon Company (Active)
- Vendor Drawing
- Vendor Drawing
- 8761B-105-205-305
- 7ZXR5 - Keysight Technologies Inc (Active)
- Advisory Reference
- Advisory Reference
- 8761BOPTION555
- 0BKN6 - Hewlett-Packard Co Cupertino Mfg Opn (Obsolete)
- Advisory Reference
- Advisory Reference
Datasheet 5985-01-113-8326
- Characteristic
- Specifications
- FIIG
- Specifications
- A158A0
- End Item Identification [AGAV]
- Aircraft, Harrier Av-8B; Ta-4J Aircraft; Support Equipment, F-16 Aircraft
- Actuator Current Type And Rating In Amps [AKPE]
- 0.065 Dc Nominal
- Actuator Voltage In Volts [AKPJ]
- 26.0 Nominal

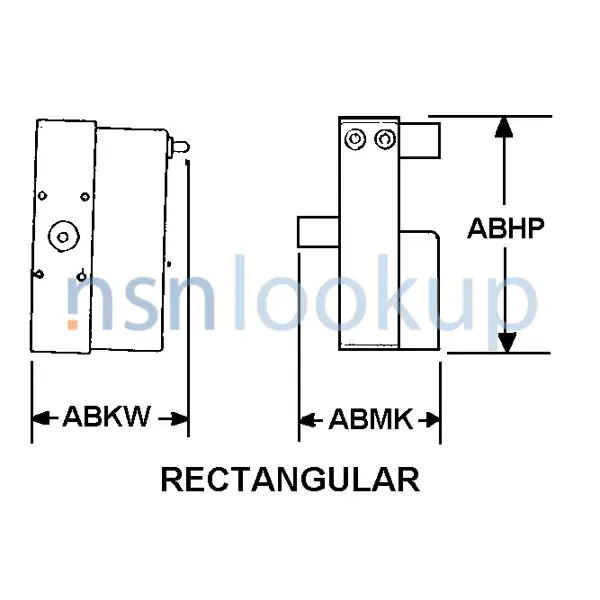

- Body Style [AAQL]
- Rectangular
- Coaxial Connector Series Designation [AHUC]
- Sma
- Connector End Design [AHUD]
- Female
- Criticality Code Justification [CRTL]
- Feat
- Coupling Position Quantity [AKRC]
- 3
- Operating Temp Range [AFGA]
- -25.0/+70.0 Deg Celsius
- Frequency Rating [ACZB]
- 0.0 Gigahertz Minimum And 12.4 Gigahertz Maximum 1St Frequency Insertion Loss Reference
- Frequency Rating [ACZB]
- 0.0 Gigahertz Minimum And 12.4 Gigahertz Maximum 1St Frequency Voltage Standing Wave Ratio
- Frequency Rating [ACZB]
- 0.0 Gigahertz Minimum And 18.0 Gigahertz Maximum 2Nd Frequency Insertion Loss Reference
- Frequency Rating [ACZB]
- 0.0 Gigahertz Minimum And 18.0 Gigahertz Maximum 2Nd Frequency Voltage Standing Wave Ratio
- Pole Quantity [AKPX]
- 1
- Overall Height [ABKW]
- 2.012 Inches Nominal
- Overall Length [ABHP]
- 2.012 Inches Nominal
- Overall Width [ABMK]
- 1.455 Inches Nominal
- Special Features [FEAT]
- Weapon System Essential
- Throw Quantity [AKPY]
- 2
- Switch Operation Sequence [AKPN]
- Breaks Before Makes
- Switch Return Mechanism Type [AKPQ]
- Latching
- Switch Type [AEEA]
- Nontransfer
- Switching Time [AKPP]
- 50.0 Milliseconds
- Terminal Type And Quantity [TTQY]
- 3 Receptacle, Coaxial And 2 Turret
Weapon Systems (WSDC) 5985-01-113-8326
DLA Procurement Analysis 5985-01-113-8326
- Last Stock Position:
- 2 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5985-01-113-8326
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5985-01-113-8326
Freight Information 5985-01-113-8326
5985-01-113-8326 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5985-01-113-8326 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5985-01-113-8326 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5985-01-113-8326 is not classified as a special type of cargo when transported by water. 5985-01-113-8326 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5985-01-113-8326
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 5985-01-113-8326 1 Records
Contracting Technical Data File (CTDF) 5985-01-113-8326 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
