5985-01-096-6332
Radio Frequency Transmission Line Switch
5985010966332 010966332 055682 JDS 329-11230-11 329-11230-11 933D055682
An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified). View more Radio Frequency Transmission Line Switch
May 2023
6
Marketplace 5985-01-096-6332
Request a Quotation from participating marketplace vendors
Updated Every 15 Minutes
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5985-01-096-6332 5+ Documents (More...)
Every Day 5985-01-096-6332 RQST NE Updated Every Day 5985-01-096-6332 RQST Updated Every Day 5985-01
Every Day 5985-01-096-6332 RQST Updated Every Day 5985-01-096-6332 RQST NE Related Documents 5985
Every Day 5985-01-096-6332 RQST Updated Every Day 5985-01-096-6332 RQST NE Related Documents 5985
Radio Frequency Transmission Line Switch United States (US) 4. 5985-01-096-6332 Marketplace Restrictions
$1 a day Upgrade your Account Upgrade 5930-01-259-6146Sensitive Switch5930012596146 012596146 090-055682
055682 $1 a day Upgrade your Account Upgrade 5930-01-259-6146Sensitive Switch5930012596146 012596146
$1 a day Upgrade your Account Upgrade 5930-01-259-6146Sensitive Switch5930012596146 012596146 090-055682
055682 $1 a day Upgrade your Account Upgrade 5930-01-259-6146Sensitive Switch5930012596146 012596146
https//www.nsnlookup.com /fsg-30/fsc-3040/us 3040-01-673-5455 Body Hub 3040016735455 016735455,055682 055682
$1 a day Upgrade your Account Upgrade 5930-01-259-6146Sensitive Switch5930012596146 012596146 090-055682
Restrictions 5985-01-096-6332
5985-01-096-6332 is a Radio Frequency Transmission Line Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a US Munitions List Item and must be mutilated to scrap. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5985-01-096-6332
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-01-096-6332
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTJBHD
Approved Sources 5985-01-096-6332
- Part Number
- Manufacturer
- Status
- JDS 329-11230-11
- Manufacturer
- 62165 - Arrowsmith Shelburne Inc (Obsolete)
- Original Design
- Original Design
- 329-11230-11
- 74868 - Amphenol Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 933D055682
- 34228 - L3 Technologies, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 055682
- 34228 - L3 Technologies, Inc. (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5985-01-096-6332
- Characteristic
- Specifications
- FIIG
- Specifications
- A158A0
- Actuator Current Type And Rating In Amps [AKPE]
- 0.15 Dc Nominal
- Actuator Voltage In Volts [AKPJ]
- 28.0 Nominal

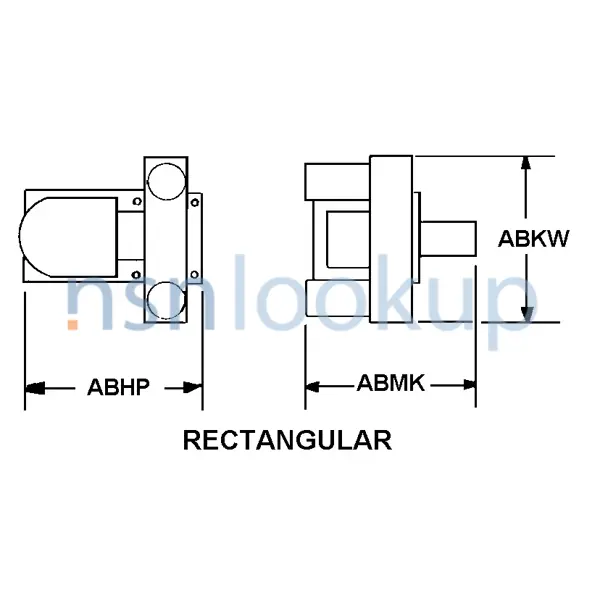

- Body Style [AAQL]
- Rectangular
- Coaxial Connector Series Designation [AHUC]
- Bnc
- Connector End Design [AHUD]
- Female
- Coupling Position Quantity [AKRC]
- 9
- Operating Temp Range [AFGA]
- +0.0/+50.0 Deg Celsius
- Pole Quantity [AKPX]
- 1
- Rf Power Handling Capability [AKNF]
- 100.0 Watts Average 1St
- Rf Power Handling Capability [AKNF]
- 2.0 Kilowatts Peak 2Nd
- Overall Height [ABKW]
- 1.937 Inches Nominal
- Overall Length [ABHP]
- 3.422 Inches Nominal
- Overall Width [ABMK]
- 3.000 Inches Nominal
- Throw Quantity [AKPY]
- 8
- Switch Operation Sequence [AKPN]
- Breaks Before Makes
- Switch Return Mechanism Type [AKPQ]
- Fail-Safe
- Switch Type [AEEA]
- Nontransfer
- Switching Time [AKPP]
- 12.0 Microseconds
Weapon Systems (WSDC) 5985-01-096-6332
DLA Procurement Analysis 5985-01-096-6332
Management Data 5985-01-096-6332
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5985-01-096-6332
Freight Information 5985-01-096-6332
5985-01-096-6332 has freight characteristics managed by the Food and Drug Administration (FDA).It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5985-01-096-6332 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5985-01-096-6332 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5985-01-096-6332 is not classified as a special type of cargo when transported by water. 5985-01-096-6332 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
