5985-01-081-3567
Radio Frequency Transmission Line Switch
5985010813567 010813567 C8903-2 200C91600 KR-8528-281-95
An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified). View more Radio Frequency Transmission Line Switch
November 2023
12
Marketplace 5985-01-081-3567
Request a Quotation from participating marketplace vendors
Related Documents 5985-01-081-3567 5+ Documents (More...)
United States (US) 4. 5985-01-081-3567 Marketplace Restrictions Approved Sources Datasheet Management
KR-8528-281-95 SWITCH,RADIO FREQUENCY TRANSMISSION LINE RQST NS Request Quotation Updated Every Day 5985
/www.nsnlookup.com /fsg-59/fsc-5985/us 5985-01-250-7808 Radio Frequency Transmission Line Switch 200C91600
www.nsnlookup.com /fsg-59/fsc-5985/us 5985-01-250-7808 https//www.nsnlookup.com /fsg-59/fsc-5985/us 5985-01-081-3567
Switch your Account Upgrade 5985-01-081-3567Radio Frequency Transmission Line Switch5985010813567 010813567
https// your Account Upgrade 5985-01-081-3567Radio Frequency Transmission Line Switch5985010813567 010813567
Switch your Account Upgrade 5985-01-081-3567Radio Frequency Transmission Line Switch5985010813567 010813567
C8903 https//www.nsnlookup.com /fsg-59/fsc-5985/us 5985-01-081-3567 Radio Frequency Transmission Line
Radio Frequency Transmission Line Switch Transmission Line Switch5985010813567 010813567 https/
5985-01-184-8510 Radio Frequency Transmission Line Switch Transmission Line Switch5985010813567 010813567
Restrictions 5985-01-081-3567
5985-01-081-3567 is a Radio Frequency Transmission Line Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5985-01-081-3567
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-01-081-3567
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
- Poland (WP01)
- Effective Date:
- 1 Feb 2007
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Jul 1996
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5985-01-081-3567
- Part Number
- Manufacturer
- Status
- C8903-2
- Manufacturer
- 81755 - Lockheed Martin Corporation (Active)
- Primary Buy
- Primary Buy
- 200C91600
- 82152 - Fisica Applied Technologies, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- KR-8528-281-95
- 91836 - Winchester Interconnect Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5985-01-081-3567
- Characteristic
- Specifications
- FIIG
- Specifications
- A158A0
- Actuator Current Type And Rating In Amps [AKPE]
- 0.2 Dc Nominal
- Actuator Voltage In Volts [AKPJ]
- 28.0 Nominal

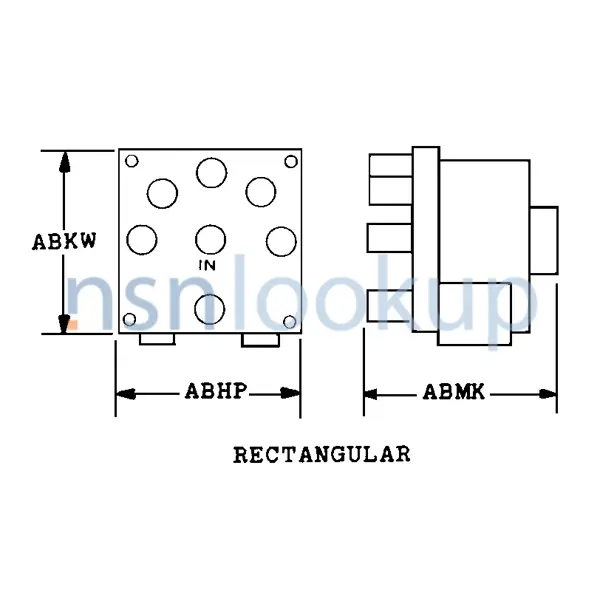

- Body Style [AAQL]
- Rectangular
- Coupling Position Quantity [AKRC]
- 1
- Operating Temp Range [AFGA]
- -55.0/+85.0 Deg Celsius
- Pole Quantity [AKPX]
- 1
- Rf Maximum Voltage Rating [AKQA]
- 500.0 Volts Peak
- Overall Height [ABKW]
- 1.310 Inches Nominal
- Overall Length [ABHP]
- 2.500 Inches Nominal
- Overall Width [ABMK]
- 2.500 Inches Nominal
- Throw Quantity [AKPY]
- 1
- Switch Type [AEEA]
- Nontransfer
- Switching Time [AKPP]
- 15.0 Milliseconds
- Terminal Type And Quantity [TTQY]
- 1 Receptacle, Coaxial
