5985-01-079-4491
Waveguide Vane
5985010794491 010794491 816334-1
An item in the form of a plate or a knifelike blade designed to be part of a waveguide attenuator or a waveguide shutter. View more Waveguide Vane
January 2023
16
Marketplace 5985-01-079-4491
Request a Quotation from participating marketplace vendors
Related Documents 5985-01-079-4491 1+ Documents (More...)
/fsg-59/fsc-5985/us
5985-01-079-4491 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5985/us 5985-01-079-4491
Day 5985-01-079-4491 RQST NE Related Documents 5985-01-079-4491 1+ Documents ( More... ) https//www.nsnlookup.com
Restrictions 5985-01-079-4491
5985-01-079-4491 is a Waveguide Vane that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is a US Munitions List Item and must be mutilated to scrap. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5985-01-079-4491
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-01-079-4491
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5985-01-079-4491
- Part Number
- Manufacturer
- Status
- 816334-1
- Manufacturer
- 96214 - Raytheon Company (Active)
- Primary Buy
- Primary Buy
- 816334-1
- 65534 - Alek Industries Inc (Active)
- Secondary Buy
- Secondary Buy
- 816334-1
- 63592 - Starwin Industries, Llc (Active)
- Secondary Buy
- Secondary Buy
- 816334-1
- A0267 - Elettronica Aster Spa (Active)
- NATO Reproduction
- NATO Reproduction
- 816334-1
- D1901 - Hensoldt Sensors Gmbh (Active)
- NATO Reproduction
- NATO Reproduction
Datasheet 5985-01-079-4491
- Characteristic
- Specifications
- FIIG
- Specifications
- A073A0

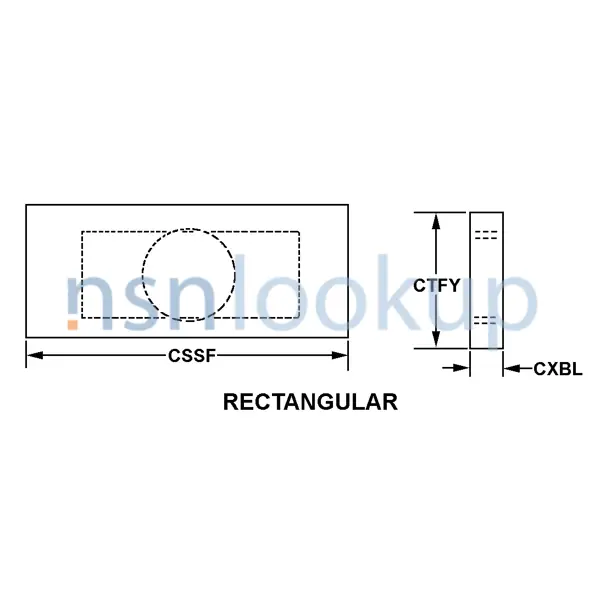

- Style Designator [STYL]
- Rectangular
- Vane Outside Width [CSSF]
- 0.800 Inches Nominal
- Vane Outside Height [CTFY]
- 0.400 Inches Nominal
- Vane Thickness [CXBL]
- 0.063 Inches Nominal
- Material [MATT]
- Plastic Single Vane
- Fsc Application Data [ZZZV]
- Antennas,Waveguides,And Related Equipment
NATO Stock Numbers Related to 5985-01-079-4491
Freight Information 5985-01-079-4491
5985-01-079-4491 has freight characteristics managed by Germany.It has a National Motor Freight Classification (NMFC) of 156600. A Sub NMFC of Z. It has a NMFC Description of PLASTIC/RUBBER ARTICLE VIZ:. 5985-01-079-4491 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 77670 which rates the freight between FCL and LCL. 5985-01-079-4491 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 772 for ocean manifesting and military sealift. 5985-01-079-4491 is not classified as a special type of cargo when transported by water. 5985-01-079-4491 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5985-01-079-4491
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
