5985-01-065-8462
Variable Attenuator
5985010658462 010658462 7466698 1004185-01 QL80AC-8 QL8-0AC-8
A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified). View more Variable Attenuator
May 2023
20
Marketplace 5985-01-065-8462
Request a Quotation from participating marketplace vendors
Related Documents 5985-01-065-8462 3+ Documents (More...)
(Identification) 1/2 NSN 5985-01-065-8462 (Identification) 2/2 - - 1.
ATTENUATOR,VARIABLE RQST NS Request Quotation Updated Every Day 5985-01-065-8462 RQST NE Updated
Variable Attenuator 5985010658462 010658462 day Upgrade your Account Upgrade 5985-01-065-8462Variable
Attenuator5985010658462 010658462 7466698 1004185 DAC 5 7466698 98747 - Ogden Air Logistics Center (
Variable Attenuator 5985010658462 010658462 Account Upgrade 5985-01-065-8462Variable Attenuator5985010658462
010658462 7466698 1004185-01 QL80AC-8 QL8 Restrictions Approved Sources Datasheet Management https//
Restrictions 5985-01-065-8462
5985-01-065-8462 is a Variable Attenuator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5985-01-065-8462
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-01-065-8462
- US Air Force (FXGX)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXTX
- Poland (WP01)
- Effective Date:
- 1 Jan 2007
- Republic of Korea (ZH01)
- Effective Date:
- 1 Nov 1994
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 2008
Approved Sources 5985-01-065-8462
- Part Number
- Manufacturer
- Status
- 1004185-01
- Manufacturer
- 1PQF4 - Cae Usa Inc. (Active)
- Primary Buy
- Primary Buy
- 7466698
- 98747 - Ogden Air Logistics Center (Active)
- Secondary Buy
- Secondary Buy
- 1004185-01
- 36378 - Raytheon Technical Services Company (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- QL80AC-8
- 76055 - Mallory Controls Co Sub Of Emhart (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- QL8-0AC-8
- 76055 - Mallory Controls Co Sub Of Emhart (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5985-01-065-8462
- Characteristic
- Specifications
- FIIG
- Specifications
- A223A0
- Adjustment Device Type And Quantity [CQTQ]
- 1 Shaft
- Attenuation Variation Method [ASYF]
- Continuous
- Body Diameter [ABPM]
- 1.625 Inches Nominal
- Body Length [ADAQ]
- 1.672 Inches Nominal
- Body Style [AAQL]
- Cylindrical W/Side Terminals
- Bushing Length [ABXD]
- 0.375 Inches Nominal
- First Flat Length [ABNB]
- 0.375 Inches Nominal
- Flat Height [ABNC]
- 0.156 Inches Nominal
- Application Design [AAFS]
- Audio
- Mounting Facility Type And Quantity [AXHR]
- 1 Bushing
- Impedance Rating In Ohms [CTGG]
- 8.0 Input-Output
- Power Rating [AJDB]
- 4.0 Watts Average

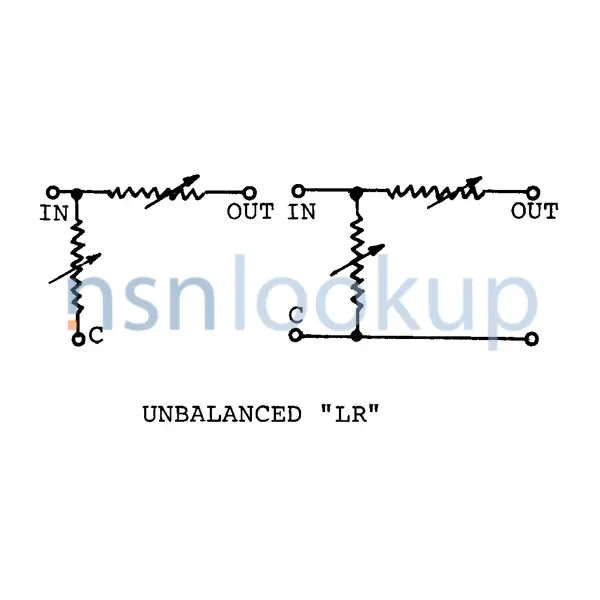

- Schematic Diagram Designator [AEBZ]
- Unbalanced "Lr"
- Shaft Diameter [ABWV]
- 0.250 Inches Nominal
- Shaft Length [ABXF]
- 0.875 Inches Nominal
- Shaft Type [CRSJ]
- Round, Flatted
- Overall Attenuation Accuracy In Decibels [BQNR]
- -1.00/+1.00
- Overall Attenuation Range In Decibels [ASYD]
- +0.0/+50.0
- Overall Length [ABHP]
- 2.547 Inches Nominal
- Overall Width [ABMK]
- 2.031 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 6 Tab, Solder Lug
Weapon Systems (WSDC) 5985-01-065-8462
DLA Procurement Analysis 5985-01-065-8462
Management Data 5985-01-065-8462
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2023
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Air Force (DF)
- F
- X
- Formerly 5905
- X
- Defense Logistics Agency (DS)
- I
- X
- Formerly 5905
- X
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- EH
- ELECTRONIC COMPONENTS
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
NATO Stock Numbers Related to 5985-01-065-8462
Freight Information 5985-01-065-8462
5985-01-065-8462 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061700. A Sub NMFC of X. It has a NMFC Description of ELEC APPLIANCES/INSTRUMENTS NOI. 5985-01-065-8462 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34580 which rates the freight between FCL and LCL. 5985-01-065-8462 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5985-01-065-8462 is not classified as a special type of cargo when transported by water. 5985-01-065-8462 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5985-01-065-8462
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 5985-01-065-8462 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- R
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
