5985-01-045-1767
Variable Attenuator
5985010451767 010451767 9063A 721733-1
A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified). View more Variable Attenuator
May 2023
15
Marketplace 5985-01-045-1767
Request a Quotation from participating marketplace vendors
Related Documents 5985-01-045-1767 5+ Documents (More...)
United States (US) 4. 5985-01-045-1767 Marketplace Restrictions Approved Sources Datasheet Management
Request a Quotation from participating marketplace vendors Request Updated Every Day 5985-01-045-1767
Variable Attenuator 5985010451767 010451767 Variable Attenuator 5985010451767010451767 Sensing
Element6340017024939 01702493904-90028-9063A https//www.nsnlookup.com /fsg-63/fsc-6340/us 6340-01-702
99-973-0640 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-83/fsc-8315/uk 8315-99-973-0640 9063A
web browser . 6340-01-702-4939Fire Detector System Sensing Element6340017024939 017024939 04-90028-9063A
Related Documents 6220-01-056-5167 3+ Documents RQST https// -63/fsc-6340/us 6340-01-702-4939 04-90028-9063A
www.nsnlookup.com /fsg-62/fsc-6220/us 6220-01-056-5167 https//www.nsnlookup.com /fsg-59/fsc-5985/us 5985-01-045-1767
045-1767 Variable Attenuator 5985010451767 010451767 Sensing Element6340017024939 017024939 04-90028
web browser . 6340-01-702-4939Fire Detector System Sensing Element6340017024939 017024939 04-90028-9063A
Restrictions 5985-01-045-1767
IUID Required
5985-01-045-1767 is a Variable Attenuator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5985-01-045-1767
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-01-045-1767
- US Navy (N2H4)
- Effective Date:
- 1 Apr 1991
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
Approved Sources 5985-01-045-1767
- Part Number
- Manufacturer
- Status
- 9063A
- Manufacturer
- 93459 - Spectrum Control Inc (Active)
- Primary Buy
- Primary Buy
- 9063A
- C1834 - Kontron Europe Gmbh (Active)
- Secondary Buy
- Secondary Buy
- 721733-1
- 05869 - Raytheon Company (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5985-01-045-1767
- Characteristic
- Specifications
- FIIG
- Specifications
- A223A0
- Adjustment Device Type And Quantity [CQTQ]
- 2 Knob
- Attenuation Per Step In Decibels [ASYH]
- 1.0
- Attenuation Variation Method [ASYF]
- Stepped
- Body Style [AAQL]
- Coaxial Type
- Coaxial Connector Series Designation [AHUC]
- Sma
- Frequency Range [BNGR]
- 0.000 Gigahertz Minimum And 4.000 Gigahertz Maximum
- Application Design [AAFS]
- Transmission Line
- Mounting Facility Type And Quantity [AXHR]
- 2 Connector
- Operating Temp Range [AFGA]
- -0.0/+71.0 Deg Celsius
- Impedance Rating In Ohms [CTGG]
- 50.0 Input-Output
- Insertion Loss At Minimum Attenuation In Maximum Decibels [ASYC]
- 0.6
- Power Rating [AJDB]
- 2.0 Watts Average And 200.0 Watts Peak
- Scale Division Quantity [ABWG]
- 9
- Scale Linearity [ABWF]
- Linear
- Segment Attenuation Accuracy In Decibels [BQNT]
- -0.30/+0.30 And -0.70/+0.70 And -0.90/+0.90 And -1.00/+1.00 And -1.10/+1.10 And -1.20/+1.20 And -1.30/+1.30 And -1.40/+1.40 And -1.50/+1.50 And -1.60/+1.60
- Segment Attenuation Range In Decibels [BQNS]
- +1.00/+9.00 And +10.00/+19.00 And +20.00/+29.00 And +30.00/+39.00 And +40.00/+49.00 And +50.00/+59.00 And +60.00/+69.00 And +70.00/+79.00 And +80.00/+89.00 And +90.00/+99.00
- Overall Attenuation Range In Decibels [ASYD]
- +0.0/+99.0

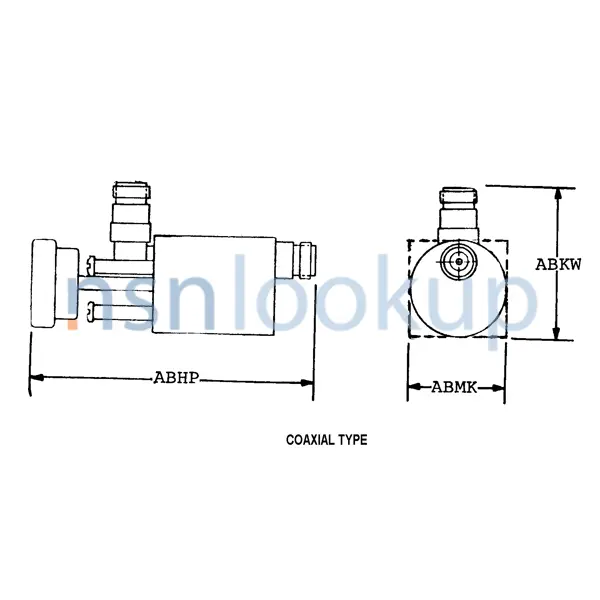

- Overall Height [ABKW]
- 1.930 Inches Nominal
- Overall Length [ABHP]
- 6.550 Inches Maximum
- Overall Width [ABMK]
- 1.760 Inches Nominal
- Vernier Scale Division Quantity [ASYK]
- 9
- Voltage Standing Wave Ratio [AHTW]
- 1.35
- Step Position Quantity [ASYG]
- 99
- Terminal Type And Quantity [TTQY]
- 2 Connector, Coaxial, Female
