5985-00-921-3697
Variable Attenuator
5985009213697 009213697 322 G101
A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified). View more Variable Attenuator
May 2023
11
Marketplace 5985-00-921-3697
Request a Quotation from participating marketplace vendors
Related Documents 5985-00-921-3697 5+ Documents (More...)
Details... 322 ATTENUATOR,VARIABLE 1319 EA NS Request Quotation G101 ATTENUATOR,VARIABLE 1 EA NS Request
RQST NE Related Documents 5985-00-921-3697 5+ Documents ( More... ) https//www.nsnlookup.com /fsg
vendors Request Updated Every Day 5340-99-612-6545 https//www.nsnlookup.com /fsg-59/fsc-5985/us 5985-00-921-3697
Variable Attenuator 5985009213697 009213697 Limited (Active) Primary Buy RNCC 3 RNVC 2 DAC 2 G101
/5620/1 G101/5620 ITEM 1 A rigid item of various shapes and cross-sections, specifically designed to
www.nsnlookup.com /fsg-53/fsc-5340/uk 5340-99-790-5751 Manual Control Lever 5340997905751997905751 G101
003473890,G101 347-3890 Relay Cover Cap 5945003473890003473890 https//www.nsnlookup.com /fsg-61/fsc-
Variable Attenuator 5985009213697 009213697 Quotation G101 ATTENUATOR,VARIABLE 1 EA NS Request
-99-434-7598Electrical-Electronic Equipment Control Panel6110994347598 994347598 G101 ,G101 ,G101 RQST
NE Updated Every Day 6110-99-434-7598 RQST Updated Every Day 6110-99-434-7598 RQST G101 S1-G101G101-
Restrictions 5985-00-921-3697
5985-00-921-3697 is a Variable Attenuator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5985-00-921-3697
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-00-921-3697
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
Approved Sources 5985-00-921-3697
- Part Number
- Manufacturer
- Status
- G101
- Manufacturer
- 78711 - Telephonics Corp (Active)
- Primary Buy
- Primary Buy
- 322
- 00443 - Waveline Inc (Active)
- Secondary Buy
- Secondary Buy
- G101
- 0C9D4 - Peraton Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5985-00-921-3697
- Characteristic
- Specifications
- FIIG
- Specifications
- A223A0
- Adjustment Device Type And Quantity [CQTQ]
- 1 Knob
- Attenuation Variation Method [ASYF]
- Continuous

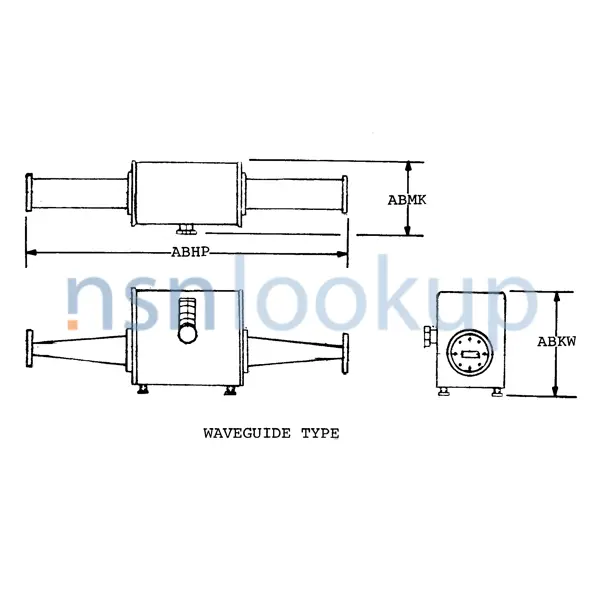

- Body Style [AAQL]
- Waveguide Type
- Frequency Range [BNGR]
- 3.050 Gigahertz Minimum And 5.850 Gigahertz Maximum
- Application Design [AAFS]
- Transmission Line
- Mounting Facility Type And Quantity [AXHR]
- 2 Terminal W/Mounting Holes
- Insertion Loss At Minimum Attenuation In Maximum Decibels [ASYC]
- 0.5
- Power Rating [AJDB]
- 15.0 Watts Peak
- Overall Attenuation Range In Decibels [ASYD]
- +0.0/+60.0
- Overall Height [ABKW]
- 6.375 Inches Nominal
- Overall Length [ABHP]
- 19.000 Inches Nominal
- Overall Width [ABMK]
- 7.000 Inches Nominal
- Voltage Standing Wave Ratio [AHTW]
- 1.15
- Waveguide Flange Designation [AKSA]
- Ug-407/U
- Terminal Type And Quantity [TTQY]
- 2 Flange
DLA Procurement Analysis 5985-00-921-3697
Management Data 5985-00-921-3697
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5985-00-921-3697
Freight Information 5985-00-921-3697
5985-00-921-3697 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061700. A Sub NMFC of Z. It has a NMFC Description of ELEC APPLIANCES/INSTRUMENTS NOI. 5985-00-921-3697 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34580 which rates the freight between FCL and LCL. 5985-00-921-3697 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5985-00-921-3697 is not classified as a special type of cargo when transported by water. 5985-00-921-3697 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5985-00-921-3697
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- ASTM-D5118, Type CF, Class Domestic, Corrugated Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
