5985-00-891-8142
Radio Frequency Transmission Line Switch
5985008918142 008918142 P752000100
An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified). View more Radio Frequency Transmission Line Switch
May 2023
16
Marketplace 5985-00-891-8142
Request a Quotation from participating marketplace vendors
Related Documents 5985-00-891-8142 1+ Documents (More...)
United States (US) 4. 5985-00-891-8142 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5985-00-891-8142 RQST Updated Every Day 5985-00-891-8142 RQST NE Related
Restrictions 5985-00-891-8142
IUID Required
5985-00-891-8142 is a Radio Frequency Transmission Line Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a US Munitions List Item and must be mutilated to scrap. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5985-00-891-8142
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-00-891-8142
- US Navy (N2H4)
- Effective Date:
- 1 Apr 1991
- Brazil (YA01)
- Effective Date:
- 1 Jan 2002
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5985-00-891-8142
- Part Number
- Manufacturer
- Status
- P752000100
- Manufacturer
- 16786 - F E L Corp (Obsolete)
- Original Design
- Original Design
Datasheet 5985-00-891-8142
- Characteristic
- Specifications
- FIIG
- Specifications
- A158A0
- Actuator Current Type And Rating In Amps [AKPE]
- 1.0 Ac Maximum
- Actuator Voltage In Volts [AKPJ]
- 117.0 Minimum

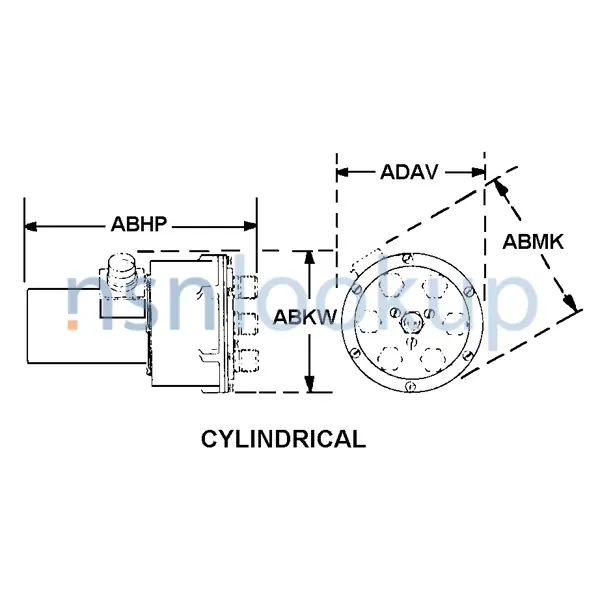

- Body Style [AAQL]
- Cylindrical
- Coaxial Connector Series Designation [AHUC]
- N
- Connector End Design [AHUD]
- Male
- Coupling Position Quantity [AKRC]
- 6
- Operating Temp Range [AFGA]
- -0.0/+50.0 Deg Celsius
- Frequency Rating [ACZB]
- 50.0 Megahertz Minimum And 200.0 Megahertz Maximum Single Frequency Voltage Standing Wave Ratio
- Frequency Rating [ACZB]
- 20.0 Megahertz Minimum And 200.0 Megahertz Maximum Single Frequency Insertion Loss Reference
- Pole Quantity [AKPX]
- 1
- Overall Height [ABKW]
- 5.500 Inches Nominal
- Overall Width [ABMK]
- 7.489 Inches Nominal
- Special Features [FEAT]
- Rotor Blade Coin Silver Containing 90 Per Cent Silver
- Switch Operation Sequence [AKPN]
- Makes Before Breaks
- Switch Type [AEEA]
- Nontransfer
- Switching Time [AKPP]
- 1.0 Seconds
- Terminal Type And Quantity [TTQY]
- 1 Receptacle, Coaxial
Management Data 5985-00-891-8142
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- Oct 2020
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- Nov 2019
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- L
- R
- Refer To Net Price 343.00
- NET PRICE 343.00
