5985-00-837-6338
Variable Attenuator
5985008376338 008376338 WL500
A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified). View more Variable Attenuator
May 2023
5
Marketplace 5985-00-837-6338
Request a Quotation from participating marketplace vendors
Related Documents 5985-00-837-6338 4+ Documents (More...)
BUY NE FedMall Updated Every Day 5985-00-837-6338 RQST NE Related Documents 5985-00-837-6338 4+ Documents
WL500 ATTENUATOR,VARIABLE 37 EA NS Request Quotation FedMall Updated Every 15 Minutes 5985-00-837-6338
Managed by Italy NSN Created on https//www.nsnlookup.com /fsg-61/fsc-6150/au 6150 WL500 (241)AA045SU-WL500
https//www.nsnlookup.com /fsg-59/fsc-5985/us 5985-00-837-6338 Variable Attenuator 5985008376338 008376338
Managed by Italy NSN Created on https//www.nsnlookup.com /fsg-61/fsc-6150/au 6150 WL500 (241)AA045SU-WL500
Attenuator 5985008376338 008376338 WL500 Managed by Italy NSN Created on https//www.nsnlookup.com /fsg
Managed by Italy NSN Created on https//www.nsnlookup.com /fsg-61/fsc-6150/au 6150 WL500 (241)AA045SU-WL500
(241)AA045SU-WL500 2702 Sortie De Courant I 6110142212702142212702 https//www.nsnlookup.com /fsg-59/
Restrictions 5985-00-837-6338
5985-00-837-6338 is a Variable Attenuator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5985-00-837-6338
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-00-837-6338
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
Approved Sources 5985-00-837-6338
- Part Number
- Manufacturer
- Status
- WL500
- Manufacturer
- 71590 - Crl Components Inc (Obsolete)
- Original Design
- Original Design
Datasheet 5985-00-837-6338
- Characteristic
- Specifications
- FIIG
- Specifications
- A223A0
- Application Design [AAFS]
- Audio

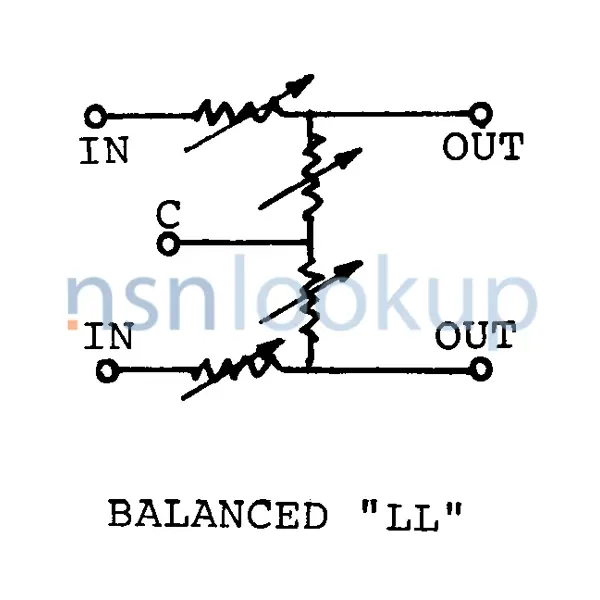

- Schematic Diagram Designator [AEBZ]
- Balanced "Ll"
- Impedance Rating In Ohms [CTGG]
- 500.0 Input-Output
- Power Rating [AJDB]
- 20.0 Watts Average
- Attenuation Variation Method [ASYF]
- Continuous
- Body Style [AAQL]
- Cylindrical W/Side Terminals
- Overall Length [ABHP]
- 3.078 Inches Nominal
- Overall Width [ABMK]
- 1.500 Inches Nominal
- Body Diameter [ABPM]
- 1.156 Inches Nominal
- Bushing Length [ABXD]
- 0.375 Inches Nominal
- Body Length [ADAQ]
- 1.203 Inches Nominal
- Adjustment Device Type And Quantity [CQTQ]
- 1 Shaft
- Shaft Type [CRSJ]
- Round
- Shaft Diameter [ABWV]
- 0.250 Inches Nominal
- Shaft Length [ABXF]
- 1.875 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 6 Tab, Solder Lug
- Mounting Facility Type And Quantity [AXHR]
- 1 Threaded Bushing
- Mounting Facility Screw Thread Series Designator [AKEJ]
- Unef
- Mounting Facility Nominal Screw Thread Diameter [CRYY]
- 0.375 Inches
- Mounting Thread Quantity [CGGK]
- 32 Per Inch
DLA Procurement Analysis 5985-00-837-6338
Management Data 5985-00-837-6338
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2023
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- X
- Formerly 5905
- X
- Defense Logistics Agency (DS)
- I
- X
- Formerly 5905
- X
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5985-00-837-6338
Freight Information 5985-00-837-6338
5985-00-837-6338 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061700. A Sub NMFC of Z. It has a NMFC Description of ELEC APPLIANCES/INSTRUMENTS NOI. 5985-00-837-6338 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34580 which rates the freight between FCL and LCL. 5985-00-837-6338 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5985-00-837-6338 is not classified as a special type of cargo when transported by water. 5985-00-837-6338 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5985-00-837-6338
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-P-130, Laminated and Creped Wrapping Paper
- No Requirement
- Not Applicable
- --
- No special marking
- MIL-P-130, Laminated and Creped Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566 or PPP-B-676, Folding or Setup Box
Contracting Technical Data File (CTDF) 5985-00-837-6338 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
