Variable Attenuator
5985007557885 007557885 2511 9197921 7958 SP1005-1
A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified). View more Variable Attenuator
January 2023
26
Marketplace 5985-00-755-7885
Request a Quotation from participating marketplace vendors
Related Documents 5985-00-755-7885 5+ Documents (More...)
Quotation 7958 ATTENUATOR,VARIABLE 2 EA NS Request Quotation Subscribe to View Vendor Details... 2511
Every Day 5985-00-755-7885 RQST NE Updated Every Day 5985-00-755-7885 RQST Updated Every Day 5985-00
RQST NE Updated Every Day 6240-01-696-7958 RQST Updated Every Day 6240-01-696-7958 RQST NE Related Documents
6240-01-696-7958 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-62/fsc-6240/us 6240-01-696-7958
Request a Quotation from participating marketplace vendors Request Updated Every Day 1560-12-335-2511
RQST NE Updated Every Day 1560-12-335-2511 RQST Updated Every Day 1560-12-335-2511 RQST NE Restrictions
Inventory Freight Packaging Import/Export Contracting File Weapon Systems Marketplace 1450-14-042-7958
Request a Quotation from participating marketplace vendors Request Updated Every Day 1450-14-042-7958
Inventory Freight Packaging Import/Export Contracting File Weapon Systems Marketplace 1450-33-003-2511
Request a Quotation from participating marketplace vendors Request Updated Every Day 1450-33-003-2511
Restrictions 5985-00-755-7885
5985-00-755-7885 is a Variable Attenuator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains Silver.
Import and Export 5985-00-755-7885
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-00-755-7885
- Spain (YB01)
- Effective Date:
- 1 Sep 2008
- Israel (YD01)
- Effective Date:
- 1 Mar 2017
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jun 2006
Approved Sources 5985-00-755-7885
- Part Number
- Manufacturer
- Status
- 9197921
- Manufacturer
- 18876 - Us Army Aviation And Missile Command (Active)
- Primary Buy
- Primary Buy
- 2511
- 58880 - Meggitt (New Hampshire), Inc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 7958
- 58880 - Meggitt (New Hampshire), Inc (Active)
- Secondary Buy
- Secondary Buy
- SP1005-1
- F7396 - Nortel Networks France (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5985-00-755-7885
- Characteristic
- Specifications
- FIIG
- Specifications
- A223A0
- Adjustment Device Type And Quantity [CQTQ]
- 1 Shaft
- Attenuation Per Step In Decibels [ASYH]
- 1.0
- Attenuation Variation Method [ASYF]
- Stepped
- Body Diameter [ABPM]
- 2.344 Inches Nominal
- Body Length [ADAQ]
- 2.063 Inches Nominal
- Body Style [AAQL]
- Cylindrical W/Side Terminals
- Bolt Circle Diameter [ABKG]
- 1.500 Inches Nominal
- Distance Between Mounting Facility Centers [AEJN]
- 1.500 Inches Nominal
- Frequency Range [BNGR]
- 0.000 Kilohertz Minimum And 525.000 Kilohertz Maximum
- Fsc Application Data [ZZZV]
- Antennas,Waveguides,And Related Equipment
- Application Design [AAFS]
- Audio
- Mounting Facility Nominal Screw Thread Diameter [CRYY]
- 0.164 Inches
- Mounting Facility Pattern [CQYJ]
- Two Position In-Line
- Mounting Facility Type And Quantity [AXHR]
- 2 Threaded Hole
- Mounting Facility Screw Thread Series Designator [AKEJ]
- Unc
- Mounting Thread Quantity [CGGK]
- 32 Per Inch
- Operating Temp Range [AFGA]
- -55.0/+85.0 Deg Celsius
- Impedance Rating In Ohms [CTGG]
- 600.0 Input-Output
- Power Rating [AJDB]
- 1.5 Watts Average
- Precious Material And Location [PMLC]
- Contacts Silver
- Precious Material [PRMT]
- Silver

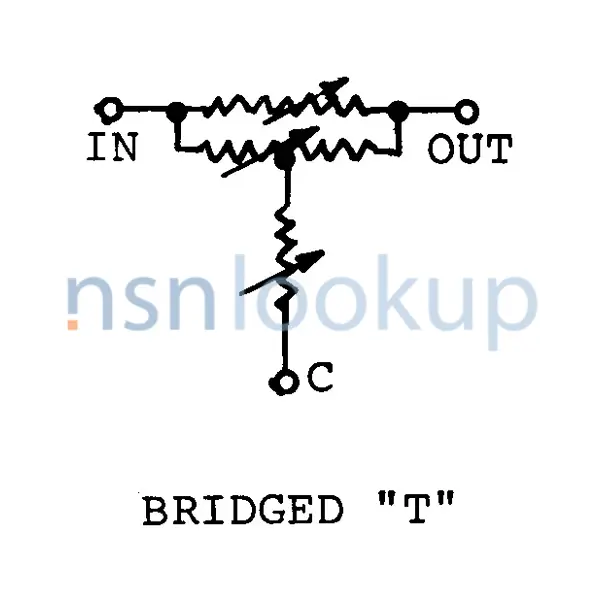

- Schematic Diagram Designator [AEBZ]
