5985-00-615-9548

Waveguide Vane

5985006159548 006159548 7029891P1

An item in the form of a plate or a knifelike blade designed to be part of a waveguide attenuator or a waveguide shutter. View more Waveguide Vane

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
May 2023

NATO Update Count
12

NATO Data Quality

STYL Style H3 for 5985-00-615-9548 1/1 — NSN 5985-00-615-9548 (Identification) 1/1

Marketplace 5985-00-615-9548

Need Help?
Request a Quotation from participating marketplace vendors

Updated Every Day

5985-00-615-9548 RQST NE

Restrictions 5985-00-615-9548

5985-00-615-9548 is a Waveguide Vane that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.

Import and Export 5985-00-615-9548

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5985-00-615-9548

US Air Force (FUGX)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FUTX; AMC 0 AMSC 0 IMC Z IMCACTY SU

Spain (YB01)
Effective Date:: 1 Feb 1994

Canada (ZC01)
Effective Date:: 1 Apr 1991

Approved Sources 5985-00-615-9548

Part Number
Manufacturer
Status
7029891P1: 03538 - Lockheed Martin Corporation (Active); Primary Buy; RNCC 3 RNVC 2 DAC X
7029891P1: 24446 - General Electric Company (Active); Secondary Buy; RNCC 5 RNVC 2 DAC X

Datasheet 5985-00-615-9548

Characteristic
Specifications
FIIG: A073A0
Vane Outside Height [CTFY]: 9.750 Inches Nominal
Vane Thickness [CXBL]: 0.250 Inches Nominal

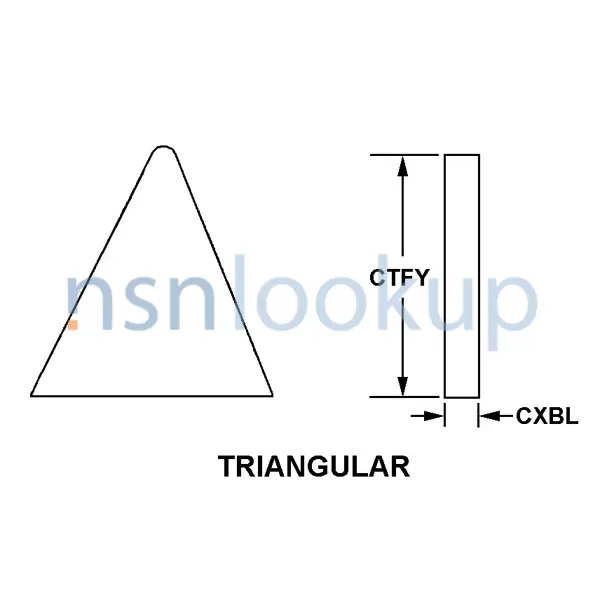

Style Designator [STYL]: Triangular

Subscribe
View Data

DLA Procurement Analysis 5985-00-615-9548

DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5985-00-615-9548

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Air Force (DF); EA; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); EA; Subscribe; 1
Mar 2020: Department of the Air Force (DF); EA; Subscribe; 1

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

ZW: SURVEILLANCE AND WARNING SYSTEMS SURVEILLANCE AND WARNING PROJECTS GROUND IDENTIFICATION AND RECOGNITION EQUIPMENT (COMMOM) 441A RADAR SYSTEM (AN/FPS/95), WESTPACNORTH (WPN) COMPATABILITY SYSTEM

Price Validation Code:

N: The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Similar Supply Items to 5985-00-615-9548

Freight Information 5985-00-615-9548

5985-00-615-9548 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5985-00-615-9548 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5985-00-615-9548 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5985-00-615-9548 is not classified as a special type of cargo when transported by water. 5985-00-615-9548 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
