5985-00-586-7023
Radio Frequency Transmission Line Switch
5985005867023 005867023 721899-081 11800
An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified). View more Radio Frequency Transmission Line Switch
May 2023
16
Marketplace 5985-00-586-7023
Request a Quotation from participating marketplace vendors
Related Documents 5985-00-586-7023 5+ Documents (More...)
94 -11800 -84296.3 8140 -94-11800-84296.4 -11800 94-11800-84296.5 8140- 94-11800 8140-94-11800-84296.5
8140-94-11800-84296.2 8140-94 -11800- https -94-11800-84296.2 8140-94 -11800- https -94-11800-84296.2
(241)AC839700/11800 Managed by Italy NSN Created on 28 Nov 2005 Data Last Changed January 2023 NATO
(241)AC839700/11800 Managed by Italy NSN Created on 28 Nov 2005 Data Last Changed January 6220-15-200
8140-94-11800-84296.2 8140-94-11800-84296.5 https 11800-84296.1 - 90-11800-84296.1 11800-84296.1 8140
-84296.5 8140-94-11800-84296.2 -84296.3 8140-94-11800 -84296.4 -11800 94 -11800-84296.5 https/ 94-11800
-84296.3 8140-94- 8140 -11800-84296.4 -11800 94-11800-84296.5 8140-94-11800 - -11800 94-11800-84296.5
-11800-84296.4 -84296.2 8140-94-11800-84296.5 94 -11800-84296.3 8140 - -94-11800- 84296.4 -11800 94-
94-11800-84296.5 4A1/Y54/S/**/D/BAM3942-DNM 8140 -11800-84296.2 -11800-84296.5 4A1 -94-11800-84296.2
8140-94 -11800- https -94-11800-84296.2 8140-94 8140-94-11800-84296.2 -11800-84296.2 -11800-84296.5
Restrictions 5985-00-586-7023
5985-00-586-7023 is a Radio Frequency Transmission Line Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains Silver.
Import and Export 5985-00-586-7023
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-00-586-7023
- US Army (A918)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- A196
- Supplementary Receivers:
- CL
- US Navy (N9BN)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- NIND
- Supplementary Collaborators:
- GTJB
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Nov 1993
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
Approved Sources 5985-00-586-7023
- Part Number
- Manufacturer
- Status
- 11800
- Manufacturer
- 00471 - Dow-Key Microwave Llc (Active)
- Primary Buy
- Primary Buy
- 721899-081
- 82577 - Raytheon Company (Active)
- Secondary Buy
- Secondary Buy
- 11800
- 50140 - K&L Microwave Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 11800
- 82152 - Fisica Applied Technologies, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5985-00-586-7023
- Characteristic
- Specifications
- FIIG
- Specifications
- A158A0
- Actuator Current Type And Rating In Amps [AKPE]
- 0.1 Ac Nominal
- Actuator Operating Method [AKPC]
- Relay
- Actuator Voltage In Volts [AKPJ]
- 115.0 Nominal

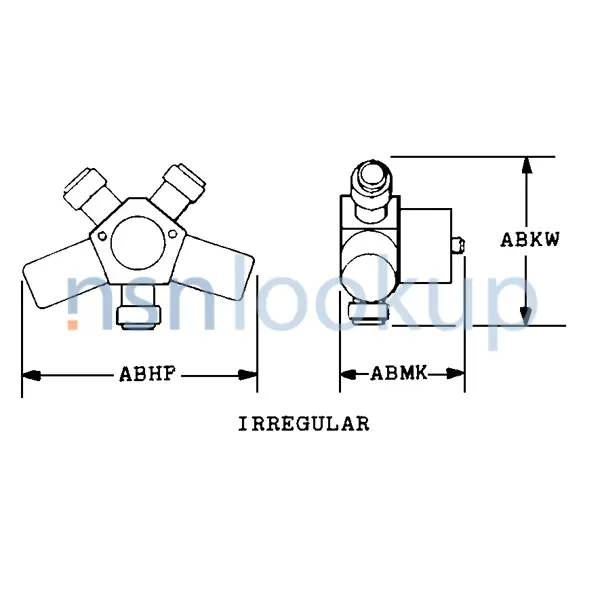

- Body Style [AAQL]
- Irregular
- Coaxial Connector Series Designation [AHUC]
- N
- Connector End Design [AHUD]
- Female
- Coupling Position Quantity [AKRC]
- 3
- Distance Between Mounting Facility Centers [AEJN]
- 1.006 Inches Nominal Single Mounting Facility Pattern
- Material [MATT]
- Aluminum Body
- Material [MATT]
- Aluminum Connector(S)
- Material [MATT]
- Beryllium Contact(S)
- Minimum Crosstalk Rating In Decibels [AKNV]
- 60.0 Single
- Mounting Facility Type And Quantity [AXHR]
- 2 Threaded Hole
- Mounting Facility Pattern [CQYJ]
- Two Position In-Line Single Mounting Facility Pattern
- Nominal Thread Size [CQJX]
- 0.164 Inches Mounting Facility Hole
- Operating Temp Range [AFGA]
- -54.0/+85.0 Deg Celsius
- Frequency Rating [ACZB]
- 0.0 Gigahertz Minimum And 11.0 Gigahertz Maximum Single Frequency Operating0.0 Gigahertz Minimum And 11.0 Gigahertz Maximum Single Frequency Rf Power Handling0.0 Gigahertz Minimum And 11.0 Gigahertz Maximum Single Frequency Voltage Standing Wave Ratio0.0 Gigahertz Minimum And 11.0 Gigahertz Maximum Single Frequency Insertion Loss Reference0.0 Gigahertz Minimum And 11.0 Gigahertz Maximum Single Frequency Crosstalk Reference
- Insertion Loss In Decibels [AHTX]
- 0.60 Single
- Pole Quantity [AKPX]
- 1
- Precious Material And Location [PMLC]
- Contact Surfaces Silver
- Precious Material [PRMT]
- Silver
- Rf Power Handling Capability [AKNF]
- 500.0 Watts Average Single
- Overall Height [ABKW]
- 2.380 Inches Maximum
- Overall Length [ABHP]
- 3.620 Inches Maximum
- Overall Width [ABMK]
- 1.300 Inches Nominal
- Voltage Standing Wave Ratio [AHTW]
- 1.60 Single
- Surface Treatment [SFTT]
- Nickel Body All Surfaces
- Surface Treatment [SFTT]
- Nickel Connector(S) All Surfaces
- Surface Treatment [SFTT]
- Silver Contact(S) All Surfaces
- Switch Operation Sequence [AKPN]
- Makes Before Breaks
- Switch Return Mechanism Type [AKPQ]
- Fail-Safe
- Switch Type [AEEA]
- Nontransfer
- Switching Time [AKPP]
- 10.0 Milliseconds
- Terminal Type And Quantity [TTQY]
- 2 Screw And 3 Receptacle, Coaxial
- Thread Class [AAJD]
- 2B Mounting Facility Hole
- Thread Quantity Per Inch [CMLP]
- 32 Mounting Facility Hole
- Thread Series Designator [THSD]
- Unc Mounting Facility Hole
- Throw Quantity [AKPY]
- 2
Weapon Systems (WSDC) 5985-00-586-7023
DLA Procurement Analysis 5985-00-586-7023
Management Data 5985-00-586-7023
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5985-00-586-7023
Freight Information 5985-00-586-7023
5985-00-586-7023 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5985-00-586-7023 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5985-00-586-7023 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5985-00-586-7023 is not classified as a special type of cargo when transported by water. 5985-00-586-7023 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5985-00-586-7023
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- PPP-B-566 or PPP-B-676, Folding or Setup Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
