5985-00-543-1850
Radio Frequency Transmission Line Switch
5985005431850 005431850 L218873-6 CR64 300-11173 CR64-500HM1Z0V
An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified). View more Radio Frequency Transmission Line Switch
May 2023
17
Marketplace 5985-00-543-1850
Request a Quotation from participating marketplace vendors
Related Documents 5985-00-543-1850 5+ Documents (More...)
CR64 SWITCH,RADIO FREQUENCY TRANSMISSION LINE RQST NS Request Quotation Updated Every Day 5985-00-543
CR64/U10M15460 MIL-C -3098/42 which CR64 U10M15460 CR64 which CR64CR64 MIL-C-3098/42 CR64/U10M15460
MIL-C which CR64 U10M15460 MIL-C-3098/42 which which CR64 MIL-C-3098 https//www.nsnlookup.com /fsg-59
MIL-C-3098/42 which which CR64 MIL-C-3098 which CR64 U10M15460 MIL-C-3098/42 which /U10M15460 MIL-C-
/42 which which CR64 MIL-C-3098 which CR64 U10M15460 MIL-C-3098/42 which which CR64 MIL-C-3098/42 which
CR64 https//www.nsnlookup.com /U10M15460 MIL-C-3098 which CR64 MIL-C- https//www.nsnlookup.com /fsg-
CR64 MIL-C-3098/42 CR64 https//www.nsnlookup.com CR64/U10M15460 MIL-C MIL-C https//www.nsnlookup.com
/42 CR64/ /fsg-59/fsc-5955/us which CR64 MIL-C -3098/42 CR64/U10M15460 MIL-C CR64 MIL-C-3098 MIL-C-3098
MIL-C-3098/42 CR64 MIL-C -3098/42 MIL-C MIL-C-3098/42 CR64 MIL-C-3098/42 CR64 MIL-C CR64 MIL-C-3098/
42 CR64 MIL-C -3098/42 MIL-C MIL-C-3098/42 which CR64 MIL-C CR64 MIL-C -3098/42 which which CR64 MIL-C
Restrictions 5985-00-543-1850
5985-00-543-1850 is a Radio Frequency Transmission Line Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a US Munitions List Item and must be mutilated to scrap. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains Silver.
Import and Export 5985-00-543-1850
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-00-543-1850
- US Air Force (FXGX)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5985-00-543-1850
- Part Number
- Manufacturer
- Status
- L218873-6
- Manufacturer
- 06845 - Raytheon Company (Active)
- Primary Buy
- Primary Buy
- CR64
- 62165 - Arrowsmith Shelburne Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 300-11173
- 62165 - Arrowsmith Shelburne Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- CR64-500HM1Z0V
- 62165 - Arrowsmith Shelburne Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5985-00-543-1850
- Characteristic
- Specifications
- FIIG
- Specifications
- A158A0
- Actuator Operating Method [AKPC]
- Relay
- Actuator Voltage In Volts [AKPJ]
- 120.0 Nominal

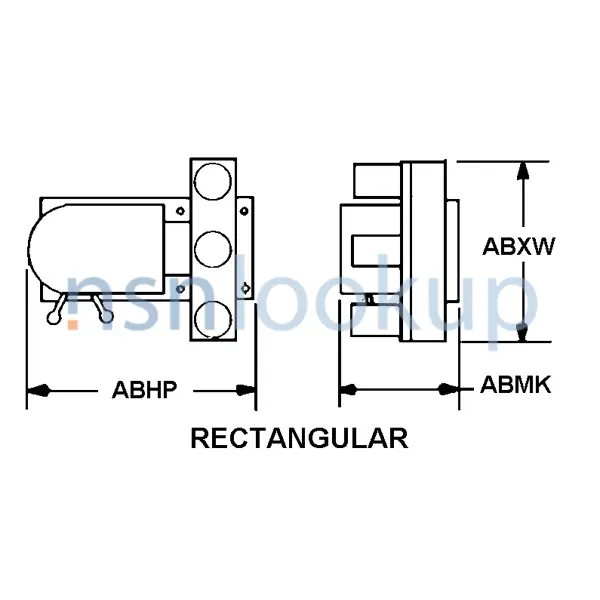

- Body Style [AAQL]
- Rectangular
- Coaxial Connector Series Designation [AHUC]
- Bnc
- Connector End Design [AHUD]
- Female
- Coupling Position Quantity [AKRC]
- 3
- End Item Identification [AGAV]
- Radar Set,An/Fps-18
- Material [MATT]
- Aluminum Alloy Body
- Material [MATT]
- Aluminum Alloy Connector(S)
- Material [MATT]
- Aluminum Alloy Cover
- Minimum Crosstalk Rating In Decibels [AKNV]
- 35.0 Single
- Mounting Facility Pattern [CQYJ]
- Four Position Rectangular Single Mounting Facility Pattern
- Mounting Facility Type And Quantity [AXHR]
- 4 Threaded Hole
- Nominal Thread Size [CQJX]
- 0.112 Inches Mounting Facility Hole
- Frequency Rating [ACZB]
- 0.0 Megahertz Minimum And 400.0 Megahertz Maximum Single Frequency Crosstalk Reference
- Frequency Rating [ACZB]
- 0.0 Megahertz Minimum And 400.0 Megahertz Maximum Single Frequency Operating
- Insertion Loss In Decibels [AHTX]
- 0.20 Single
- Longest Vertical Distance Between Mounting Centers [AFDV]
- 0.500 Inches Nominal Single Mounting Facility Pattern
- Longest Horizontal Distance Between Mounting Centers [AFDS]
- 0.875 Inches Nominal Single Mounting Facility Pattern
- Pole Quantity [AKPX]
- 1
- Precious Material [PRMT]
- Silver
- Precious Material And Location [PMLC]
- Tubing Silver
- Rf Power Handling Capability [AKNF]
- 100.0 Watts Average Single
- Overall Height [ABKW]
- 2.000 Inches Nominal
- Overall Length [ABHP]
- 2.312 Inches Maximum
- Overall Width [ABMK]
- 1.203 Inches Minimum And 1.235 Inches Maximum
- Voltage Standing Wave Ratio [AHTW]
- 1.30 Single
- Surface Treatment [SFTT]
- Nickel Body All Surfaces
- Surface Treatment [SFTT]
- Nickel Cover All Surfaces
- Surface Treatment [SFTT]
- Silver Connector(S) All Surfaces
- Switch Operation Sequence [AKPN]
- Makes Before Breaks
- Switch Return Mechanism Type [AKPQ]
- Fail-Safe
- Switch Type [AEEA]
- Nontransfer
- Terminal Type And Quantity [TTQY]
- 2 Tab, Solder Lug And 3 Receptacle, Coaxial
- Thread Class [AAJD]
- 2B Mounting Facility Hole
- Thread Quantity Per Inch [CMLP]
- 40 Mounting Facility Hole
- Thread Series Designator [THSD]
- Unc Mounting Facility Hole
- Throw Quantity [AKPY]
- 2
DLA Procurement Analysis 5985-00-543-1850
Management Data 5985-00-543-1850
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Mar 2020
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- EH
- ELECTRONIC COMPONENTS
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5985-00-543-1850
Freight Information 5985-00-543-1850
5985-00-543-1850 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5985-00-543-1850 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5985-00-543-1850 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5985-00-543-1850 is not classified as a special type of cargo when transported by water. 5985-00-543-1850 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5985-00-543-1850
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- --
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
