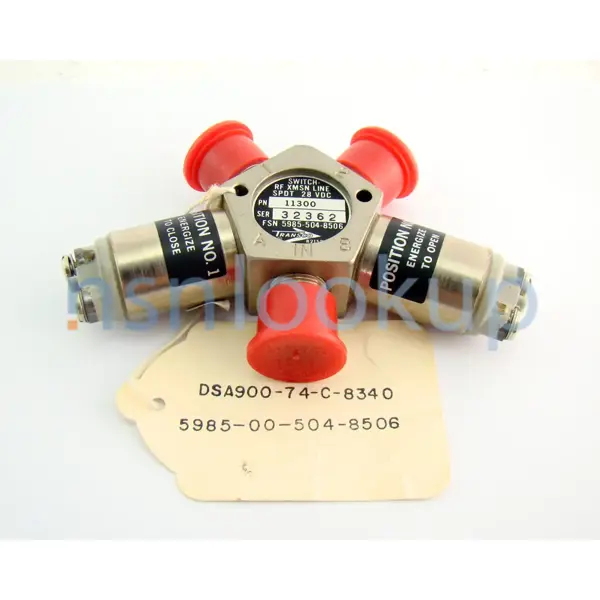

5985-00-504-8506

Radio Frequency Transmission Line Switch

5985005048506 005048506 11000 721862-6 721862-006 355-904-025 117SCR101-3 UX110LCS 1239001P3 11300 CS-321 P752000200 478170-1 8010-4-4 296-970110

An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified). View more Radio Frequency Transmission Line Switch

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
November 2023

NATO Update Count
41

NATO Data Quality

5985-00-504-8506 SWITCH,RADIO FREQUENCY TRANSMISSION LINE 5985005048506 005048506 1/2 — 5985-00-504-8506 Photo 1/2

AAQL Style 13B for 5985-00-504-8506 2/2 — NSN 5985-00-504-8506 (Identification) 2/2

Marketplace 5985-00-504-8506

Need Help?
Request a Quotation from participating marketplace vendors

Global Test Supply

11000 PESOLA 11000 Light-Line Metric Spring Scale, 1000g STK NE $43.71 Distributor Buy Now

Subscribe to View Vendor Details...

11000 SWITCH,RADIO FREQUENCY TRANSMISSION LINE 360 EA NS

Subscribe to View Vendor Details...

11000 SWITCH,RADIO FREQUENCY TRANSMISSION LINE 1 EA NS

Subscribe to View Vendor Details...

5985-00-504-8506 SWITCH,RADIO FREQUENCY TRANSMISSION LINE 6 EA NS

11300 SWITCH,RADIO FREQUENCY TRANSMISSION LINE 1 EA NS

Subscribe to View Vendor Details...

11300 SWITCH,RADIO FREQUENCY TRANSMISSION LINE 18 EA NS

Subscribe to View Vendor Details...

11300 SWITCH,RADIO FREQUENCY TRANSMISSION LINE 94 EA NS

11000 SWITCH,RADIO FREQUENCY TRANSMISSION LINE 3 EA NS

Subscribe to View Vendor Details...

11300 SWITCH,RADIO FREQUENCY TRANSMISSION LINE 1 EA NS

Subscribe to View Vendor Details...

11000 SWITCH,RADIO FREQUENCY TRANSMISSION LINE RQST NS

Subscribe to View Vendor Details...

11000 SWITCH,RADIO FREQUENCY TRANSMISSION LINE 1 EA NS

Subscribe to View Vendor Details...

11300 SWITCH,RADIO FREQUENCY TRANSMISSION LINE RQST NS

Subscribe to View Vendor Details...

12598-CS-321, SWITCH,RADIO FREQUENCY TRANSMISSION LINE RQST NS

Subscribe to View Vendor Details...

11300 SWITCH,RADIO FREQUENCY TRANSMISSION LINE 1 EA NS

Subscribe to View Vendor Details...

11300 SWITCH,RADIO FREQUENCY TRANSMISSION LINE 1 EA NS

Subscribe to View Vendor Details...

11-300 SWITCH,RADIO FREQUENCY TRANSMISSION LINE 1020 EA NS

Subscribe to View Vendor Details...

110-00 SWITCH,RADIO FREQUENCY TRANSMISSION LINE 14 EA NS

Subscribe to View Vendor Details...

11300 SWITCH,RADIO FREQUENCY TRANSMISSION LINE 1 EA NS

Updated Every Day

5985-00-504-8506 RQST NE

Updated Every Day

5985-00-504-8506 RQST

Updated Every Day

5985-00-504-8506 RQST NE

Restrictions 5985-00-504-8506

5985-00-504-8506 is a Radio Frequency Transmission Line Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.

Import and Export 5985-00-504-8506

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5985-00-504-8506

US Army (A918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A196
Supplementary Receivers:: CL; AMC 1 AMSC C IMC Z IMCACTY CD

US Air Force (FXGX)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXTX; AMC 1 AMSC C IMC Z IMCACTY SX

NASA (G280)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Navy (N9BN)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NIND
Supplementary Collaborators:: GTKEHD; AMC 1 AMSC C IMC Z IMCACTY GH

Poland (WP01)
Effective Date:: 1 Jun 2007

Brazil (YA01)
Effective Date:: 1 Jan 2002

Spain (YB01)
Effective Date:: 1 Apr 1991

Australia (ZA01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Jan 2015

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Jul 1997

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Nov 1998

Approved Sources 5985-00-504-8506

Part Number
Manufacturer
Status
721862-6: 05869 - Raytheon Company (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
11000: 00471 - Dow-Key Microwave Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
721862-006: 82577 - Raytheon Company (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 1
355-904-025: 07421 - L3harris Interstate Electronics (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
117SCR101-3: 26512 - Northrop Grumman Systems Corporation (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
721862-006: 05869 - Raytheon Company (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 1
UX110LCS: 14135 - E And M Laboratories Div Of Trak (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
1239001P3: 94117 - Bae Systems Information And (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
11300: 00471 - Dow-Key Microwave Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
CS-321: 12598 - Rlc Electronics, Inc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC A
P752000200: 01281 - Trw Electronics And Defense Sector (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
11300: 50140 - K&L Microwave Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
11300: 82152 - Fisica Applied Technologies, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
478170-1: 49671 - Lockheed Martin Corporation (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
11000: 50140 - K&L Microwave Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
8010-4-4: 54717 - Mbf Microwave, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
296-970110: 89372 - Rockwell International Corp North (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 1
11000: 82152 - Fisica Applied Technologies, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
P752000200: 16786 - F E L Corp (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5

Datasheet 5985-00-504-8506

Characteristic
Specifications
FIIG: A158A0
Actuator Current Type And Rating In Amps [AKPE]: 0.23 Dc Nominal
Actuator Voltage In Volts [AKPJ]: 28.0 Nominal
Body Style [AAQL]: Rectangular
Coaxial Connector Series Designation [AHUC]: N
Connector End Design [AHUD]: Female
Coupling Position Quantity [AKRC]: 3
Operating Temp Range [AFGA]: -54.0/+85.0 Deg Celsius
Pole Quantity [AKPX]: 1
Rf Maximum Voltage Rating [AKQA]: 500.0 Volts Rms
Overall Height [ABKW]: 2.380 Inches Maximum
Overall Length [ABHP]: 4.200 Inches Maximum
Overall Width [ABMK]: 0.860 Inches Maximum
Switch Operation Sequence [AKPN]: Makes Before Breaks
Switch Return Mechanism Type [AKPQ]: Fail-Safe
Switch Type [AEEA]: Nontransfer
Switching Time [AKPP]: 10.0 Milliseconds
Terminal Type And Quantity [TTQY]: 4 Screw And 3 Receptacle, Coaxial
Throw Quantity [AKPY]: 2

Weapon Systems (WSDC) 5985-00-504-8506

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5985-00-504-8506

Last Stock Position:: 8 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5985-00-504-8506

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2021: Department of the Army (DA); EA; Subscribe; 1
Sep 2021: Department of the Air Force (DF); EA; Subscribe; 1
Mar 2020: Department of the Army (DA); EA; Subscribe; 1

Army

Materiel Category and Inventory Manager:

Q: Electronics Materiel (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

TL: Other Electronics Equipment
Guardrail/Common Sensors AN/USD-9

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

EH: ELECTRONIC COMPONENTS

Price Validation Code:

N: The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Similar Supply Items to 5985-00-504-8506

Freight Information 5985-00-504-8506

5985-00-504-8506 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5985-00-504-8506 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5985-00-504-8506 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5985-00-504-8506 is not classified as a special type of cargo when transported by water. 5985-00-504-8506 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5985-00-504-8506

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; --; 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"; 85 to 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; --; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning; --; --; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: Any Suitable Fiber Box

Procurement History 5985-00-504-8506 7 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE7M521P4319: 17 Mar 2021; Subscribe; 9; Subscribe; Subscribe
SPE7M518P3983P00002: 23 Dec 2017; Subscribe; 17; Subscribe; Subscribe
SPE7M517PC003P00001: 17 Jul 2017; Subscribe; 13; Subscribe; Subscribe
SPE7M517P2453: 29 Nov 2016; Subscribe; 17; Subscribe; Subscribe
SPE7M516M4387: 12 Feb 2016; Subscribe; 15; Subscribe; Subscribe
SPE7M514M8373: 09 Jul 2014; Subscribe; 24; Subscribe; Subscribe
SPM7M513M6490: 15 Apr 2013; Subscribe; 13; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5985-00-504-8506 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5985-00-504-8506

Related Documents 5985-00-504-8506 5+ Documents (More...)

Restrictions 5985-00-504-8506

Import and Export 5985-00-504-8506

End Users 5985-00-504-8506

Approved Sources 5985-00-504-8506

Datasheet 5985-00-504-8506

Weapon Systems (WSDC) 5985-00-504-8506

DLA Procurement Analysis 5985-00-504-8506

Management Data 5985-00-504-8506

Army

Air Force

Navy

Similar Supply Items to 5985-00-504-8506

Freight Information 5985-00-504-8506

Packaging Data 5985-00-504-8506

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5985-00-504-8506 7 Records

Contracting Technical Data File (CTDF) 5985-00-504-8506 October 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
