5985-00-443-5739
Radio Frequency Transmission Line Switch
5985004435739 004435739 168784-3 FS1200-3
An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified). View more Radio Frequency Transmission Line Switch
May 2023
2
Marketplace 5985-00-443-5739
Request a Quotation from participating marketplace vendors
Related Documents 5985-00-443-5739 5+ Documents (More...)
BUY NE FedMall Updated Every Day 5985-00-443-5739 RQST NE Updated Every Day 5985-00-443-5739 RQST
Updated Every Day 5985-00-443-5739 RQST NE Related Documents 5985-00-443-5739 5+ Documents ( More...
168784 https/ https//www.nsnlookup.com /fsg-59/fsc-5985/us 5985-00-443-5739 Radio Frequency Transmission
Switch your Account Upgrade 5985-00-443-5739Radio Frequency Transmission Line Switch5985004435739 004435739
Transmission Line Switch Upgrade 5985-00-443-5739Radio Frequency Transmission Line Switch5985004435739 004435739
168784-3 FS1200 Liquid Level Switch 2910998045523998045523 Telco7025152109254 152109254 FS1200 Upgrade
168784-3 FS1200 https//www.nsnlookup.com /fsg-59/fsc-5985/us 5985-00-443-5739 Radio Frequency Transmission
Line Switch Upgrade 5985-00-443-5739Radio Frequency Transmission Line Switch5985004435739 004435739
fsc-2910/uk 2910-99-804-5523 Liquid Level Switch 2910998045523 998045523 Line Switch5985004435739 004435739
168784-3 FS1200 https//www.nsnlookup.com /fsg-59/fsc-5985/us 5985-00-443-5740 Transmission Line Switch
Restrictions 5985-00-443-5739
5985-00-443-5739 is a Radio Frequency Transmission Line Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5985-00-443-5739
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-00-443-5739
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- KE
Approved Sources 5985-00-443-5739
- Part Number
- Manufacturer
- Status
- 168784-3
- Manufacturer
- 37695 - Raytheon Company (Active)
- Primary Buy
- Primary Buy
- FS1200-3
- 07180 - Spectrum Microwave, Inc. (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5985-00-443-5739
- Characteristic
- Specifications
- FIIG
- Specifications
- A158A0
- Actuator Operating Method [AKPC]
- Manual

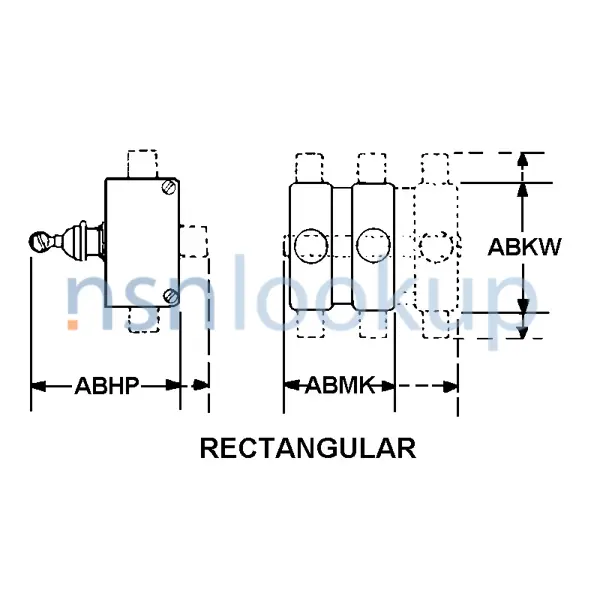

- Body Style [AAQL]
- Rectangular
- Coaxial Connector Series Designation [AHUC]
- Tnc
- Connector End Design [AHUD]
- Female
- Coupling Position Quantity [AKRC]
- 6
- Distance Between Mounting Facility Centers [AEJN]
- 1.750 Inches Nominal Single Mounting Facility Pattern
- End Item Identification [AGAV]
- Test Set,Countermeasures An/Alm-69
- Minimum Crosstalk Rating In Decibels [AKNV]
- 50.0 Single
- Mounting Facility Type And Quantity [AXHR]
- 2 Unthreaded Hole
- Mounting Facility Pattern [CQYJ]
- Two Position In-Line Single Mounting Facility Pattern
- Operating Temp Range [AFGA]
- -30.0/+55.0 Deg Celsius
- Frequency Rating [ACZB]
- 0.0 Gigahertz Minimum And 1.2 Gigahertz Maximum Single Frequency Crosstalk Reference
- Frequency Rating [ACZB]
- 0.0 Gigahertz Minimum And 1.2 Gigahertz Maximum Single Frequency Insertion Loss Reference
- Frequency Rating [ACZB]
- 0.0 Gigahertz Minimum And 1.2 Gigahertz Maximum Single Frequency Operating
- Frequency Rating [ACZB]
- 0.0 Gigahertz Minimum And 1.2 Gigahertz Maximum Single Frequency Rf Power Handling
- Frequency Rating [ACZB]
- 0.0 Gigahertz Minimum And 1.2 Gigahertz Maximum Single Frequency Voltage Standing Wave Ratio
- Insertion Loss In Decibels [AHTX]
- 0.20 Single
- Pole Quantity [AKPX]
- 2
- Rf Power Handling Capability [AKNF]
- 50.0 Watts Average Single
- Overall Height [ABKW]
- 3.080 Inches Nominal
- Overall Length [ABHP]
- 3.330 Inches Nominal
- Overall Width [ABMK]
- 2.846 Inches Nominal
- Special Features [FEAT]
- Marking Shall Include Magnavox Part Number In Lieu Of Military Part Number
- Voltage Standing Wave Ratio [AHTW]
- 1.25 Single
- Switch Operation Sequence [AKPN]
- Breaks Before Makes
- Switch Return Mechanism Type [AKPQ]
- Latching
- Switch Type [AEEA]
- Transfer
- Terminal Type And Quantity [TTQY]
- 12 Wire Lead
- Throw Quantity [AKPY]
- 2
