5985-00-373-3368
Radio Frequency Transmission Line Switch
5985003733368 003733368 1460-4 1460-4RF 52A3A103 SA-325/U 612894
An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified). View more Radio Frequency Transmission Line Switch
May 2023
25
Marketplace 5985-00-373-3368
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5985-00-373-3368 5+ Documents (More...)
SA-325-U SWITCH,RADIO FREQUENCY TRANSMISSION LINE 1 EA NS Request Quotation 1460-4 SWITCH,RADIO FREQUENCY
RQST NE Updated Every Day 5985-00-373-3368 RQST Updated Every Day 5985-00-373-3368 RQST NE Related Documents
TRANSMISS 6 EA NS Request Quotation 14604 SWITCH,RADIO FREQUENCY TRANSMISS 6 EA NS Request Quotation 1460-4
SWITCH,RADIO FREQUENCY TRANSMISS 3 EA NS Request Quotation Subscribe to View Vendor Details... 1460-4
vendors Request Updated Every Day 5330-12-364-3584 https//www.nsnlookup.com /fsg-59/fsc-5985/us 5985-00-373-3368
Frequency Transmission Line Switch 373-3368Radio Frequency Transmission Line Switch5985003733368 003733368
Frequency Transmission Line Switch 5985-00-373-3368Radio Frequency Transmission Line Switch5985003733368 003733368
1460-4RF 52A3A103 SA-325 SA-325-U SWITCH,RADIO FREQUENCY TRANSMISSION LINE 1 EA NS Request Quotation
5120-00-246-4746Vise Jaw Caps5120002464746 https/ https//www.nsnlookup.com /fsg-59/fsc-5985/us 5985-00-373-3368
1460-4RF 52A3A103 SA-325 SA-325-U SWITCH,RADIO FREQUENCY TRANSMISSION LINE 1 EA NS Request Quotation
Restrictions 5985-00-373-3368
5985-00-373-3368 is a Radio Frequency Transmission Line Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a US Munitions List Item and must be mutilated to scrap. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5985-00-373-3368
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-00-373-3368
- US Navy (N9BN)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- NIND
- Supplementary Collaborators:
- GTKE
- Thailand (YY01)
- Effective Date:
- 1 Feb 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5985-00-373-3368
- Part Number
- Manufacturer
- Status
- 1460-4
- Manufacturer
- 50140 - K&L Microwave Llc (Active)
- Primary Buy
- Primary Buy
- 1460-4RF
- 50140 - K&L Microwave Llc (Active)
- Secondary Buy
- Secondary Buy
- 52A3A103
- 80064 - Naval Ship Systems Command (Active)
- Secondary Buy
- Secondary Buy
- SA-325/U
- 80058 - Joint Electronics Type Designation (Active)
- Secondary Buy
- Secondary Buy
- 612894
- 98897 - Lockheed Martin Corp (Active)
- Secondary Buy
- Secondary Buy
- 1460-4RF
- 82152 - Fisica Applied Technologies, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1460-4
- 82152 - Fisica Applied Technologies, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5985-00-373-3368
- Characteristic
- Specifications
- FIIG
- Specifications
- A158A0
- Actuator Current Type And Rating In Amps [AKPE]
- 3.0 Dc Maximum
- Actuator Operating Method [AKPC]
- Motor
- Actuator Voltage In Volts [AKPJ]
- 18.0 Minimum And 30.0 Maximum

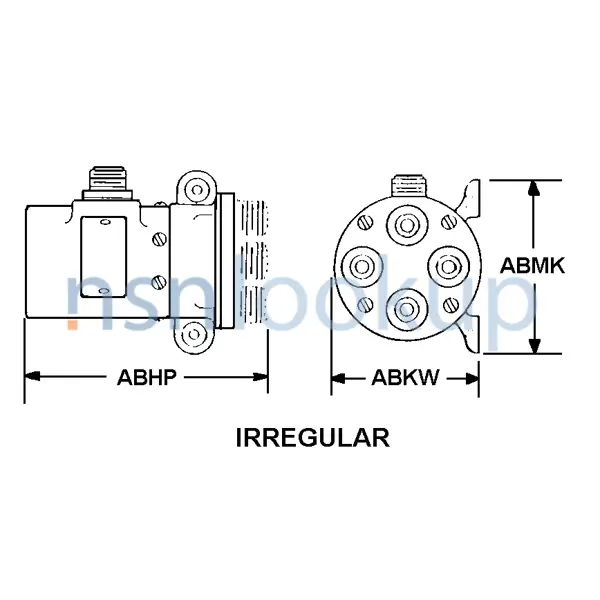

- Body Style [AAQL]
- Irregular
- Coaxial Connector Series Designation [AHUC]
- N
- Connector End Design [AHUD]
- Female
- Coupling Position Quantity [AKRC]
- 4
- Material [MATT]
- Steel Body
- Minimum Crosstalk Rating In Decibels [AKNV]
- 60.0 Single
- Mounting Facility Pattern [CQYJ]
- Four Position Rectangular Single Mounting Facility Pattern
- Mounting Facility Type And Quantity [AXHR]
- 4 Threaded Hole
- Nominal Thread Size [CQJX]
- 0.190 Inches Mounting Facility Hole
- Operating Temp Range [AFGA]
- -59.0/+85.0 Deg Celsius
- Frequency Rating [ACZB]
- 0.0 Gigahertz Minimum And 12.4 Gigahertz Maximum Single Frequency Crosstalk Reference
- Frequency Rating [ACZB]
- 0.0 Gigahertz Minimum And 12.4 Gigahertz Maximum Single Frequency Insertion Loss Reference
- Frequency Rating [ACZB]
- 0.0 Gigahertz Minimum And 12.4 Gigahertz Maximum Single Frequency Operating
- Frequency Rating [ACZB]
- 0.0 Gigahertz Minimum And 12.4 Gigahertz Maximum Single Frequency Voltage Standing Wave Ratio
- Insertion Loss In Decibels [AHTX]
- 0.50 Single
- Longest Horizontal Distance Between Mounting Centers [AFDS]
- 1.187 Inches Nominal Single Mounting Facility Pattern
- Longest Vertical Distance Between Mounting Centers [AFDV]
- 0.815 Inches Nominal Single Mounting Facility Pattern
- Pole Quantity [AKPX]
- 1
- Overall Height [ABKW]
- 3.547 Inches Nominal
- Overall Length [ABHP]
- 7.313 Inches Nominal
- Overall Width [ABMK]
- 3.000 Inches Nominal
- Voltage Standing Wave Ratio [AHTW]
- 1.30 Single
- Surface Treatment [SFTT]
- Paint Body Outside Surfaces
- Switch Operation Sequence [AKPN]
- Makes Before Breaks
- Switch Type [AEEA]
- Nontransfer
- Terminal Type And Quantity [TTQY]
- 1 Connector, Receptacle And 4 Receptacle, Coaxial
- Thread Class [AAJD]
- 2B Mounting Facility Hole
- Thread Series Designator [THSD]
- Unf Mounting Facility Hole
- Throw Quantity [AKPY]
- 4
DLA Procurement Analysis 5985-00-373-3368
Management Data 5985-00-373-3368
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5985-00-373-3368
Freight Information 5985-00-373-3368
5985-00-373-3368 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5985-00-373-3368 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5985-00-373-3368 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5985-00-373-3368 is not classified as a special type of cargo when transported by water. 5985-00-373-3368 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5985-00-373-3368
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-P-130, Laminated and Creped Wrapping Paper
- A-A-1898, Grade II, Water Resistant Cellulosic Cushioning
- --
- ASTM-D5118, Type CF, Class Domestic, Corrugated Fiberboard Box
- No special marking
- MIL-P-130, Laminated and Creped Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
