5985-00-324-7526

Radio Frequency Transmission Line Switch

5985003247526 003247526 316-010082-3 G4010 G53P13268 CR24 K5234 316-10082-3 CR24-24VDC

An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified). View more Radio Frequency Transmission Line Switch

Managed by United States

NSN Created on 1 Jan 1961

Data Last Changed
May 2023

NATO Update Count
28

NATO Data Quality

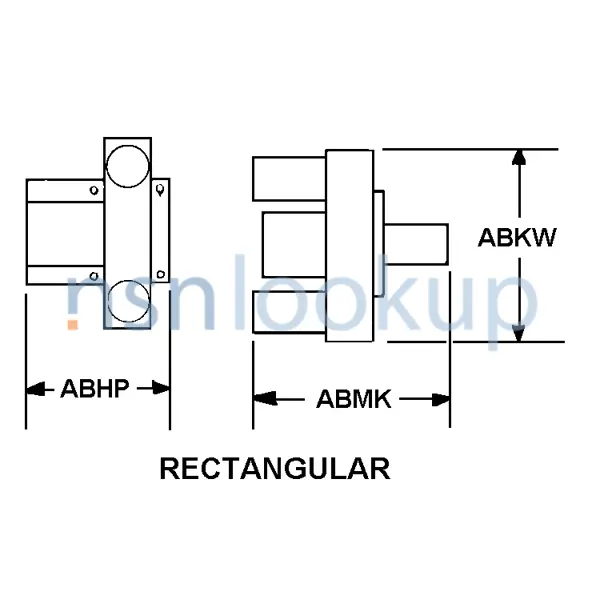

AAQL Style 20B for 5985-00-324-7526 1/1 — NSN 5985-00-324-7526 (Identification) 1/1

Marketplace 5985-00-324-7526

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

CR-24 SWITCH,RADIO FREQUENCY TRANSMISSION LINE 38 EA NS

Subscribe to View Vendor Details...

CR24 SWITCH,RADIO FREQUENCY TRANSMISSION LINE 9 EA NS

Subscribe to View Vendor Details...

CR24 SWITCH,RADIO FREQUENCY TRANSMISSION LINE RQST NS

316-10082-3 SWITCH,RADIO FREQUENCY TRANSMISSION LINE RQST NS

316-010082-3 SWITCH,RADIO FREQUENCY TRANSMISSION LINE RQST NS

CR24-24VDC SWITCH,RADIO FREQUENCY TRANSMISSION LINE RQST NS

G53P13268 SWITCH,RADIO FREQUENCY TRANSMISSION LINE RQST NS

Subscribe to View Vendor Details...

K5234 SWITCH,RADIO FREQUENCY TRANSMISSION LINE 1 EA NS

316-10082-3 SWITCH,RADIO FREQUENCY TRANSMISSION LINE 6 EA NS

Subscribe to View Vendor Details...

316-10082-3 SWITCH,RADIO FREQUENCY TRANSMISSION LINE 1 EA NS

Subscribe to View Vendor Details...

CR24 SWITCH,RADIO FREQUENCY TRANSMISSION LINE 100 EA NS

Subscribe to View Vendor Details...

316-10082-3 SWITCH,RADIO FREQUENCY TRANSMISSION LINE 6 EA NS

Updated Every Day

5985-00-324-7526 RQST NE

Updated Every Day

5985-00-324-7526 RQST

Updated Every Day

5985-00-324-7526 RQST NE

Restrictions 5985-00-324-7526

5985-00-324-7526 is a Radio Frequency Transmission Line Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.

Import and Export 5985-00-324-7526

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5985-00-324-7526

US Air Force (FXGX)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXTX; AMC 3 AMSC C IMC Z IMCACTY SX

NASA (G280)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Navy (N9BN)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NIND
Supplementary Collaborators:: KE; AMC 3 AMSC C IMC Z IMCACTY GH

Spain (YB01)
Effective Date:: 1 Feb 1994

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Aug 1999

Approved Sources 5985-00-324-7526

Part Number
Manufacturer
Status
G4010: 06481 - Northrop Grumman Systems Corporation (Active); Primary Buy; RNCC 3 RNVC 2 DAC 1
G53P13268: 94033 - Cardwell Condenser Corp (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
CR24: 62165 - Arrowsmith Shelburne Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
K5234: 09017 - Edo (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
316-010082-3: 62165 - Arrowsmith Shelburne Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
316-10082-3: 62165 - Arrowsmith Shelburne Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
CR24-24VDC: 62165 - Arrowsmith Shelburne Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
316-010082-3: 02660 - Amphenol Corp Spectra-Strip/Itd (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
316-010082-3: 77820 - Amphenol Corp (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
CR24: 74868 - Amphenol Corporation (Active); Advisory Reference; RNCC C RNVC 1 DAC 5

Datasheet 5985-00-324-7526

Characteristic
Specifications
FIIG: A158A0
Actuator Operating Method [AKPC]: Relay
Actuator Voltage In Volts [AKPJ]: 26.0 Nominal
Body Style [AAQL]: Rectangular
Coaxial Connector Series Designation [AHUC]: Bnc
Connector End Design [AHUD]: Female
Coupling Position Quantity [AKRC]: 2
Material [MATT]: Metal Body
Minimum Crosstalk Rating In Decibels [AKNV]: 60.0 Single
Mounting Facility Pattern [CQYJ]: Four Position Rectangular Single Mounting Facility Pattern
Mounting Facility Type And Quantity [AXHR]: 4 Threaded Hole
Nominal Thread Size [CQJX]: 0.112 Inches Mounting Facility Hole
Operating Temp Range [AFGA]: -65.0/+85.0 Deg Celsius
Frequency Rating [ACZB]: 0.0 Gigahertz Minimum And 3.0 Gigahertz Maximum Single Frequency Crosstalk Reference
Frequency Rating [ACZB]: 0.0 Gigahertz Minimum And 3.0 Gigahertz Maximum Single Frequency Insertion Loss Reference
Frequency Rating [ACZB]: 0.0 Gigahertz Minimum And 3.0 Gigahertz Maximum Single Frequency Operating
Insertion Loss In Decibels [AHTX]: 0.20 Single
Longest Horizontal Distance Between Mounting Centers [AFDS]: 0.875 Inches Nominal Single Mounting Facility Pattern
Longest Vertical Distance Between Mounting Centers [AFDV]: 0.688 Inches Nominal Single Mounting Facility Pattern
Pole Quantity [AKPX]: 1
Rf Power Handling Capability [AKNF]: 100.0 Watts Average Single
Overall Height [ABKW]: 1.719 Inches Nominal
Overall Length [ABHP]: 2.000 Inches Nominal
Overall Width [ABMK]: 1.563 Inches Nominal
Voltage Standing Wave Ratio [AHTW]: 1.30 Single
Surface Treatment [SFTT]: Enamel Body Outside Surfaces
Switch Operation Sequence [AKPN]: Breaks Before Makes
Switch Type [AEEA]: Nontransfer
Switching Time [AKPP]: 20.0 Milliseconds
Terminal Type And Quantity [TTQY]: 3 Receptacle, Coaxial
Thread Class [AAJD]: 2B Mounting Facility Hole
Thread Series Designator [THSD]: Unc Mounting Facility Hole
Throw Quantity [AKPY]: 2

Weapon Systems (WSDC) 5985-00-324-7526

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5985-00-324-7526

DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5985-00-324-7526

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Air Force (DF); EA; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); EA; Subscribe; 1
Mar 2020: Department of the Air Force (DF); EA; Subscribe; 1

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

EH: ELECTRONIC COMPONENTS

Price Validation Code:

N: The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Similar Supply Items to 5985-00-324-7526

Freight Information 5985-00-324-7526

5985-00-324-7526 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5985-00-324-7526 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5985-00-324-7526 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5985-00-324-7526 is not classified as a special type of cargo when transported by water. 5985-00-324-7526 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5985-00-324-7526

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; --; Over 10lb; Less than 85G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; --; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning; --; --; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
