5985-00-276-3213

Radio Frequency Transmission Line Switch

5985002763213 002763213 324-011442-0 651806-006 691-10-110 1239017P2 322-11442 CS1060ND 266-0094-00

An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified). View more Radio Frequency Transmission Line Switch

Managed by United States

NSN Created on 8 Jan 1968

Data Last Changed
August 2023

NATO Update Count
27

NATO Data Quality

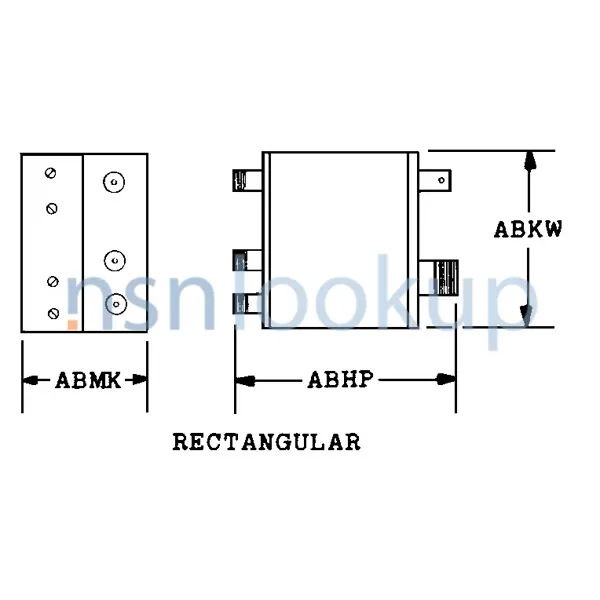

AAQL Style 41B for 5985-00-276-3213 1/1 — NSN 5985-00-276-3213 (Identification) 1/1

Marketplace 5985-00-276-3213

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

322-11442 SWITCH,RADIO FREQUENCY TRANSMISSION LINE RQST NS

Updated Every Day

5985-00-276-3213 RQST NE

Updated Every Day

5985-00-276-3213 RQST

Updated Every Day

5985-00-276-3213 RQST NE

Restrictions 5985-00-276-3213

5985-00-276-3213 is a Radio Frequency Transmission Line Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a US Munitions List Item and must be mutilated to scrap. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item contains Silver.

Import and Export 5985-00-276-3213

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5985-00-276-3213

US Army (A918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A196
Supplementary Receivers:: CL; AMC 1 AMSC H IMC Z IMCACTY CD

US Coast Guard (C911)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C007; AMC 1 AMSC H

US Air Force (FXGX)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXTX; AMC 1 AMSC H IMC Z IMCACTY SX

US Navy (N9BN)
Effective Date:: 1 Apr 2006
Former MOE Rule:: N9ND
Supplementary Collaborators:: GTKEHD; AMC 1 AMSC H IMC Z IMCACTY GH

MOE Rule:: S911
Effective Date:: 1 Apr 2006
Former MOE Rule:: S007; AMC 1 AMSC H IMC Z IMCACTY XN

Portugal (ZP01)
Effective Date:: 1 Jan 2000

Approved Sources 5985-00-276-3213

Part Number
Manufacturer
Status
266-0094-00: 13499 - Rockwell Collins, Inc. (Active); Primary Buy; RNCC 3 RNVC 2 DAC 1
651806-006: 12436 - Bae Systems Information And (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
691-10-110: 81413 - Bae Systems Information And (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
1239017P2: 94117 - Bae Systems Information And (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
322-11442: 62165 - Arrowsmith Shelburne Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
CS1060ND: 62165 - Arrowsmith Shelburne Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
266-0094-00: 84023 - Almo Electronics Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
324-011442-0: 02660 - Amphenol Corp Spectra-Strip/Itd (Replaced); Advisory Reference; RNCC C RNVC 1 DAC 5

Datasheet 5985-00-276-3213

Characteristic
Specifications
FIIG: A158A0
Actuator Operating Method [AKPC]: Manual
Body Style [AAQL]: Rectangular
Coaxial Connector Series Designation [AHUC]: Bnc
Connector End Design [AHUD]: Female
Coupling Position Quantity [AKRC]: 7
Minimum Crosstalk Rating In Decibels [AKNV]: 100.0 Single
Mounting Facility Type And Quantity [AXHR]: 3 Threaded Hole
Mounting Facility Pattern [CQYJ]: Six Position Circular Single Mounting Facility Pattern
Nominal Thread Size [CQJX]: 0.138 Inches Mounting Facility Hole
Operating Temp Range [AFGA]: -55.0/+85.0 Deg Celsius
Frequency Rating [ACZB]: 0.0 Gigahertz Minimum And 3.5 Gigahertz Maximum Single Frequency Crosstalk Reference
Frequency Rating [ACZB]: 0.0 Gigahertz Minimum And 3.5 Gigahertz Maximum Single Frequency Insertion Loss Reference
Frequency Rating [ACZB]: 0.0 Gigahertz Minimum And 3.5 Gigahertz Maximum Single Frequency Operating
Frequency Rating [ACZB]: 0.0 Gigahertz Minimum And 3.5 Gigahertz Maximum Single Frequency Rf Power Handling
Frequency Rating [ACZB]: 0.0 Gigahertz Minimum And 3.5 Gigahertz Maximum Single Frequency Voltage Standing Wave Ratio
Insertion Loss In Decibels [AHTX]: 0.20 Single
Pole Quantity [AKPX]: 1
Precious Material And Location [PMLC]: Contacts Silver
Precious Material [PRMT]: Silver
Rf Power Handling Capability [AKNF]: 100.0 Watts Average Single
Overall Height [ABKW]: 2.000 Inches Nominal
Overall Length [ABHP]: 2.219 Inches Nominal
Overall Width [ABMK]: 2.000 Inches Nominal
Special Features [FEAT]: Metal Parts Are Silver Plated
Voltage Standing Wave Ratio [AHTW]: 1.35 Single
Switch Operation Sequence [AKPN]: Makes Before Breaks
Switch Type [AEEA]: Nontransfer
Terminal Type And Quantity [TTQY]: 7 Receptacle, Coaxial
Thread Class [AAJD]: 2B Mounting Facility Hole
Thread Series Designator [THSD]: Unc Mounting Facility Hole
Throw Quantity [AKPY]: 6

Weapon Systems (WSDC) 5985-00-276-3213

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5985-00-276-3213

Last Stock Position:: 6 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5985-00-276-3213

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); EA; Subscribe; 1
Mar 2020: Department of the Air Force (DF); EA; Subscribe; 1

Army

Materiel Category and Inventory Manager:

Q: Electronics Materiel (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

EH: ELECTRONIC COMPONENTS

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Similar Supply Items to 5985-00-276-3213

Freight Information 5985-00-276-3213

5985-00-276-3213 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5985-00-276-3213 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5985-00-276-3213 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5985-00-276-3213 is not classified as a special type of cargo when transported by water. 5985-00-276-3213 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5985-00-276-3213

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; --; Over 10lb; Less than 85G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; --; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning; --; --; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: Any Suitable Fiber Box

Contracting Technical Data File (CTDF) 5985-00-276-3213 October 2021

Criticality and Quality

Critical Item Code:
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: S

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...
