5985-00-261-7587

Radio Frequency Transmission Line Switch

5985002617587 002617587 SM-C-920583 DM863BH-6 2137276G001 DM863H6

An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified). View more Radio Frequency Transmission Line Switch

Managed by United States

NSN Created on 27 Jun 1973

Data Last Changed
May 2023

NATO Update Count
3

NATO Data Quality

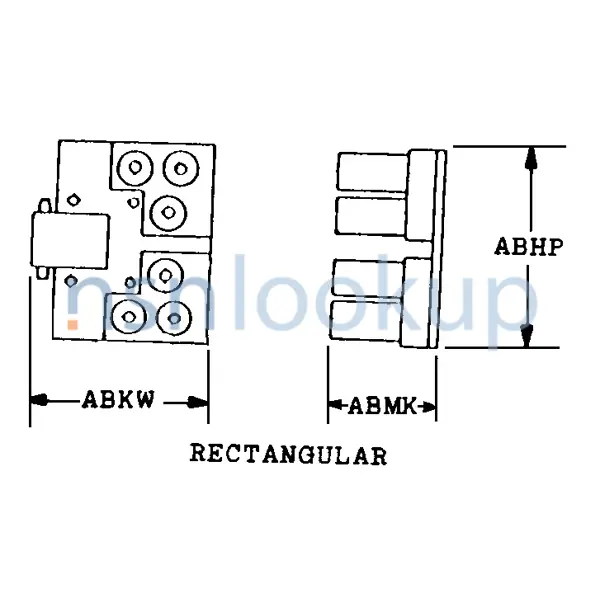

AAQL Style 47B for 5985-00-261-7587 1/1 — NSN 5985-00-261-7587 (Identification) 1/1

Marketplace 5985-00-261-7587

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

DM863BH6 SWITCH,RADIO FREQUENCY TRANSMISSION LINE 1 EA NS

FedMall

Updated Every 15 Minutes

5985-00-261-7587 BUY NE FedMall

Updated Every Day

5985-00-261-7587 RQST NE

Restrictions 5985-00-261-7587

5985-00-261-7587 is a Radio Frequency Transmission Line Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.

Import and Export 5985-00-261-7587

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5985-00-261-7587

US Army (A918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A196
Supplementary Receivers:: CL; AMC 1 AMSC G IMC Z IMCACTY CD

US Air Force (FXGX)
Effective Date:: 1 Apr 2006; AMC 1 AMSC G IMC Z IMCACTY SX

Approved Sources 5985-00-261-7587

Part Number
Manufacturer
Status
SM-C-920583: 80063 - Us Army Communications & Electronics (Active); Primary Buy; RNCC 3 RNVC 2 DAC A
DM863BH-6: 11332 - General Microwave Corporation (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
2137276G001: 28527 - L3harris Technologies, Inc. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 1
DM863H6: 11332 - General Microwave Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6

Datasheet 5985-00-261-7587

Characteristic
Specifications
FIIG: A158A0
Actuator Operating Method [AKPC]: Relay
Actuator Voltage In Volts [AKPJ]: 15.0 Nominal
Body Style [AAQL]: Rectangular
Coaxial Connector Series Designation [AHUC]: Sma
Connector End Design [AHUD]: Female And Male
Coupling Position Quantity [AKRC]: 3
Distance Between Mounting Facility Centers [AEJN]: 1.000 Inches Nominal Single Mounting Facility Pattern
Minimum Crosstalk Rating In Decibels [AKNV]: 70.0 Single
Mounting Facility Type And Quantity [AXHR]: 2 Unthreaded Hole
Mounting Facility Pattern [CQYJ]: Two Position In-Line Single Mounting Facility Pattern
Operating Temp Range [AFGA]: -65.0/+125.0 Deg Celsius
Frequency Rating [ACZB]: 0.2 Gigahertz Minimum And 18.0 Gigahertz Maximum Single Frequency Operating0.2 Gigahertz Minimum And 18.0 Gigahertz Maximum Single Frequency Rf Power Handling0.2 Gigahertz Minimum And 18.0 Gigahertz Maximum Single Frequency Voltage Standing Wave Ratio0.2 Gigahertz Minimum And 18.0 Gigahertz Maximum Single Frequency Insertion Loss Reference0.2 Gigahertz Minimum And 18.0 Gigahertz Maximum Single Frequency Crosstalk Reference
Insertion Loss In Decibels [AHTX]: 3.00 Single
Pole Quantity [AKPX]: 1
Rf Power Handling Capability [AKNF]: 5.0 Watts Average Single
Overall Height [ABKW]: 1.540 Inches Nominal
Overall Length [ABHP]: 1.940 Inches Nominal
Overall Width [ABMK]: 0.510 Inches Nominal
Unthreaded Mounting Hole Diameter [AEBV]: 0.101 Inches Nominal
Voltage Standing Wave Ratio [AHTW]: 2.20 Single
Switching Time [AKPP]: 0.0001 Microseconds
Switch Operation Sequence [AKPN]: Breaks Before Makes
Switch Type [AEEA]: Nontransfer
Terminal Type And Quantity [TTQY]: 3 Receptacle, Coaxial And 4 Solder Stud
Throw Quantity [AKPY]: 1
