5985-00-252-2598

Variable Attenuator

5985002522598 002522598 723786-002 AUM15A11725 AR3834-2 723786-2

A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified). View more Variable Attenuator

Managed by United States

NSN Created on 18 Jun 1973

Data Last Changed
May 2023

NATO Update Count
15

NATO Data Quality

AAQL Style 13A for 5985-00-252-2598 1/1 — NSN 5985-00-252-2598 (Identification) 1/1

Marketplace 5985-00-252-2598

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

5985-00-252-2598 ATTENUATOR,VARIABLE 2 EA NS

723786-2 ATTENUATOR,VARIABLE 1 EA NS

AR3834-2 ATTENUATOR,VARIABLE 1 EA NS

Updated Every Day

5985-00-252-2598 RQST NE

Restrictions 5985-00-252-2598

5985-00-252-2598 is a Variable Attenuator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.

Import and Export 5985-00-252-2598

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5985-00-252-2598

US Army (A918)
Effective Date:: 1 Nov 2005
Former MOE Rule:: A196
Supplementary Receivers:: CL; AMC 1 AMSC L IMC Z IMCACTY CL

US Navy (N9BN)
Effective Date:: 1 Nov 2005
Former MOE Rule:: N9ND
Supplementary Collaborators:: HD; AMC 1 AMSC L IMC Z IMCACTY HD

Spain (YB01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Dec 2006

Approved Sources 5985-00-252-2598

Part Number
Manufacturer
Status
AUM15A11725: 12457 - Merrimac Industries Inc (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AR3834-2: 09992 - Antenna & Radome Research Associates (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
723786-2: 05869 - Raytheon Company (Active); Vendor Drawing; RNCC 7 RNVC 2 DAC 1
723786-002: 05869 - Raytheon Company (Active); Advisory Reference; RNCC C RNVC 1 DAC 6

Datasheet 5985-00-252-2598

Characteristic
Specifications
FIIG: A223A0
Adjustment Device Type And Quantity [CQTQ]: 1 Shaft
Attenuation Variation Method [ASYF]: Continuous

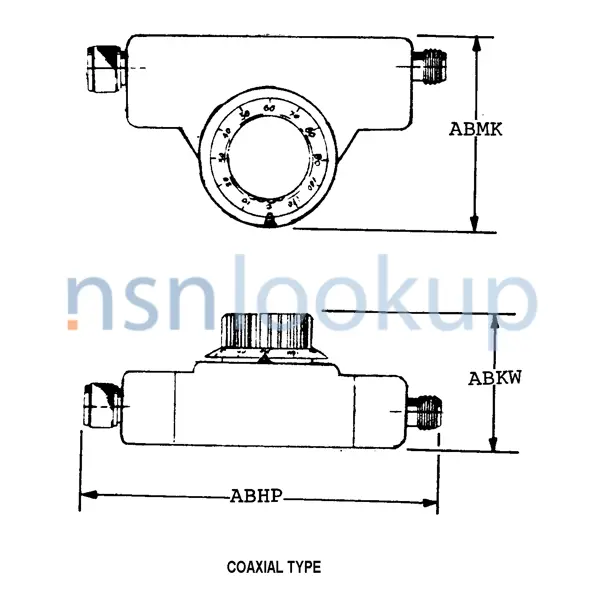

Body Style [AAQL]: Coaxial Type
Center To Center Distance Between Mounting Facilities Parallel To Length [ABKQ]: 0.660 Inches Nominal
Center To Center Distance Between Mounting Facilities Parallel To Width [ABKR]: 0.840 Inches Nominal
Coaxial Connector Series Designation [AHUC]: Osm
Frequency Range [BNGR]: 2.000 Gigahertz Minimum And 8.000 Gigahertz Maximum
Application Design [AAFS]: Transmission Line
Mounting Facility Type And Quantity [AXHR]: 4 Unthreaded Hole
Mounting Facility Pattern [CQYJ]: Four Position Rectangular
Overall Attenuation Range In Decibels [ASYD]: +0.0/+20.0
Impedance Rating In Ohms [CTGG]: 50.0 Input-Output
Insertion Loss At Minimum Attenuation In Maximum Decibels [ASYC]: 0.5
Power Rating [AJDB]: 2.0 Watts Peak
Shaft Diameter [ABWV]: 0.250 Inches Nominal
Shaft Type [CRSJ]: Round, Slotted
Shaft Length [ABXF]: 0.720 Inches Nominal
Overall Height [ABKW]: 1.720 Inches Nominal
Overall Length [ABHP]: 2.470 Inches Minimum And 2.530 Inches Maximum
Overall Width [ABMK]: 0.500 Inches Nominal
Unthreaded Mounting Hole Diameter [AEBV]: 0.090 Inches Nominal
Voltage Standing Wave Ratio [AHTW]: 1.50
Terminal Type And Quantity [TTQY]: 2 Connector, Coaxial, Female
