5985-00-224-2430
Variable Attenuator
5985002242430 002242430 933
A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified). View more Variable Attenuator
May 2023
15
Marketplace 5985-00-224-2430
Request a Quotation from participating marketplace vendors
Related Documents 5985-00-224-2430 2+ Documents (More...)
EA NS Request Quotation 933 ATTENUATOR,VARIABLE 187 EA NS Request Quotation Updated Every Day 5985-00
-224-2430 RQST NE Updated Every Day 5985-00-224-2430 RQST Updated Every Day 5985-00-224-2430 RQST NE
Restrictions 5985-00-224-2430
IUID Required
5985-00-224-2430 is a Variable Attenuator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5985-00-224-2430
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-00-224-2430
- US Air Force (FGG4)
- Effective Date:
- 1 Sep 2000
- Former MOE Rule:
- FEE4
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5985-00-224-2430
- Part Number
- Manufacturer
- Status
- 933
- Manufacturer
- 93459 - Spectrum Control Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 5985-00-224-2430
- Characteristic
- Specifications
- FIIG
- Specifications
- A223A0
- Adjustment Device Type And Quantity [CQTQ]
- 1 Knob
- Attenuation Variation Method [ASYF]
- Continuous

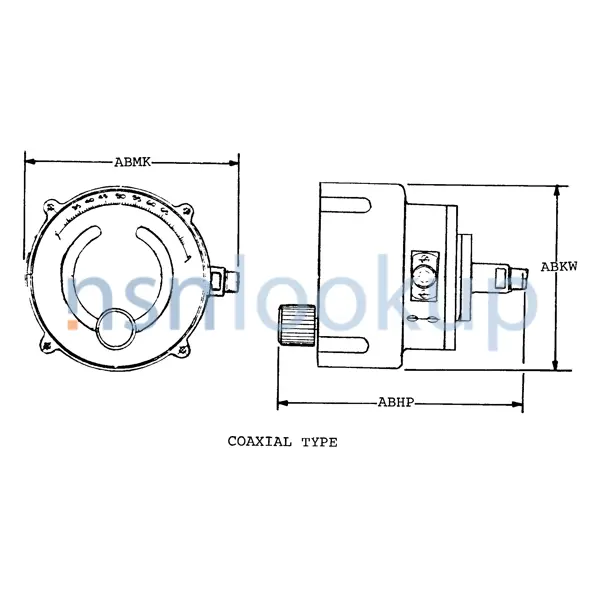

- Body Style [AAQL]
- Coaxial Type
- Coaxial Connector Series Designation [AHUC]
- N
- Frequency Range [BNGR]
- 1.000 Gigahertz Minimum And 3.000 Gigahertz Maximum
- Application Design [AAFS]
- Transmission Line
- Operating Temp Range [AFGA]
- -20.0/+150.0 Deg Fahrenheit
- Overall Attenuation Accuracy In Decibels [BQNR]
- -0.25/+0.25
- Overall Attenuation Range In Decibels [ASYD]
- +0.0/+114.0
- Insertion Loss At Minimum Attenuation In Maximum Decibels [ASYC]
- 4.0
- Power Rating [AJDB]
- 2.0 Watts Peak
- Overall Height [ABKW]
- 4.160 Inches Nominal
- Overall Length [ABHP]
- 5.380 Inches Nominal
- Overall Width [ABMK]
- 4.940 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 2 Connector, Coaxial, Female
Management Data 5985-00-224-2430
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2023
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Sep 2000
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Air Force (DF)
- L
- X
- Formerly 6625
- X
Similar Supply Items to 5985-00-224-2430
Freight Information 5985-00-224-2430
5985-00-224-2430 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 060535. A Sub NMFC of Z. It has a NMFC Description of AERIAL/ANTENNAS DIRECTIONAL. 5985-00-224-2430 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5985-00-224-2430 is rated as class 200 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 06330 which rates the freight between FCL and LCL. 5985-00-224-2430 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5985-00-224-2430 is not classified as a special type of cargo when transported by water. 5985-00-224-2430 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
