5985-00-202-0258
Variable Attenuator
5985002020258 002020258 2Z394-78 B2678
A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified). View more Variable Attenuator
May 2023
3
Marketplace 5985-00-202-0258
Request a Quotation from participating marketplace vendors
Related Documents 5985-00-202-0258 5+ Documents (More...)
(Identification) 1/2 NSN 5985-00-202-0258 (Identification) 2/2 - - 1.
BUY NE FedMall Updated Every Day 5985-00-202-0258 RQST NE Updated Every Day 5985-00-202-0258 RQST
/www.nsnlookup.com /fsg-59/fsc-5995/uk 5995-99-630-9000 Powe Cable Assembly 5995996309000996309000 B2678
www.nsnlookup.com /fsg-59/fsc-5995/uk 5995-99-630-9000 https//www.nsnlookup.com /fsg-59/fsc-5985/us 5985-00-202-0258
www.nsnlookup.com /fsg-59/fsc-5999/uk 5999-99-826-6554 https//www.nsnlookup.com /fsg-59/fsc-5985/us 5985-00-202-0258
Variable Attenuator 5985002020258 002020258 www.nsnlookup.com /fsg-59/fsc-5985/us 5985-00-202-0258
//www.nsnlookup.com /fsg-59/fsc-5985/us 5985-00-202-0258 Variable Attenuator 5985002020258 002020258
www.nsnlookup.com /fsg-59/fsc-5985/us 5985-00-202-0258 https//www.nsnlookup.com /fsg-59/fsc-5965/uk 5965
Restrictions 5985-00-202-0258
5985-00-202-0258 is a Variable Attenuator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5985-00-202-0258
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-00-202-0258
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
Approved Sources 5985-00-202-0258
- Part Number
- Manufacturer
- Status
- B2678
- Manufacturer
- 82678 - Technical Laboratories Inc (Obsolete)
- Original Design
- Original Design
- 2Z394-78
- 80063 - Us Army Communications & Electronics (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5985-00-202-0258
- Characteristic
- Specifications
- FIIG
- Specifications
- A223A0
- Adjustment Device Type And Quantity [CQTQ]
- 1 Shaft
- Attenuation Per Step In Decibels [ASYH]
- 2.0
- Attenuation Variation Method [ASYF]
- Stepped
- Body Length [ADAQ]
- 3.000 Inches Nominal
- Body Style [AAQL]
- Cylindrical W/Rear Terminals
- Distance Between Mounting Facility Centers [AEJN]
- 1.500 Inches Nominal
- Frequency Range [BNGR]
- 0.000 Kilohertz Minimum And 4.000 Kilohertz Maximum
- Application Design [AAFS]
- Audio
- Mounting Facility Type And Quantity [AXHR]
- 2 Threaded Hole
- Mounting Facility Nominal Screw Thread Diameter [CRYY]
- 0.164 Inches
- Mounting Facility Pattern [CQYJ]
- Two Position In-Line
- Mounting Facility Screw Thread Series Designator [AKEJ]
- Unc
- Mounting Thread Quantity [CGGK]
- 32 Per Inch
- Operating Temp Range [AFGA]
- -55.0/+125.0 Deg Celsius
- Overall Attenuation Accuracy In Decibels [BQNR]
- -1.00/+1.00
- Overall Attenuation Range In Decibels [ASYD]
- +0.0/+40.0
- Impedance Rating In Ohms [CTGG]
- 600.0 Input-Output
- Power Rating [AJDB]
- 500.0 Milliwatts Average

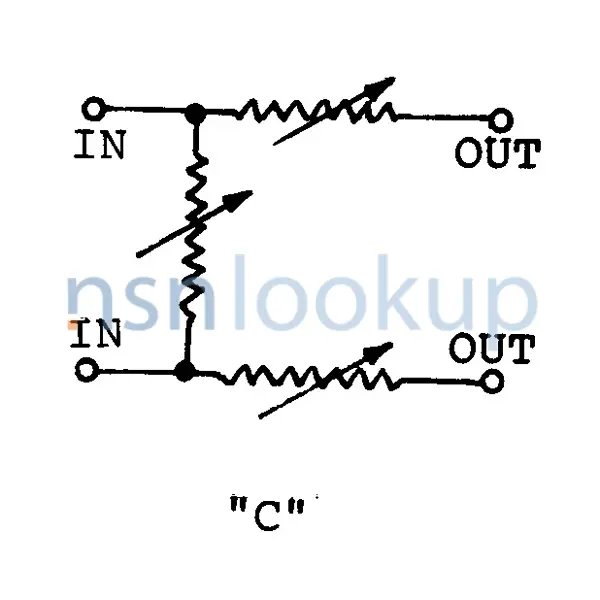

- Schematic Diagram Designator [AEBZ]
- C
- Shaft Diameter [ABWV]
- 0.250 Inches Nominal
- Shaft Type [CRSJ]
- Round
- Shaft Length [ABXF]
- 0.875 Inches Nominal
- Overall Diameter [ADAV]
- 2.750 Inches Nominal
- Overall Length [ABHP]
- 4.125 Inches Nominal
- Step Position Quantity [ASYG]
- 23
- Terminal Type And Quantity [TTQY]
- 3 Tab, Solder Lug
