5985-00-199-0217
Radio Frequency Transmission Line Switch
5985001990217 001990217 15610-12 808C10500 RAM791 15310-12 6543-628-1 31-805176-1 15310J12
An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified). View more Radio Frequency Transmission Line Switch
November 2023
11
Marketplace 5985-00-199-0217
Request a Quotation from participating marketplace vendors
Updated Every 15 Minutes
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5985-00-199-0217 5+ Documents (More...)
BUY NE FedMall Updated Every Day 5985-00-199-0217 RQST NE Updated Every Day 5985-00-199-0217 RQST
Updated Every Day 5985-00-199-0217 RQST NE Related Documents 5985-00-199-0217 5+ Documents ( More...
6459 RQST NE Related Documents 5985-00-127-6459 2 https//www.nsnlookup.com /fsg-59/fsc-5985/us 5985-00-199-0217
Radio Frequency Transmission Line Switch Documents 5985-00-199-0217 5+ Documents ( More... https
Radio Frequency Transmission Line Switch Transmission Line Switch5985001990217 001990217 15610-
12 808C10500 RAM791 15310-12 6543-628-1 31-805176 0217 Radio Frequency Transmission Line Switch 15610
Radio Frequency Transmission Line Switch BUY NE FedMall Updated Every Day 5985-00-199-0217 RQST
NE Updated Every Day 5985-00-199-0217 RQST Updated Every Day 5985-00-199-0217 RQST NE Related Documents
7410Power Supply6130994187410 994187410 130-911 https//www.nsnlookup.com /fsg-59/fsc-5985/us 5985-00-199-0217
Restrictions 5985-00-199-0217
5985-00-199-0217 is a Radio Frequency Transmission Line Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is a US Munitions List Item and must be mutilated to scrap. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5985-00-199-0217
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-00-199-0217
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
Approved Sources 5985-00-199-0217
- Part Number
- Manufacturer
- Status
- 808C10500
- Manufacturer
- 00471 - Dow-Key Microwave Llc (Active)
- Primary Buy
- Primary Buy
- 15310-12
- 00471 - Dow-Key Microwave Llc (Active)
- Secondary Buy
- Secondary Buy
- RAM791
- 00443 - Waveline Inc (Active)
- Secondary Buy
- Secondary Buy
- 15310-12
- 82152 - Fisica Applied Technologies, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 808C10500
- 50140 - K&L Microwave Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 15310-12
- 50140 - K&L Microwave Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 6543-628-1
- 21929 - Reconix Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 31-805176-1
- 07397 - General Dynamics Advanced (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 808C10500
- 82152 - Fisica Applied Technologies, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 15310J12
- 82152 - Fisica Applied Technologies, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 15610-12
- 82152 - Fisica Applied Technologies, Inc. (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5985-00-199-0217
- Characteristic
- Specifications
- FIIG
- Specifications
- A158A0
- Actuator Current Type And Rating In Amps [AKPE]
- 4.0 Dc Nominal
- Actuator Operating Method [AKPC]
- Relay
- Actuator Voltage In Volts [AKPJ]
- 28.0 Nominal

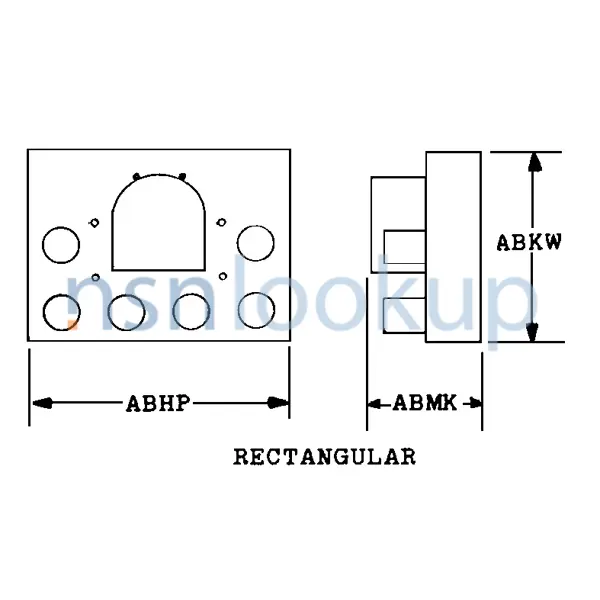

- Body Style [AAQL]
- Rectangular
- Coaxial Connector Series Designation [AHUC]
- Bnc
- Connector End Design [AHUD]
- Female
- Coupling Position Quantity [AKRC]
- 2
- Material [MATT]
- Aluminum Body
- Minimum Crosstalk Rating In Decibels [AKNV]
- 45.0 Single
- Mounting Facility Type And Quantity [AXHR]
- 4 Unthreaded Hole
- Operating Temp Range [AFGA]
- +0.0/+55.0 Deg Celsius
- Frequency Rating [ACZB]
- 0.0 Megahertz Minimum And 1000.0 Megahertz Maximum Single Frequency Operating
- Frequency Rating [ACZB]
- 0.0 Megahertz Minimum And 1000.0 Megahertz Maximum Single Frequency Rf Power Handling
- Frequency Rating [ACZB]
- 0.0 Megahertz Minimum And 1000.0 Megahertz Maximum Single Frequency Voltage Standing Wave Ratio
- Frequency Rating [ACZB]
- 0.0 Megahertz Minimum And 1000.0 Megahertz Maximum Single Frequency Crosstalk Reference
- Frequency Rating [ACZB]
- 0.0 Megahertz Minimum And 1000.0 Megahertz Maximum Single Frequency Insertion Loss Reference
- Insertion Loss In Decibels [AHTX]
- 0.25 Single
- Rf Power Handling Capability [AKNF]
- 200.0 Watts Average Single
- Overall Height [ABKW]
- 2.650 Inches Nominal
- Overall Length [ABHP]
- 1.090 Inches Nominal
- Overall Width [ABMK]
- 3.307 Inches Nominal
- Special Features [FEAT]
- Paint Finish Is Black,Mounting Holes 2 Each 0.203 In. Dia Perpendicular To Bnc Female Connectors
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.203 Inches Nominal
- Voltage Standing Wave Ratio [AHTW]
- 1.25 Single
- Surface Treatment [SFTT]
- Chromate Body Outside Surfaces And Paint Body Outside Surfaces
- Switching Time [AKPP]
- 10.0 Milliseconds
- Switch Operation Sequence [AKPN]
- Makes Before Breaks
- Switch Return Mechanism Type [AKPQ]
- Latching
- Switch Type [AEEA]
- Transfer
- Terminal Type And Quantity [TTQY]
- 4 Receptacle, Coaxial
