Variable Attenuator
5985001653128 001653128 SPEC 12380 130C1A1-600 252424 SK-358
A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified). View more Variable Attenuator
May 2023
5
Marketplace 5985-00-165-3128
Request a Quotation from participating marketplace vendors
Related Documents 5985-00-165-3128 2+ Documents (More...)
(Identification) 1/2 NSN 5985-00-165-3128 (Identification) 2/2 - - 1.
SK-358 ATTENUATOR,VARIABLE 11 EA NS Request Quotation Updated Every Day 5985-00-165-3128 RQST NE Updated
www.nsnlookup.com /fsg-99/fsc-9905/be 9905-13-115-5508 https//www.nsnlookup.com /fsg-59/fsc-5985/us 5985-00-165-3128
Variable Attenuator 5985001653128 001653128 Account Upgrade 5985-00-165-3128Variable Attenuator5985001653128
Restrictions 5985-00-165-3128
5985-00-165-3128 is a Variable Attenuator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5985-00-165-3128
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-00-165-3128
- US Army (A918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- CL
Approved Sources 5985-00-165-3128
- Part Number
- Manufacturer
- Status
- SPEC 12380
- Manufacturer
- 28057 - Shallco, Inc (Active)
- Primary Buy
- Primary Buy
- 130C1A1-600
- 28057 - Shallco, Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 252424
- 02230 - Electronics Of Clearfield Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- SK-358
- 28057 - Shallco, Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5985-00-165-3128
- Characteristic
- Specifications
- FIIG
- Specifications
- A223A0
- Adjustment Device Type And Quantity [CQTQ]
- 1 Shaft
- Attenuation Per Step In Decibels [ASYH]
- 1.0
- Attenuation Variation Method [ASYF]
- Stepped
- Body Diameter [ABPM]
- 1.844 Inches Nominal
- Body Length [ADAQ]
- 2.063 Inches Nominal
- Body Style [AAQL]
- Cylindrical W/Side Terminals
- Frequency Range [BNGR]
- 7.900 Gigahertz Minimum And 8.400 Gigahertz Maximum
- Fsc Application Data [ZZZV]
- Antennas,Waveguides,And Related Equipment
- Application Design [AAFS]
- Audio
- Mounting Facility Type And Quantity [AXHR]
- 1 Bushing
- Overall Attenuation Range In Decibels [ASYD]
- +0.0/+30.0
- Impedance Rating In Ohms [CTGG]
- 600.0 Input-Output
- Insertion Loss At Minimum Attenuation In Maximum Decibels [ASYC]
- 0.5

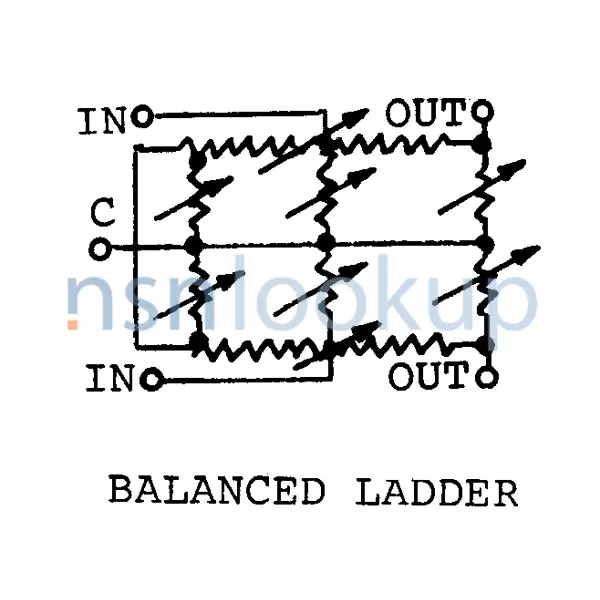

- Schematic Diagram Designator [AEBZ]
- Balanced Ladder
- Shaft Diameter [ABWV]
- 0.249 Inches Minimum And 0.251 Inches Maximum
- Shaft Type [CRSJ]
- Round
- Shaft Length [ABXF]
- 1.094 Inches Nominal
- Overall Length [ABHP]
- 3.156 Inches Nominal
- Voltage Standing Wave Ratio [AHTW]
- 1.05
- Step Position Quantity [ASYG]
- 30
- Terminal Type And Quantity [TTQY]
- 6 Tab, Solder Lug
