5985-00-158-9410
Radio Frequency Transmission Line Switch
5985001589410 001589410 SA9061S1 94CSA1-2-206 40P219441
An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified). View more Radio Frequency Transmission Line Switch
May 2023
17
Marketplace 5985-00-158-9410
Request a Quotation from participating marketplace vendors
Related Documents 5985-00-158-9410 1+ Documents (More...)
United States (US) 4. 5985-00-158-9410 Marketplace Restrictions Approved Sources Datasheet Management
SA9061S1 SWITCH,RADIO FREQUENCY TRANSMISSION LINE 2 EA NS Request Quotation Updated Every Day 5985-00
Restrictions 5985-00-158-9410
5985-00-158-9410 is a Radio Frequency Transmission Line Switch that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a US Munitions List Item and must be mutilated to scrap. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5985-00-158-9410
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-00-158-9410
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Mar 2008
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5985-00-158-9410
- Part Number
- Manufacturer
- Status
- SA9061S1
- Manufacturer
- 24022 - Teledyne Defense Electronics, Llc (Active)
- Primary Buy
- Primary Buy
- 94CSA1-2-206
- 94375 - Lax Electronics, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 40P219441
- 98738 - Herley Chicago (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5985-00-158-9410
- Characteristic
- Specifications
- FIIG
- Specifications
- A158A0
- Actuator Operating Method [AKPC]
- Relay
- Actuator Voltage In Volts [AKPJ]
- 28.0 Maximum

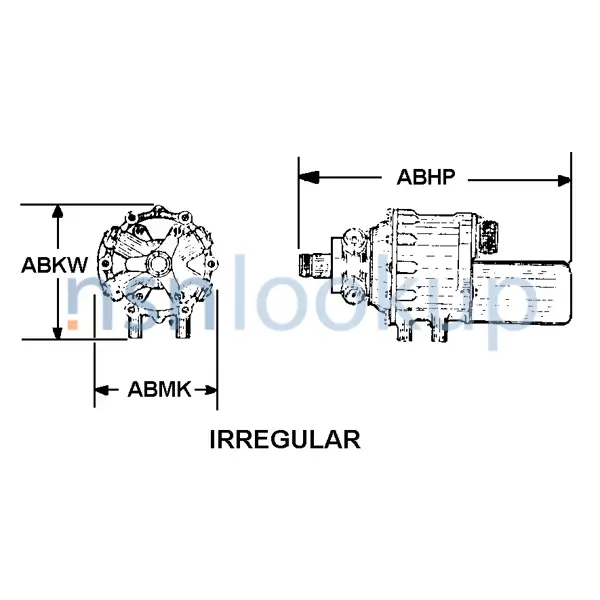

- Body Style [AAQL]
- Irregular
- Coaxial Connector Series Designation [AHUC]
- Tnc
- Coupling Position Quantity [AKRC]
- 3
- Material [MATT]
- Aluminum Body
- Minimum Crosstalk Rating In Decibels [AKNV]
- 40.0 Single
- Mounting Facility Type And Quantity [AXHR]
- 4 Threaded Hole
- Nominal Thread Size [CQJX]
- 0.112 Inches Mounting Facility Hole
- Operating Temp Range [AFGA]
- -54.0/+100.0 Deg Celsius
- Insertion Loss In Decibels [AHTX]
- 0.20 Single
- Pole Quantity [AKPX]
- 1
- Rf Maximum Voltage Rating [AKQA]
- 400.0 Volts Rms
- Rf Power Handling Capability [AKNF]
- 10.0 Watts Average Single
- Overall Height [ABKW]
- 1.875 Inches Nominal
- Overall Length [ABHP]
- 4.156 Inches Nominal
- Overall Width [ABMK]
- 1.500 Inches Nominal
- Voltage Standing Wave Ratio [AHTW]
- 1.30 Single
- Surface Treatment [SFTT]
- Cadmium Body Outside Surfaces
- Switch Operation Sequence [AKPN]
- Breaks Before Makes
- Switch Type [AEEA]
- Transfer
- Switching Time [AKPP]
- 50.0 Milliseconds
- Terminal Type And Quantity [TTQY]
- 3 Plug, Coaxial
- Thread Class [AAJD]
- 2B Mounting Facility Hole
- Thread Series Designator [THSD]
- Unc Mounting Facility Hole
- Throw Quantity [AKPY]
- 2
