5985-00-131-6749
Electrical Dummy Load
5985001316749 001316749 174860-1 MSP12
A specific electrical element or set of electrical elements that are connected together to form a fixed arrangement and used as a substitute load for terminating an electrical circuit. A dummy load contains all the essential electrical characteristics necessary to terminate the circuit but does not function in the same manner as the load which it replaces. Examples are resistors used to replace antennas, batteries, loudspeakers, or the like. Includes single port terminations of twin lead, coaxial and waveguide transmission lines as low power terminations of a section of a transmission system in a specified manner. Includes dummy loads when arranged in a group or bank. Excludes power absorbers. See also LOAD BANK, ELECTRICAL. View more Electrical Dummy Load
May 2023
6
Marketplace 5985-00-131-6749
Request a Quotation from participating marketplace vendors
Related Documents 5985-00-131-6749 5+ Documents (More...)
United States (US) 4. 5985-00-131-6749 Marketplace Restrictions Approved Sources Datasheet Management
Request a Quotation from participating marketplace vendors Request Updated Every Day 5985-00-131-6749
//www.nsnlookup.com /fsg-59/fsc-5999/uk 5999-99-400-0635 Electrical Contact Assembly 5999994000635 MSP12
www.nsnlookup.com /fsg-59/fsc-5999/uk 5999-99-400-0635 https//www.nsnlookup.com /fsg-59/fsc-5985/us 5985-00-131-6749
Electrical Dummy Load 5985001316749 001316749 $1 a day Upgrade your Account Upgrade 5985-00-131
-6749Electrical Dummy Load5985001316749 001316749 174860 www.nsnlookup.com /fsg-59/fsc-5985/us 5985-00
Electrical Dummy Load 5985001316749 001316749 $1 a day Upgrade your Account Upgrade 5985-00-131
-6749Electrical Dummy Load5985001316749 001316749 174860 a day Upgrade your Account Upgrade 5985-00-131
Electrical Dummy Load 5985001316749 001316749 $1 a day Upgrade your Account Upgrade 5985-00-131
-6749Electrical Dummy Load5985001316749 001316749 174860 a day Upgrade your Account Upgrade 5985-00-131
Restrictions 5985-00-131-6749
5985-00-131-6749 is a Electrical Dummy Load that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a US Munitions List Item and must be mutilated to scrap. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5985-00-131-6749
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-00-131-6749
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
Approved Sources 5985-00-131-6749
- Part Number
- Manufacturer
- Status
- 174860-1
- Manufacturer
- 24930 - L3harris Technologies, Inc (Active)
- Source Control
- Source Control
- MSP12
- 08040 - American Business Alliance, Inc. (Obsolete)
- Original Design
- Original Design
Datasheet 5985-00-131-6749
- Characteristic
- Specifications
- FIIG
- Specifications
- A19800
- Body Height [ADAU]
- 4.375 Inches Nominal
- Body Width [ADAT]
- 6.750 Inches Nominal
- Cooling Method [BFMF]
- Self-Cooled
- Frequency Range Rating [AFGQ]
- +3.590/+3.700 Gigahertz
- Operating Position [ARNH]
- All Positions
- Power Rating [AJDB]
- 250.000 Watts Average And 250.000 Kilowatts Peak
- Overall Diameter [ADAV]
- 5.313 Inches Nominal
- Overall Length [ABHP]
- 9.250 Inches Maximum
- Voltage Standing Wave Ratio Frequency Range [AKNK]
- +3.590/+3.700 Gigahertz
- Voltage Standing Wave Ratio [AHTW]
- 1.15
- Waveguide Flange Designation [AKSA]
- Ug-584/U

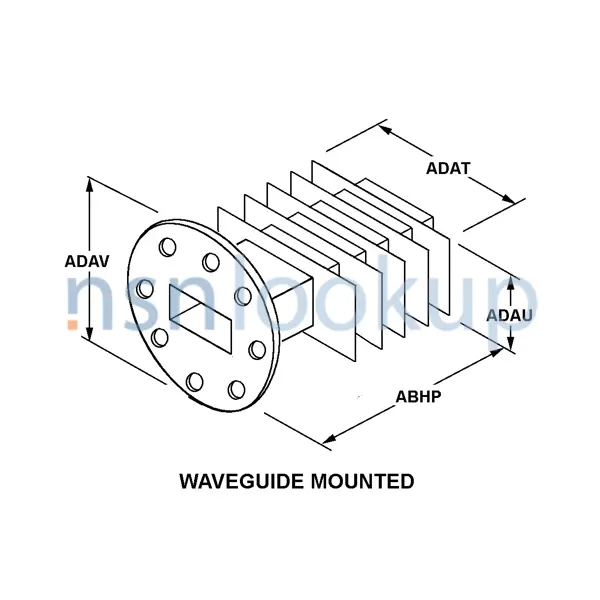

- Style Designator [STYL]
- Waveguide Mounted
- Termination Type [AKRZ]
- Waveguide Flange
DLA Procurement Analysis 5985-00-131-6749
Management Data 5985-00-131-6749
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5985-00-131-6749
Freight Information 5985-00-131-6749
5985-00-131-6749 has freight characteristics managed by the Office od the Secretary of HEW.It has a National Motor Freight Classification (NMFC) of 062960. A Sub NMFC of X. It has a NMFC Description of REOSTATS/PARTS NOI. 5985-00-131-6749 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35140 which rates the freight between FCL and LCL. 5985-00-131-6749 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5985-00-131-6749 is not classified as a special type of cargo when transported by water. 5985-00-131-6749 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5985-00-131-6749
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-DTL-17667, Neutral Wrapping Paper
- ASTM-D4727, Fiberboard used as Pads, Cells, Die-cuts or Sleeves
- --
- ASTM-D5118, Type CF, Class Domestic, Corrugated Fiberboard Box
- No special marking
- MIL-DTL-17667, Neutral Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 5985-00-131-6749 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
