5985-00-060-2043
Electrical Dummy Load
5985000602043 000602043 12561 85160 580R064H01 452002
A specific electrical element or set of electrical elements that are connected together to form a fixed arrangement and used as a substitute load for terminating an electrical circuit. A dummy load contains all the essential electrical characteristics necessary to terminate the circuit but does not function in the same manner as the load which it replaces. Examples are resistors used to replace antennas, batteries, loudspeakers, or the like. Includes single port terminations of twin lead, coaxial and waveguide transmission lines as low power terminations of a section of a transmission system in a specified manner. Includes dummy loads when arranged in a group or bank. Excludes power absorbers. See also LOAD BANK, ELECTRICAL. View more Electrical Dummy Load
May 2023
15
Marketplace 5985-00-060-2043
Request a Quotation from participating marketplace vendors
Related Documents 5985-00-060-2043 5+ Documents (More...)

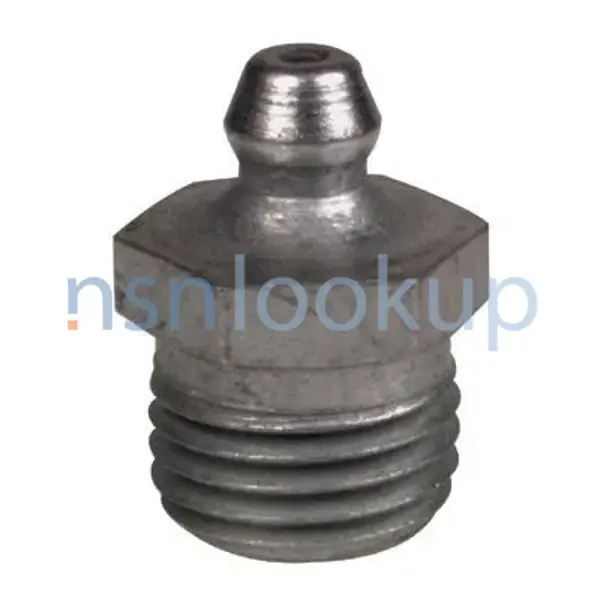

Photo 1/3 5985-00-060-2043 Photo 2/3 NSN 5985-00-060-2043 (Identification) 3/3 - - - 1.
Every Day 5985-00-060-2043 RQST Updated Every Day 5985-00-060-2043 RQST NE Related Documents 5985-00
https//www.nsnlookup.com /fsg-65/fsc-6515/uk 6515-99-623-8114 Nasal Forceps 6515996238114996238114 452002
to enable JavaScript in your web browser . 6515-99-623 -8114Nasal Forceps6515996238114 996238114 452002
to enable JavaScript in your web browser . 6210-14-442-9144Indicator Light6210144429144 144429144 452002
https//www.nsnlookup.com /fsg-59/fsc-5985/us 5985-00-060-2043 Electrical Dummy Load 5985000602043 000602043
enable JavaScript in your web browser . 6530-15-233-5919Lampada A Stilo Tas6530152335919 152335919 85160
enable JavaScript in your web browser . 6530-15-233-5919Lampada A Stilo Tas6530152335919 152335919 85160
www.nsnlookup.com /fsg-66/fsc-6685/nl 6685-17-710-4726 Th Temperatuurmeter 6685177104726177104726 9-2-85160
enable JavaScript in your web browser . 6685-17-710 -4726Th Temperatuurmeter6685177104726 177104726 9-2-85160
Restrictions 5985-00-060-2043
5985-00-060-2043 is a Electrical Dummy Load that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5985-00-060-2043
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5985-00-060-2043
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Mar 2008
Approved Sources 5985-00-060-2043
- Part Number
- Manufacturer
- Status
- 580R064H01
- Manufacturer
- 97942 - Northrop Grumman Systems Corporation (Active)
- Primary Buy
- Primary Buy
- 580R064H01
- 54487 - Mercury Commercial Electronics, Inc. (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 580R064H01
- 00929 - Microlab/Fxr Llc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 12561
- 21845 - Solitron Devices, Inc. (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 85160
- 24469 - Caes Mission Systems Llc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 452002
- 80006 - Litton Systems Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5985-00-060-2043
- Characteristic
- Specifications
- FIIG
- Specifications
- A19800
- Body Diameter [ABPM]
- 1.250 Inches Nominal
- Cooling Method [BFMF]
- Self-Cooled
- Frequency Range Rating [AFGQ]
- +8.500/+10.300 Gigahertz
- Operating Position [ARNH]
- Horizontal
- Power Rating [AJDB]
- 600.000 Watts Average And 300.000 Kilowatts Peak
- Overall Height [ABKW]
- 2.370 Inches Nominal
- Overall Length [ABHP]
- 6.550 Inches Nominal
- Overall Width [ABMK]
- 1.900 Inches Nominal
- Voltage Standing Wave Ratio Frequency Range [AKNK]
- +8.500/+10.300 Gigahertz
- Voltage Standing Wave Ratio [AHTW]
- 1.10
- Waveguide Flange Designation [AKSA]
- Ug137b/U

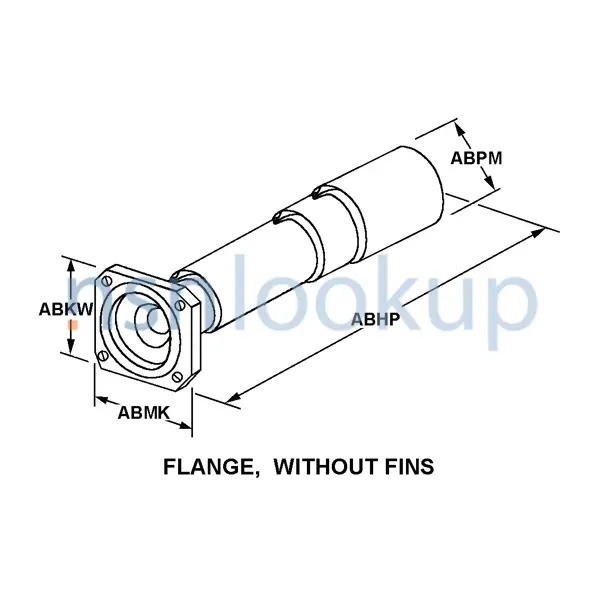

- Style Designator [STYL]
- Flange, Without Fins
- Termination Type [AKRZ]
- Waveguide Flange
- Test Data Document [TEST]
- 97942-580R064 Drawing (This Is The Basic Governing Drawing, Such As A Contractor Drawing, Original Equipment Manufacturer Drawing, Etc.; Excludes Any Specification, Standard Or Other Document That May Be Referenced In A Basic Governing Drawing)
Weapon Systems (WSDC) 5985-00-060-2043
DLA Procurement Analysis 5985-00-060-2043
Management Data 5985-00-060-2043
Similar Supply Items to 5985-00-060-2043
Freight Information 5985-00-060-2043
5985-00-060-2043 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062960. A Sub NMFC of X. It has a NMFC Description of REOSTATS/PARTS NOI. 5985-00-060-2043 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35140 which rates the freight between FCL and LCL. 5985-00-060-2043 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5985-00-060-2043 is not classified as a special type of cargo when transported by water. 5985-00-060-2043 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
