5977-01-273-2519

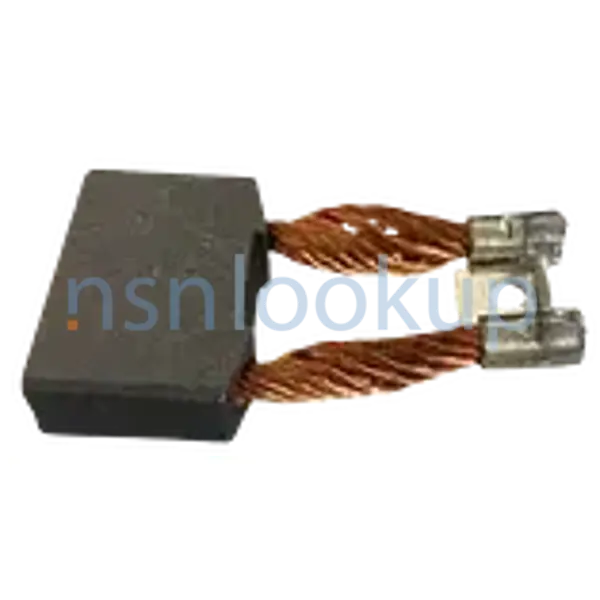

Electrical Contact Brush
5977012732519 012732519 1852894
An item specifically designed to be used in the transfer of electrical energy to or from another conducting surface. Either the brush or the surface is continually moving during the transfer of energy. The brush is usually composed in part of some form of the element carbon. Includes: (1) a single brush either with or without an attached shunt (flexible wire lead) and/or a helical or flat type pressure spring; (2) a split brush composed of two or more pieces (wafers), which are used in place of one brush usually connected together by individual shunts to a common terminal; (3) paired brushes composed of two identical or non-identical brushes connected together by a common shunt either with or without pressure springs or connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like either with or without individual shunts; (4) multiple brushes composed of more than two identical or non-identical brushes without pressure springs connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like by individual shunts. Does not include moving contacts which make and slide past stationary contacts, but are stationary while the circuit is conducting, such as the sliding contacts on a rheostat or the stationary contact on a synchro. Excludes: CONTACT, ELECTRICAL; and CONTACT ASSEMBLY, ELECTRICAL. View more Electrical Contact Brush
July 2025
13
Marketplace 5977-01-273-2519
Request a Quotation from participating marketplace vendors
Related Documents 5977-01-273-2519 5+ Documents (More...)
/fsg-59/fsc-5977/us
CONTACT 4 EA NS Request Quotation Updated Every Day 1852894 RQST NE Updated Every Day 5977-01-273-2519
Electrical Contact Brush 5977012732519 (Identification) 1/4 NSN 5977-01-273-2519 (Identification) 2/
/fsg-99/fsc-9999/uk
/fsg-99/fsc-9999/uk
/fsg-99/fsc-9999/uk
/fsg-59/fsc-5977/us
Restrictions 5977-01-273-2519
5977-01-273-2519 is a Electrical Contact Brush that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5977-01-273-2519
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5977-01-273-2519
- US Army (A918)
- Effective Date:
- 1 May 2005
- Former MOE Rule:
- A178
- Supplementary Receivers:
- AZBF
- US Coast Guard (C911)
- Effective Date:
- 1 May 2005
- Former MOE Rule:
- C006
- US Air Force (FXGG)
- Effective Date:
- 1 May 2005
- Former MOE Rule:
- FXCX
- US Navy (N9BG)
- Effective Date:
- 1 May 2005
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- GTHD
- Brazil (YA01)
- Effective Date:
- 1 Dec 2008
- Republic of Korea (ZH01)
- Effective Date:
- 1 Mar 1999
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Jul 1999
Approved Sources 5977-01-273-2519
- Part Number
- Manufacturer
- Status
- 1852894
- Manufacturer
- 1LW55 - Borgwarner Pds (Anderson), L.L.C. (Active)
- Primary Buy
- Primary Buy
- 1852894
- 077S2 - Delco Remy America Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1852894
- 7X677 - General Motors Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1852894
- 16764 - General Motors Corp Delco Remy Div (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5977-01-273-2519
- Characteristic
- Specifications
- FIIG
- Specifications
- A01500

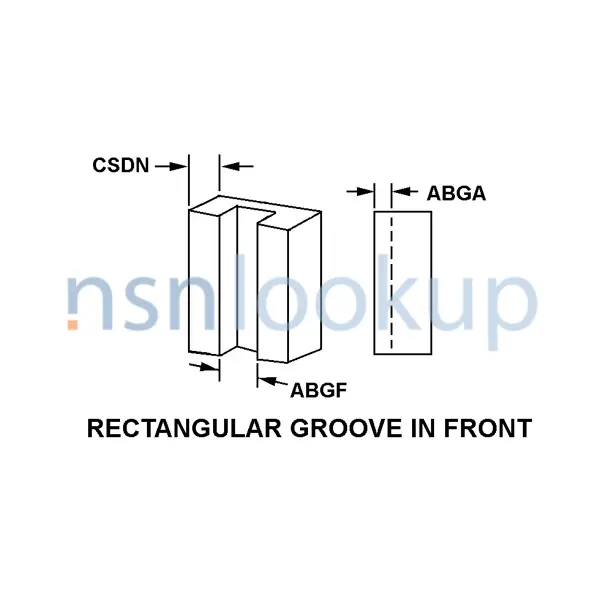

- Basic Shape Style [AGTA]
- Rectangular Groove In Front
- Body Style [AAQL]
- Rectangular
- Contact Face Style [CQGT]
- Flat
- Groove Width [ABGF]
- 0.590 Inches Nominal
- Material Document And Classification [MDCL]
- Morganite Grade Cm-851 Mfr Ref Single Material Response
- Material [MATT]
- Graphite
- Outer Edge To Groove Edge Distance [CSDN]
- 0.427 Inches Nominal
- Length [ABRY]
- 0.905 Inches Nominal
- Width [ABGL]
- 1.444 Inches Nominal
- Style Designator [STYL]
- One Piece
- Thickness [ABNM]
- 0.311 Inches Minimum And 0.418 Inches Maximum
Weapon Systems (WSDC) 5977-01-273-2519
DLA Procurement Analysis 5977-01-273-2519
- Last Stock Position:
- 294 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5977-01-273-2519
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5977-01-273-2519
Freight Information 5977-01-273-2519
5977-01-273-2519 has freight characteristics managed by the United Kingdom (UK).It has a National Motor Freight Classification (NMFC) of 040580. A Sub NMFC of X. It has a NMFC Description of CARBON BRUSHES GENERATOR/MOTOR. 5977-01-273-2519 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 20480 which rates the freight between FCL and LCL. 5977-01-273-2519 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5977-01-273-2519 is not classified as a special type of cargo when transported by water. 5977-01-273-2519 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5977-01-273-2519
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Procurement History 5977-01-273-2519 3 Records
Contracting Technical Data File (CTDF) 5977-01-273-2519 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
