5977-00-616-7609
Electrical Contact Brush
5977006167609 006167609 6167609 957473 GDJ1012 CGJ1012 361495 K1012
An item specifically designed to be used in the transfer of electrical energy to or from another conducting surface. Either the brush or the surface is continually moving during the transfer of energy. The brush is usually composed in part of some form of the element carbon. Includes: (1) a single brush either with or without an attached shunt (flexible wire lead) and/or a helical or flat type pressure spring; (2) a split brush composed of two or more pieces (wafers), which are used in place of one brush usually connected together by individual shunts to a common terminal; (3) paired brushes composed of two identical or non-identical brushes connected together by a common shunt either with or without pressure springs or connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like either with or without individual shunts; (4) multiple brushes composed of more than two identical or non-identical brushes without pressure springs connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like by individual shunts. Does not include moving contacts which make and slide past stationary contacts, but are stationary while the circuit is conducting, such as the sliding contacts on a rheostat or the stationary contact on a synchro. Excludes: CONTACT, ELECTRICAL; and CONTACT ASSEMBLY, ELECTRICAL. View more Electrical Contact Brush
January 2023
17
Marketplace 5977-00-616-7609
Request a Quotation from participating marketplace vendors
Related Documents 5977-00-616-7609 5+ Documents (More...)
/fsg-59/fsc-5977/us
(Identification) 1/4 NSN 5977-00-616-7609 (Identification) 2/4 NSN 5977-00-616-7609 (Identification
K1012 BRUSH,ELECTRICAL CONTACT 8 EA NS Request Quotation Subscribe to View Vendor Details... 5977-00-
www.nsnlookup.com /fsg-29/fsc-2930/fr 2930-14-209-9477 Moyeu De Ventilateu 2930142099477142099477 361495
Electrical Contact Brush 5977006167609 Upgrade 5977-00-616-7609Electrical Contact Brush5977006167609
Updated Every Day 6620-00-936-3450 RQST Updated https//www.nsnlookup.com /fsg-59/fsc-5977/us 5977-00-616-7609
Electrical Contact Brush 5977006167609 ELECTRICAL CONTACT 8 EA NS Request Quotation Subscribe https
enable JavaScript in your web browser . 7025-12-367-6627Display Unit7025123676627 123676627 S26361-K1012
/www.nsnlookup.com /fsg-70/fsc-7025/de 7025-12-367-6627 Display Unit 7025123676627123676627 S26361-K1012
/www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-238-7083 Nonprecision Wire Wound Variable Resistor 361495
Account Upgrade 5905-00-238-7083Nonprecision Wire Wound Variable Resistor5905002387083 002387083 361495
Restrictions 5977-00-616-7609
5977-00-616-7609 is a Electrical Contact Brush that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5977-00-616-7609
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5977-00-616-7609
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5977-00-616-7609
- Part Number
- Manufacturer
- Status
- 6167609
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 957473
- 12204 - Chrysler Realty Company Llc (Active)
- Primary Buy
- Primary Buy
- GDJ1012
- 45320 - Paccar Government Group Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- CGJ1012
- 45320 - Paccar Government Group Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 361495
- 65282 - White Motor Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- K1012
- 65282 - White Motor Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5977-00-616-7609
- Characteristic
- Specifications
- FIIG
- Specifications
- A01500
- Style Designator [STYL]
- One Piece
- Material [MATT]
- Carbon
- Body Style [AAQL]
- Rectangular Commutator
- Width [ABGL]
- 1.000 Inches Nominal
- Thickness [ABNM]
- 0.250 Inches Nominal
- Length [ABRY]
- 0.995 Inches Nominal
- Contact Face Style [CQGT]
- Concave
- Radius [ABGG]
- 1.502 Inches Nominal
- Bevel Angle [CQPY]
- 45.0 Degrees Nominal

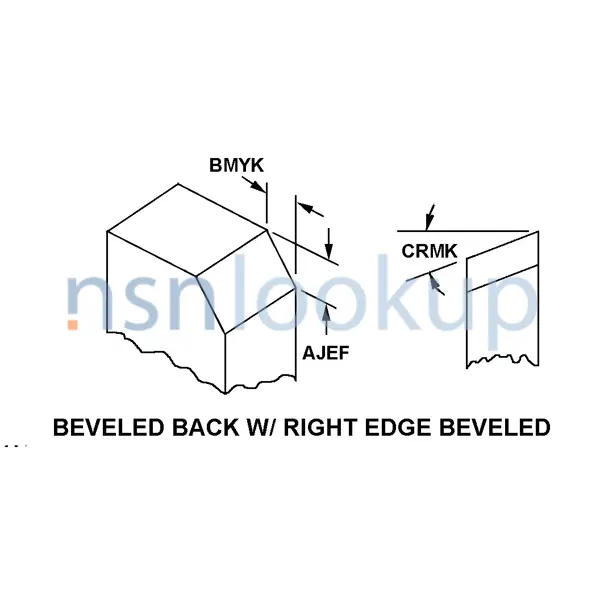

- Top Style [BTHR]
- Beveled Back With Right Edge Beveled
- Bevel Depth [AJEF]
- 0.219 Inches Nominal
- Bevel Length [BMYK]
- 0.219 Inches Nominal
- Angle [CRMK]
- 45.0 Degrees Nominal
- Shunt Insulation Provision And Quantity [CRBG]
- 1 Uninsulated
- Shunt Position Designator [AABU]
- 8
- Brush Shunt Length [AHXP]
- 2.000 Inches Nominal Single Shunt
- Terminal Type And Quantity [TTQY]
- 1 Flag W/Hole
- Terminal Hole Diameter [AHXQ]
- 0.172 Inches Nominal
NATO Stock Numbers Related to 5977-00-616-7609
Freight Information 5977-00-616-7609
5977-00-616-7609 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 040580. A Sub NMFC of X. It has a NMFC Description of CARBON BRUSHES GENERATOR/MOTOR. 5977-00-616-7609 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 20480 which rates the freight between FCL and LCL. 5977-00-616-7609 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5977-00-616-7609 is not classified as a special type of cargo when transported by water. 5977-00-616-7609 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5977-00-616-7609
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- --
- Special Requirements
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Special Requirement
- Special Requirements – see Specific Instructions or Drawings provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special requirement – See specific instructions or drawings provided
- --
- Special Requirements – see Specific Instructions or Drawings provided
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Special requirement – See specific instructions or drawings provided
