5977-00-555-6754

Electrical Contact Brush

5977005556754 005556754 3006A R157 2583

An item specifically designed to be used in the transfer of electrical energy to or from another conducting surface. Either the brush or the surface is continually moving during the transfer of energy. The brush is usually composed in part of some form of the element carbon. Includes: (1) a single brush either with or without an attached shunt (flexible wire lead) and/or a helical or flat type pressure spring; (2) a split brush composed of two or more pieces (wafers), which are used in place of one brush usually connected together by individual shunts to a common terminal; (3) paired brushes composed of two identical or non-identical brushes connected together by a common shunt either with or without pressure springs or connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like either with or without individual shunts; (4) multiple brushes composed of more than two identical or non-identical brushes without pressure springs connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like by individual shunts. Does not include moving contacts which make and slide past stationary contacts, but are stationary while the circuit is conducting, such as the sliding contacts on a rheostat or the stationary contact on a synchro. Excludes: CONTACT, ELECTRICAL; and CONTACT ASSEMBLY, ELECTRICAL. View more Electrical Contact Brush

5977-00-555-6754 BRUSH,ELECTRICAL CONTACT 5977005556754 005556754

Managed by United States
NSN Created on 22 Oct 1969
Data Last Changed
May 2023
NATO Update Count
6
NATO Data Quality
AAQL Style B4 for 5977-00-555-6754 1/4
NSN 5977-00-555-6754 (Identification) 1/4
BTHR Style E14 for 5977-00-555-6754 2/4
NSN 5977-00-555-6754 (Identification) 2/4
CQGT Style D2 for 5977-00-555-6754 3/4
NSN 5977-00-555-6754 (Identification) 3/4
STYL Style A1 for 5977-00-555-6754 4/4
NSN 5977-00-555-6754 (Identification) 4/4

5977-00-555-6754 Stock and Availability Marketplace 5977-00-555-6754

5977-00-555-6754 Related Documents Related Documents 5977-00-555-6754 5+ Documents (More...)

3006A R157 2583 An item specifically designed to be used in the transfer of electrical energy to or
(Identification) 1/4 NSN 5977-00-555-6754 (Identification) 2/4 NSN 5977-00-555-6754 (Identification
Request a Quotation from participating marketplace vendors Request Global Test Supply R157 Dickson R157
browser . 5995-14-371-2454Electrical Special Purpose Cable Assembly5995143712454 143712454 20153325 KD-3006A
browser . 5995-14-371-2454Electrical Special Purpose Cable Assembly5995143712454 143712454 20153325KD-3006A
https//www.nsnlookup.com /fsg-40/fsc-4030/no 4030-25-133-1596 Quick Disconnect Wire Rope Coupling,3006A
your web browser . 5999-00-059-2703Electrical-Electronic Component Heat Sink5999000592703 000592703 3006A
/fsc-8415/tr 8415-27-001-5617 Food Handler's Cap 8415270015617270015617 8415.K 98 5427-001-5617MMK-3006A
Upgrade 5995-01-234-3245Radio Frequency Cable Assembly5995012343245 0123432458118-30068118-3006A https
Account Upgrade 5995-01-234-3245Radio Frequency Cable Assembly5995012343245 012343245 8118-3006 8118-3006A
www.nsnlookup.com /fsg-59/fsc-5995/fr 5995-14-371-2454 Electrical Special Purpose Cable Assembly Coupling,3006A
Account Upgrade 5995-01-234-3245Radio Frequency Cable Assembly5995012343245 0123432458118-30068118-3006A
web browser . 8415-27-001-5617Food Handler's Cap8415270015617 270015617 8415.K 98 54 27-001-5617 MMK-3006A
/fsc-8415/tr 8415-27-001-5617 Food Handler's Cap 8415270015617270015617 8415.K 98 5427-001-5617MMK-3006A
web browser . 8415-27-001-5617Food Handler's Cap8415270015617 2700156178415.K 98 5427-001-5617MMK-3006A

5977-00-555-6754 Demil Restrictions 5977-00-555-6754

DEMIL: A | DEMILI: | CRITICALITY: X | HMIC: N | PMIC: A | EDC: | ADPEC:

5977-00-555-6754 is a Electrical Contact Brush that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

5977-00-555-6754 HTS and ScheduleB Import and Export 5977-00-555-6754

5977-00-555-6754 End Users End Users 5977-00-555-6754

US Coast Guard (C911)
Effective Date:
1 May 2005
Former MOE Rule:
C006
US Air Force (FXGG)
Effective Date:
1 May 2005
Former MOE Rule:
FXCX
US Navy (N9BG)
Effective Date:
1 May 2005
Supplementary Collaborators:
HD

5977-00-555-6754 Manufacturers Approved Sources 5977-00-555-6754

5977-00-555-6754 Technical Data Datasheet 5977-00-555-6754

Characteristic
Specifications
FIIG
A01500
Body Style [AAQL]
Rectangular Slip Ring
Brush Shunt Length [AHXP]
2.250 Inches Nominal Single Shunt
Contact Face Style [CQGT]
Concave
Material [MATT]
Copper Graphite
Length [ABRY]
0.938 Inches Nominal
Material Document And Classification [MDCL]
Industrial Electrical Reels Inc,Gr 690 Mfr Ref Single Material Response
Radius [ABGG]
0.743 Inches Minimum And 0.750 Inches Maximum
Recess Depth [ABMH]
0.031 Inches Nominal
Recess Diameter [ABMD]
0.188 Inches Nominal
Shunt Insulation Provision And Quantity [CRBG]
1 Uninsulated
Shunt Position Designator [AABU]
8

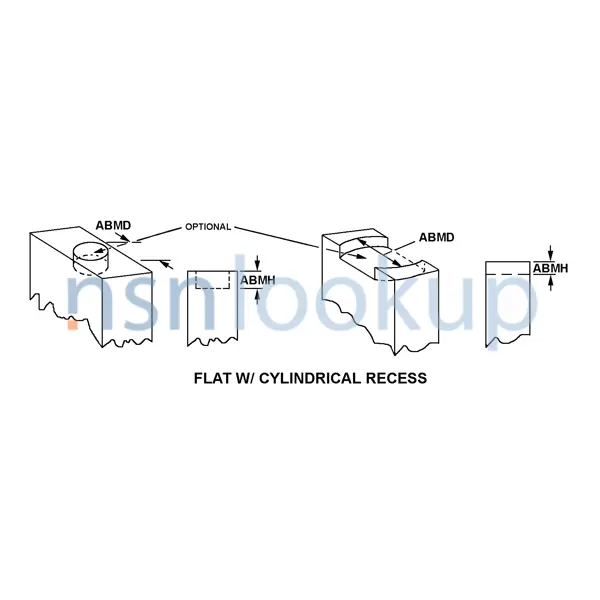

Top Style [BTHR]
Flat With Cylindrical Recess
Width [ABGL]
0.243 Inches Minimum And 0.245 Inches Maximum
Style Designator [STYL]
One Piece
Terminal Hole Diameter [AHXQ]
0.243 Inches Minimum And 0.245 Inches Maximum
Terminal Type And Quantity [TTQY]
1 Straight W/Hole
Thickness [ABNM]
0.989 Inches Minimum And 0.991 Inches Maximum
