5977-00-250-9280
Electrical Contact Brush
5977002509280 002509280 NEMAPUBCB1-1961 05-170-847PC28 05-172-764PC27 05-181-975-00-046
An item specifically designed to be used in the transfer of electrical energy to or from another conducting surface. Either the brush or the surface is continually moving during the transfer of energy. The brush is usually composed in part of some form of the element carbon. Includes: (1) a single brush either with or without an attached shunt (flexible wire lead) and/or a helical or flat type pressure spring; (2) a split brush composed of two or more pieces (wafers), which are used in place of one brush usually connected together by individual shunts to a common terminal; (3) paired brushes composed of two identical or non-identical brushes connected together by a common shunt either with or without pressure springs or connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like either with or without individual shunts; (4) multiple brushes composed of more than two identical or non-identical brushes without pressure springs connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like by individual shunts. Does not include moving contacts which make and slide past stationary contacts, but are stationary while the circuit is conducting, such as the sliding contacts on a rheostat or the stationary contact on a synchro. Excludes: CONTACT, ELECTRICAL; and CONTACT ASSEMBLY, ELECTRICAL. View more Electrical Contact Brush
May 2023
20
Marketplace 5977-00-250-9280
Request a Quotation from participating marketplace vendors
Related Documents 5977-00-250-9280 5+ Documents (More...)
/fsg-59/fsc-5977/us
NEMAPUBCB1-1961 BRUSH,ELECTRICAL CONTACT 10 EA NS Request Quotation Updated Every Day 5977-00-250-9280
5977-00-250-9280 (Identification NEMAPUBCB1-1961 BRUSH,ELECTRICAL CONTACT 10 EA NS Request Quotation
/fsg-58/fsc-5841/ca
NEMAPUBCB1-1961 05-170-847PC28 05-172-764PC27 05-181-975 https//www.nsnlookup.com /fsg-59/fsc-5977/us
5977-00-250-9280 Electrical Contact Brush 5977002509280 9280Electrical Contact Brush5977002509280 002509280
/fsg-59/fsc-5977/us
Electrical Contact Brush 5977002509280 Upgrade your Account Upgrade 5977-00-250-9280Electrical
Contact Brush5977002509280 002509280 NEMAPUBCB1-1961 NEMAPUBCB1-1961 BRUSH,ELECTRICAL CONTACT 10 EA NS
NEMAPUBCB1 https//www.nsnlookup.com /fsg-59/fsc-5977/us 5977-00-250-9280 Electrical Contact Brush 5977002509280
9280Electrical Contact Brush5977002509280 002509280 NEMAPUBCB1-1961 05-170-847PC28 05-172-764PC27 05
/fsg-59/fsc-5977/us
NEMAPUBCB1-1961 BRUSH,ELECTRICAL CONTACT 10 EA NS Request Quotation Updated Every Day 5977-00-378-8652
1961B8946-3-216 An item specifically designed to be used in the transfer of electrical energy NEMAPUBCB1-1961
Restrictions 5977-00-250-9280
5977-00-250-9280 is a Electrical Contact Brush that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5977-00-250-9280
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5977-00-250-9280
- US Navy (N9BG)
- Effective Date:
- 1 May 2005
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- HD
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5977-00-250-9280
- Part Number
- Manufacturer
- Status
- NEMAPUBCB1-1961
- Manufacturer
- 81705 - National Electrical Mfrs Assn (Obsolete)
- Incomplete Reference
- Incomplete Reference
- 05-170-847PC28
- 01406 - Allis Chalmers Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 05-172-764PC27
- 01406 - Allis Chalmers Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 05-181-975-00-046
- 92392 - Allis-Chalmers Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5977-00-250-9280
- Characteristic
- Specifications
- FIIG
- Specifications
- A01500
- Style Designator [STYL]
- One Piece
- Material [MATT]
- Electrographitic
- Material Document And Classification [MDCL]
- Union Carbide Corp,Gr Ay Mfr Ref Single Material Response
- Body Style [AAQL]
- Rectangular Commutator
- Width [ABGL]
- 1.250 Inches Nominal
- Thickness [ABNM]
- 0.500 Inches Nominal
- Length [ABRY]
- 1.750 Inches Nominal
- Contact Face Style [CQGT]
- Flat
- Top Style [BTHR]

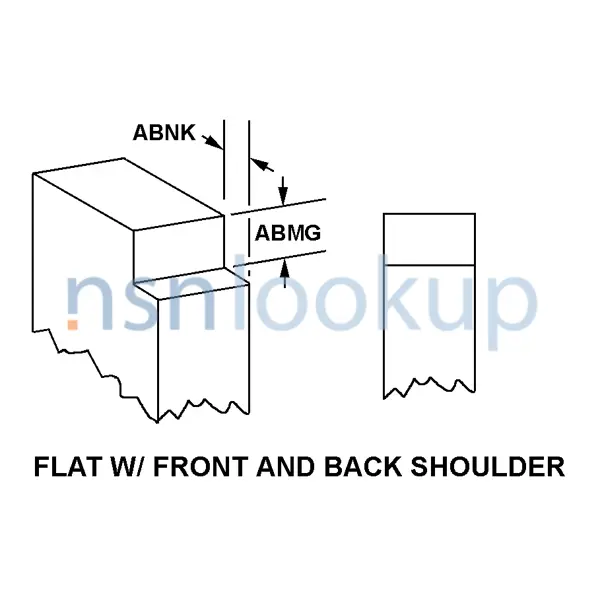

- Flat With Front And Back Shoulder
- Shoulder Height [ABMG]
- 0.500 Inches Nominal
- Shoulder Width [ABNK]
- 0.125 Inches Nominal
- Basic Shape Style [AGTA]

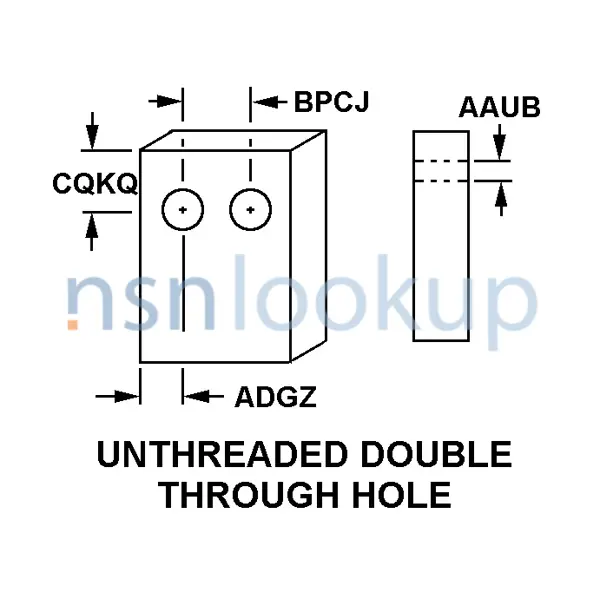

- Unthreaded Double Through Hole
- Hole Diameter [AAUB]
- 0.203 Inches Nominal
- Distance From Center Of Hole To Outside Edge [ADGZ]
- 0.313 Inches Nominal
- Distance Between Hole Centers [BPCJ]
- 0.625 Inches Nominal
- Distance From Brush Top To Hole Centerline [CQKQ]
- 0.250 Inches Nominal
- Peripheral Speed [AACQ]
- 4000 Feet Per Minute
DLA Procurement Analysis 5977-00-250-9280
Management Data 5977-00-250-9280
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5977-00-250-9280
Freight Information 5977-00-250-9280
5977-00-250-9280 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 040580. A Sub NMFC of X. It has a NMFC Description of CARBON BRUSHES GENERATOR/MOTOR. 5977-00-250-9280 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 20480 which rates the freight between FCL and LCL. 5977-00-250-9280 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5977-00-250-9280 is not classified as a special type of cargo when transported by water. 5977-00-250-9280 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
