5975-01-622-3807
Conduit Outlet
5975016223807 016223807 2IH5S2-1 11B5091470
An item designed to be used in a conduit system for the purpose of providing outlets or attachments for electrical wiring devices and/or designed to provide access and facilitate installment of wires. It may or may not include a cover(s). It does not include wiring devices. Excludes ENTRANCE ELBOW, ELECTRICAL. See also JUNCTION BOX. View more Conduit Outlet
May 2023
1
Marketplace 5975-01-622-3807
Request a Quotation from participating marketplace vendors
Related Documents 5975-01-622-3807 1+ Documents (More...)
/fsg-59/fsc-5975/us
United States (US) 4. 5975-01-622-3807 Marketplace Restrictions Approved Sources Datasheet Management
BUY NE FedMall Updated Every Day 5975-01-622-3807 RQST NE Updated Every Day 5975-01-622-3807 RQST
Restrictions 5975-01-622-3807
5975-01-622-3807 is a Conduit Outlet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5975-01-622-3807
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5975-01-622-3807
- US Army (A918)
- Effective Date:
- 1 Oct 2013
- Supplementary Receivers:
- AZ
Approved Sources 5975-01-622-3807
- Part Number
- Manufacturer
- Status
- 2IH5S2-1
- Manufacturer
- 56501 - Abb Installation Products Inc (Active)
- Primary Buy
- Primary Buy
- 11B5091470
- 5B5M3 - Devcom Chemical Biological Center (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5975-01-622-3807
- Characteristic
- Specifications
- FIIG
- Specifications
- A03500
- Conduit Entrance Type [AELR]
- Boss Drilled All Entrance
- Conduit Trade Size Accommodated [ACUV]
- 0.5 Inches All Entrance
- Depth [AEJZ]
- 2.53 Inches Nominal
- Hazardous Locations/Environmental Protection [ABFE]
- Weatherproof
- End Item Identification [AGAV]
- 4940016011928
- Material [MATT]
- Aluminum Overall
- Mounting Method [AXGY]
- Flange W/Hole
- Length [ABRY]
- 4.56 Inches Nominal
- Part Name Assigned By Controlling Agency [CXCY]
- Deep Universal Weatherproof Box
- Special Features [FEAT]
- The Finish Is A Silver Colored Powder Coat.
- Width [ABGL]
- 4.63 Inches Nominal
- Wiring Device Gang Quantity [AEMR]
- 2

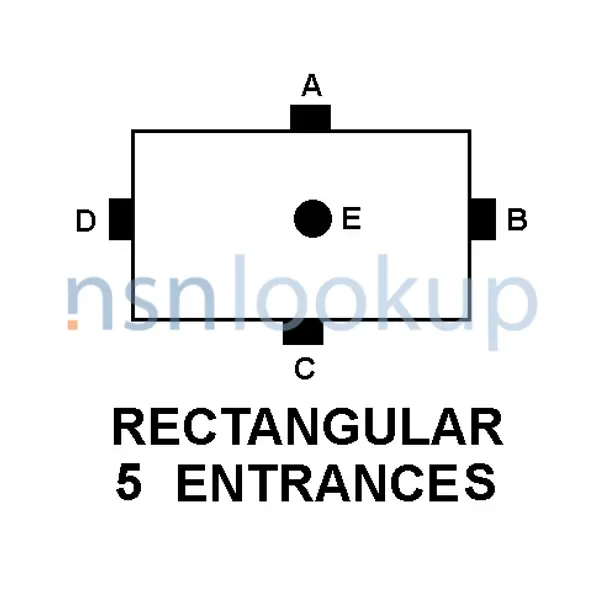

- Style Designator [STYL]
- Rectangular 5 Entrances
DLA Procurement Analysis 5975-01-622-3807
Management Data 5975-01-622-3807
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 5975-01-622-3807
Freight Information 5975-01-622-3807
5975-01-622-3807 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 063160. A Sub NMFC of Z. It has a NMFC Description of SWITCH BOXES/ELEC ENCLOSURES. 5975-01-622-3807 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35205 which rates the freight between FCL and LCL. 5975-01-622-3807 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5975-01-622-3807 is not classified as a special type of cargo when transported by water. 5975-01-622-3807 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Procurement History 5975-01-622-3807 1 Records
Contracting Technical Data File (CTDF) 5975-01-622-3807 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
