5975-01-533-9901
Stuffing Tube
5975015339901 015339901 6878099-1 M19622/4-04MOD3/4 470-6878099
An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s). View more Stuffing Tube
November 2023
4
Marketplace 5975-01-533-9901
Request a Quotation from participating marketplace vendors
Related Documents 5975-01-533-9901 1+ Documents (More...)
United States (US) 4. 5975-01-533-9901 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5975-01-533-9901 RQST Updated Every Day 5975-01-533-9901 RQST NE Related Documents
Restrictions 5975-01-533-9901
5975-01-533-9901 is a Stuffing Tube that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5975-01-533-9901
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5975-01-533-9901
- US Navy (N9BG)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- HD
- Australia (ZA01)
- Effective Date:
- 1 Oct 2006
Approved Sources 5975-01-533-9901
- Part Number
- Manufacturer
- Status
- 6878099-1
- Manufacturer
- 53711 - Naval Sea Systems Command (Active)
- Source Control
- Source Control
- M19622/4-04MOD3/4
- 99820 - Dorn Equipment Corp. (Active)
- Primary Buy
- Primary Buy
- 470-6878099
- 53711 - Naval Sea Systems Command (Active)
- Informational Drawing
- Informational Drawing
Datasheet 5975-01-533-9901
- Characteristic
- Specifications
- FIIG
- Specifications
- A049A0
- Furnished Items [ABFF]
- Cap And O-Ring And Adapter
- First End Y Angle [CWMB]
- 40.0 Degrees Nominal
- Material [MATT]
- Plastic Overall
- Nominal Thread Size [CQJX]
- 0.750 Inches Both Ends
- Size [BGBD]
- 0.750 Inches Nominal
- Special Features [FEAT]
- End Item - An/Slq-25A Ec-4; Item Is Y-Type Nylon 4T W/3/4 Npt; Conforms To Mil-S-19622/4-04 4T Except For Threads And 2.45 By 2.30 Inch Overall Dims
- Thread Series Designator [THSD]
- Npt Both Ends

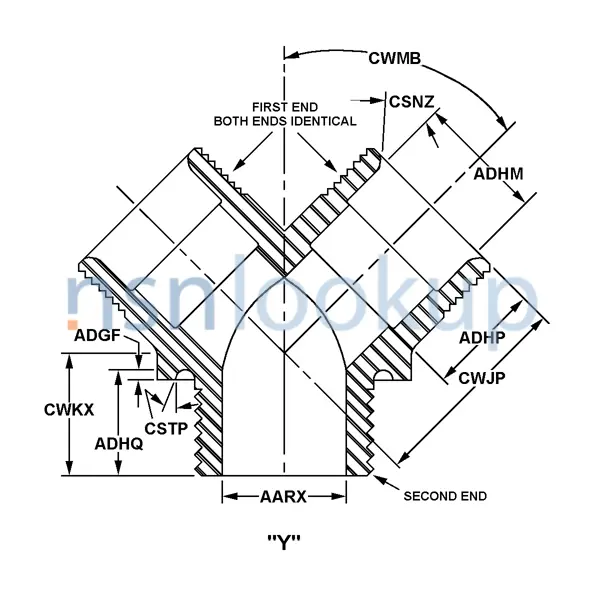

- Style Designator [STYL]
- Y
Weapon Systems (WSDC) 5975-01-533-9901
DLA Procurement Analysis 5975-01-533-9901
- Last Stock Position:
- 119 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5975-01-533-9901
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5975-01-533-9901
Freight Information 5975-01-533-9901
5975-01-533-9901 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5975-01-533-9901 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5975-01-533-9901 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5975-01-533-9901 is not classified as a special type of cargo when transported by water. 5975-01-533-9901 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5975-01-533-9901
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- ASTM - D5118, Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Procurement History 5975-01-533-9901 2 Records
Contracting Technical Data File (CTDF) 5975-01-533-9901 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- J
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
