5975-01-528-3705
Electrical Equipment Shelf
5975015283705 015283705 7384594-A4 G680-0571-A4
An item relatively thin in its vertical dimension, designed to provide a horizontal working surface on the front of a CABINET, ELECTRICAL EQUIPMENT or a RACK, ELECTRICAL EQUIPMENT. May include wiring, power outlets and similar accessories. May be furnished with slides to permit stowing within the cabinet or rack when not in actual use. View more Electrical Equipment Shelf
May 2023
2
Marketplace 5975-01-528-3705
Request a Quotation from participating marketplace vendors
Related Documents 5975-01-528-3705 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5975-01-528-3705 RQST NE Updated Every Day 5975-01-528-3705 RQST
Updated Every Day 5975-01-528-3705 RQST NE Related Documents 5975-01-528-3705 1+ Documents ( More...
Restrictions 5975-01-528-3705
5975-01-528-3705 is a Electrical Equipment Shelf that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal. This item is sensitive to Electrostatic Discharge and Electromagnetic Interference.
Import and Export 5975-01-528-3705
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5975-01-528-3705
- US Navy (N9BG)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- GTJBHD
Approved Sources 5975-01-528-3705
- Part Number
- Manufacturer
- Status
- 7384594-A4
- Manufacturer
- 53711 - Naval Sea Systems Command (Active)
- Primary Buy
- Primary Buy
- G680-0571-A4
- 96169 - Electric Boat Corporation (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5975-01-528-3705
- Characteristic
- Specifications
- FIIG
- Specifications
- A05500

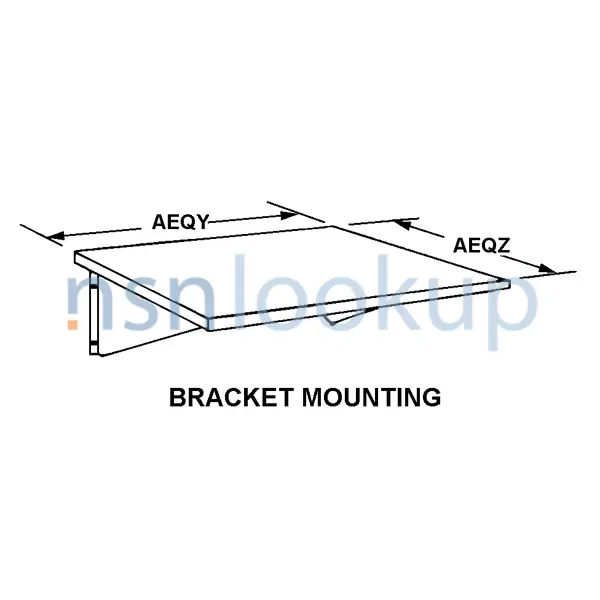

- Style Designator [STYL]
- Bracket Mounting
- Shelf Width [AEQY]
- 19.000 Inches Nominal
- Shelf Depth [AEQZ]
- 19.500 Inches Nominal
- Material [MATT]
- Aluminum Alloy 5052
- Material Document And Classification [MDCL]
- Qq-A-250/8, Al 5052.Qq-A-250/8, Al 5052H32 Fed Spec Single Material Response
- Mounting Provision [ABDR]
- Unthreaded Hole
- Mounting Facility Quantity [AKPV]
- 6
- Mounting Facility Size [CXNK]
- 0.221
- Mounting Facility Spacing [CXSJ]
- 7.000 Inches Apart
- Component Mounting Facility Type And Quantity [CRQY]
- 6 Unthreaded Hole
- Shelf Top Material [CTRT]
- Aluminum Alloy 5052
- Special Features [FEAT]
- Has Tensioner Assembly
- End Item Identification [AGAV]
- Ship, Ohio Class Ssn (Trident); Sos Cab Assy Data Distr
- Part Name Assigned By Controlling Agency [CXCY]
- Shelf Assemby. Encoder/Decoder, Minerva
Weapon Systems (WSDC) 5975-01-528-3705
DLA Procurement Analysis 5975-01-528-3705
Management Data 5975-01-528-3705
Navy
- Cognizance:
- 3B
Similar Supply Items to 5975-01-528-3705
Freight Information 5975-01-528-3705
5975-01-528-3705 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 082360. A Sub NMFC of Z. It has a NMFC Description of STORE/OFC BINS/SHELVING. 5975-01-528-3705 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 44080 which rates the freight between FCL and LCL. 5975-01-528-3705 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 772 for ocean manifesting and military sealift. 5975-01-528-3705 is not classified as a special type of cargo when transported by water. 5975-01-528-3705 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5975-01-528-3705 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
