5975-01-470-0370
Conduit Outlet
5975014700370 014700370 GUALB-75A
An item designed to be used in a conduit system for the purpose of providing outlets or attachments for electrical wiring devices and/or designed to provide access and facilitate installment of wires. It may or may not include a cover(s). It does not include wiring devices. Excludes ENTRANCE ELBOW, ELECTRICAL. See also JUNCTION BOX. View more Conduit Outlet
May 2023
2
Marketplace 5975-01-470-0370
Request a Quotation from participating marketplace vendors
Related Documents 5975-01-470-0370 1+ Documents (More...)
/fsg-59/fsc-5975/us
BUY NE FedMall Updated Every Day 5975-01-470-0370 RQST NE Updated Every Day 5975-01-470-0370 RQST
Updated Every Day 5975-01-470-0370 RQST NE Related Documents 5975-01-470-0370 1+ Documents ( More...
Restrictions 5975-01-470-0370
5975-01-470-0370 is a Conduit Outlet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 5975-01-470-0370
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5975-01-470-0370
- US Air Force (FXGG)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- FXCX
Approved Sources 5975-01-470-0370
- Part Number
- Manufacturer
- Status
- GUALB-75A
- Manufacturer
- 83879 - Egs Electric Co Llc (Obsolete)
- Original Design
- Original Design
Datasheet 5975-01-470-0370
- Characteristic
- Specifications
- FIIG
- Specifications
- A03500
- Cover Mounting Surface Type [AEMT]
- Flat
- Depth [AEJZ]
- 3.000 Inches Nominal
- Hazardous Locations/Environmental Protection [ABFE]
- Watertight-Nema Type 4
- End Item Identification [AGAV]
- 4920013267353
- Material [MATT]
- Aluminum Overall
- Overall Diameter [ADAV]
- 3.625 Inches Nominal

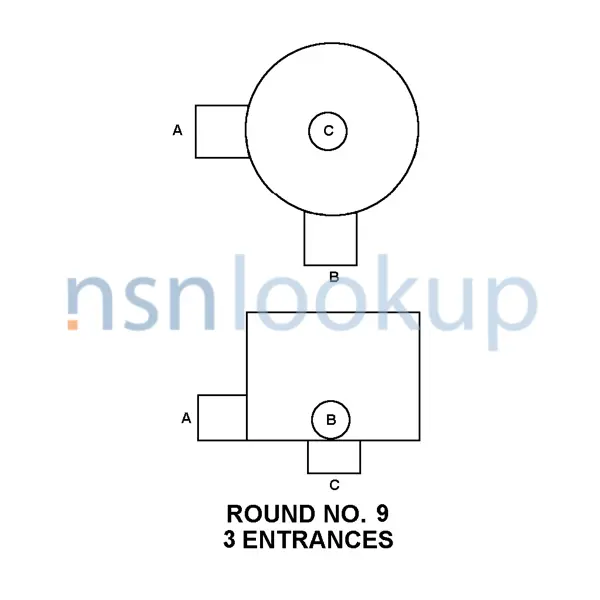

- Style Designator [STYL]
- Round No. 9 3 Entrances
DLA Procurement Analysis 5975-01-470-0370
Management Data 5975-01-470-0370
Similar Supply Items to 5975-01-470-0370
Freight Information 5975-01-470-0370
5975-01-470-0370 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 063160. A Sub NMFC of Z. It has a NMFC Description of SWITCH BOXES/ELEC ENCLOSURES. 5975-01-470-0370 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35205 which rates the freight between FCL and LCL. 5975-01-470-0370 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5975-01-470-0370 is not classified as a special type of cargo when transported by water. 5975-01-470-0370 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5975-01-470-0370 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
