5975-01-462-1821
Stuffing Tube
5975014621821 014621821 MIL-S-24235 M24235/14-133
An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s). View more Stuffing Tube
November 2023
1
Marketplace 5975-01-462-1821
Request a Quotation from participating marketplace vendors
Related Documents 5975-01-462-1821 5+ Documents (More...)
MIL-S-24235 STUFFING TUBE 4 EA NS Request Quotation FedMall Updated Every 15 Minutes 5975-01-462-1821
BUY NE FedMall Updated Every Day 5975-01-462-1821 RQST NE Updated Every Day 5975-01-462-1821 RQST Updated
MIL-S-24235 STUFFING TUBE 4 EA NS Request Quotation FedMall Updated Every 15 Minutes 5975-01-326-1205
MIL-S-24235 STUFFING TUBE 4 EA NS Request Quotation FedMall Updated Every 15 Minutes 5975-01-326 https
MIL-S-24235 STUFFING TUBE 4 EA NS Request Quotation FedMall Updated Every 15 Minutes 5975-01-326-1202
STUFFING TUBE 4 EA NS Request Quotation Updated Every Day 5975-01-333-3264 RQST NE Updated MIL-S-24235
MIL-S-24235 STUFFING TUBE 4 EA NS Request Quotation FedMall Updated Every 15 Minutes 5975-01-326-1203
STUFFING TUBE 4 EA NS Request Quotation Updated Every Day 5975-01-333-3264 RQST NE Updated MIL-S-24235
/ A kit A kit M24235/2 -N014 MIL-S-24235/2 M24235/2-014 M2423S/2-004 MIL-S-24235/2 M24235/2-N014
/2 M24235/2-014 https A kit consisting of two PACKING ASSEMBLY M24235/2-N014 -N014 MIL-S-24235/2
Restrictions 5975-01-462-1821
5975-01-462-1821 is a Stuffing Tube that is specifically designed to be or selected as being nuclear hard. In addition it has other critical features such as tolerance, fit restrictions or application.Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5975-01-462-1821
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5975-01-462-1821
- US Navy (N9BG)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- HX
Approved Sources 5975-01-462-1821
- Part Number
- Manufacturer
- Status
- M24235/14-133
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-S-24235
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 5975-01-462-1821
- Characteristic
- Specifications
- FIIG
- Specifications
- A049A0
- Bore Diameter [ABXV]
- 1.625 Inches Nominal
- Furnished Items [ABFF]
- Gland Nut And Gland Ring
- First End Chamfer Angle [CSNZ]
- 45.0 Degrees Nominal
- First Packing Chamber Inside Diameter [ADHM]
- 2.079 Inches Nominal
- Material [MATT]
- Steel Overall
- Mounting End Length [ADHE]
- 0.188 Inches Nominal
- Mounting Outside Diameter [ADHZ]
- 1.826 Inches Nominal
- Nominal Thread Size [CQJX]
- 2.188 Inches Second End
- Overall Length [ABHP]
- 1.876 Inches Nominal
- Overall Outside Diameter [ADGA]
- 2.312 Inches Nominal
- Special Features [FEAT]
- Includes Tube, M24235/14-163; Gland Nut, M24235/13-073; Gland Ring, M24235/9-193
- Thread Series Designator [THSD]
- Un Second End
- Thread Quantity Per Inch [CMLP]
- 12 Second End
- Specification/Standard Data [ZZZK]
- 81349-Mil-S-24235/14 Government Specification

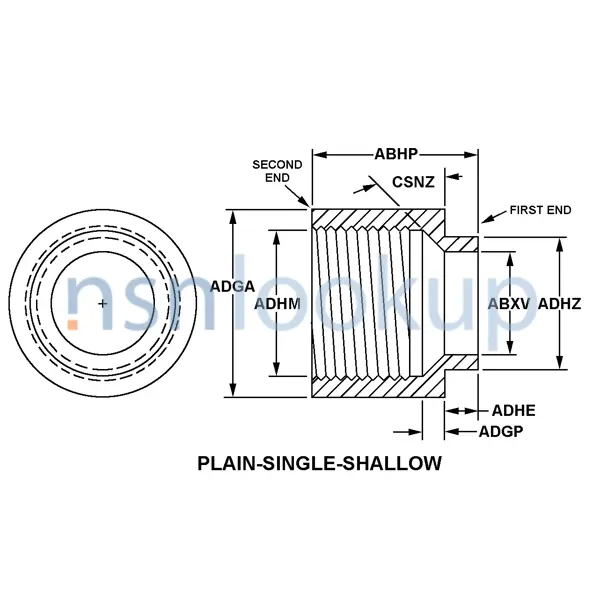

- Style Designator [STYL]
- Plain-Single-Shallow
- Thread Class [AAJD]
- 2B Second End
- Thread Length [AASA]
- 1.000 Inches Nominal Second End
Weapon Systems (WSDC) 5975-01-462-1821
DLA Procurement Analysis 5975-01-462-1821
- Last Stock Position:
- 18 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5975-01-462-1821
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5975-01-462-1821
Freight Information 5975-01-462-1821
5975-01-462-1821 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5975-01-462-1821 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5975-01-462-1821 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5975-01-462-1821 is not classified as a special type of cargo when transported by water. 5975-01-462-1821 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
