5975-01-387-9672
Stuffing Tube
5975013879672 013879672 C2334 G576882-6
An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s). View more Stuffing Tube
May 2023
3
Marketplace 5975-01-387-9672
Request a Quotation from participating marketplace vendors
Related Documents 5975-01-387-9672 5+ Documents (More...)
Updated Every 15 Minutes 5975-01-387-9672 BUY NE FedMall Updated Every Day 5975-01-387-9672 RQST NE Updated
Every Day 5975-01-387-9672 RQST Updated Every Day 5975-01-387-9672 RQST NE Related Documents 5975-01
Stuffing Tube 5975013879672 013879672,C2334 Topographic Geospatial Products 014052796 Account Upgrade
//www.nsnlookup.com /fsg-76/fsc-7643/us 7643-01-405-2796 Topographic Geospatial Products 014052796 C2334
Stuffing Tube 5975013879672 013879672,C2334 C2334 STUFFING TUBE 2 EA NS Request Quotation Subscribe
C-2334 STUFFING TUBE 1 EA NS Request Quotation C2334 STUFFING TUBE 8 EA NS Request Quotation FedMall
//www.nsnlookup.com /fsg-76/fsc-7643/us 7643-01-405-2796 Topographic Geospatial Products 014052796 C2334
809-2841 Pneumatic Tire Wheel 2530998092841 998092841 Products7643014052796 014052796M648XC2334M648 C2334
Stuffing Tube 5975013879672 013879672,C2334 7643/us 7643-01-405-2796 Topographic Geospatial Products
014052796 C2334 https//www.nsnlookup.com /fsg-25 Welding Electrode 3439003724776003724776003724776HTS
Restrictions 5975-01-387-9672
5975-01-387-9672 is a Stuffing Tube that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5975-01-387-9672
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5975-01-387-9672
- US Navy (N9BG)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- GTJBHD
Approved Sources 5975-01-387-9672
- Part Number
- Manufacturer
- Status
- G576882-6
- Manufacturer
- 3B150 - Raytheon Company (Active)
- Primary Buy
- Primary Buy
- G576882-6
- 54X10 - Raytheon Company (Active)
- Secondary Buy
- Secondary Buy
- G576882-6
- 49956 - Raytheon Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- C2334
- 50619 - R. Kern Engineering & Manufacturing (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5975-01-387-9672
- Characteristic
- Specifications
- FIIG
- Specifications
- A049A0
- Material [MATT]
- Copper Alloy Overall
- Surface Treatment [SFTT]
- Nickel Overall

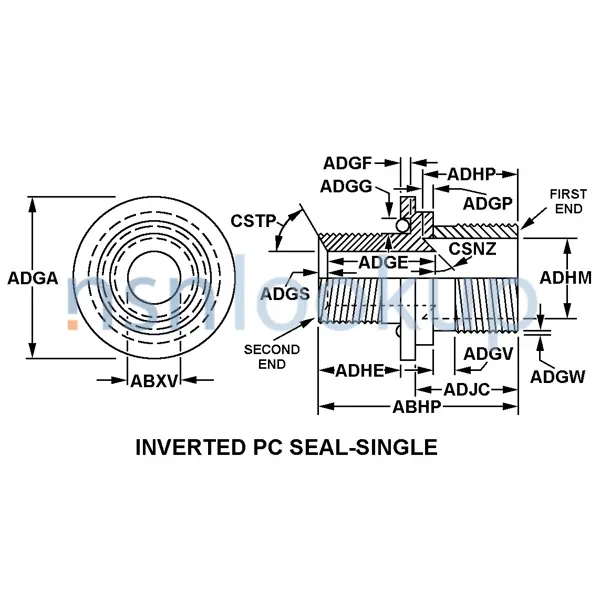

- Style Designator [STYL]
- Inverted Pc Seal-Single
- Overall Length [ABHP]
- 1.688 Inches Nominal
- Bore Diameter [ABXV]
- 2.010 Inches Nominal
- Overall Outside Diameter [ADGA]
- 2.680 Inches Nominal
- Mounting End Length [ADHE]
- 0.438 Inches Nominal
- First Packing Chamber Inside Diameter [ADHM]
- 1.375 Inches Nominal
- Thread Series Designator [THSD]
- Uns
- Nominal Thread Size [CQJX]
- 2.000 Inches First End
- Thread Class [AAJD]
- 2A First End
- Packing Chamber Quantity [ADJG]
- 1
- Mounting Method [AXGY]
- Clamp Assembly
- Furnished Items [ABFF]
- Clamp
Weapon Systems (WSDC) 5975-01-387-9672
DLA Procurement Analysis 5975-01-387-9672
Management Data 5975-01-387-9672
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5975-01-387-9672
Freight Information 5975-01-387-9672
5975-01-387-9672 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5975-01-387-9672 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5975-01-387-9672 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5975-01-387-9672 is not classified as a special type of cargo when transported by water. 5975-01-387-9672 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5975-01-387-9672
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- 2lb to 5lb, all dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 5975-01-387-9672 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
