5975-01-384-2394
Stuffing Tube
5975013842394 013842394 S81910B-05 5223460-3
An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s). View more Stuffing Tube
November 2023
7
Marketplace 5975-01-384-2394
Request a Quotation from participating marketplace vendors
Related Documents 5975-01-384-2394 1+ Documents (More...)
United States (US) 4. 5975-01-384-2394 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5975-01-384-2394 RQST Updated Every Day 5975-01-384-2394 RQST NE Related Documents
Restrictions 5975-01-384-2394
5975-01-384-2394 is a Stuffing Tube that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5975-01-384-2394
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5975-01-384-2394
- US Navy (N9BG)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- HD
- Spain (YB01)
- Effective Date:
- 1 Jun 2003
- Germany (ZG01)
- Effective Date:
- 1 Feb 2012
Approved Sources 5975-01-384-2394
- Part Number
- Manufacturer
- Status
- S81910B-05
- Manufacturer
- 72166 - B.W. Elliott Manufacturing Co., Llc (Active)
- Primary Buy
- Primary Buy
- S81910B-05
- 15285 - Servicair/B W Elliott Mfg Co Llc (Replaced)
- Original Design
- Original Design
- 5223460-3
- 53711 - Naval Sea Systems Command (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5975-01-384-2394
- Characteristic
- Specifications
- FIIG
- Specifications
- A049A0
- Bore Diameter [ABXV]
- 0.940 Inches Nominal
- Furnished Items [ABFF]
- Compression Nut And O-Ring And Retainer
- Material Document And Classification [MDCL]
- Qq-B-626 Fed Spec Single Material Response Overall
- Material [MATT]
- Copper Alloy Overall
- Mounting Method [AXGY]
- Compression
- Overall Length [ABHP]
- 1.250 Inches Nominal
- Packing Chamber Quantity [ADJG]
- 1

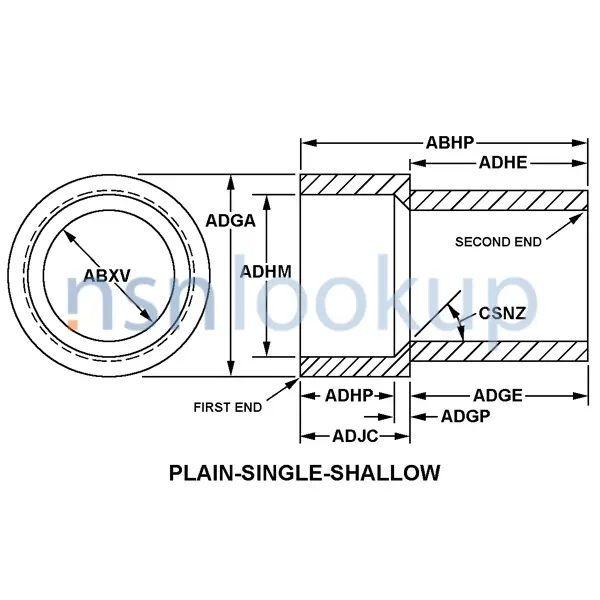

- Style Designator [STYL]
- Plain-Single-Shallow
- Surface Treatment [SFTT]
- Cadmium Overall
Weapon Systems (WSDC) 5975-01-384-2394
DLA Procurement Analysis 5975-01-384-2394
- Last Stock Position:
- 1 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5975-01-384-2394
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5975-01-384-2394
Freight Information 5975-01-384-2394
5975-01-384-2394 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061680. A Sub NMFC of Z. It has a NMFC Description of ELEC WIRING PLUGS ETC. 5975-01-384-2394 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34570 which rates the freight between FCL and LCL. 5975-01-384-2394 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5975-01-384-2394 is not classified as a special type of cargo when transported by water. 5975-01-384-2394 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5975-01-384-2394
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 5975-01-384-2394 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
